12×11 Small House Plan 3 Bedrooms 40×36 Feet Flat Roof

Original price was: $29.99.Current price is: $9.99.

Buy this: 12×11 Small House Plan 3 Bedrooms 40×36 Feet Flat Roof
-PDF Layout Detailing floor plan with dimension

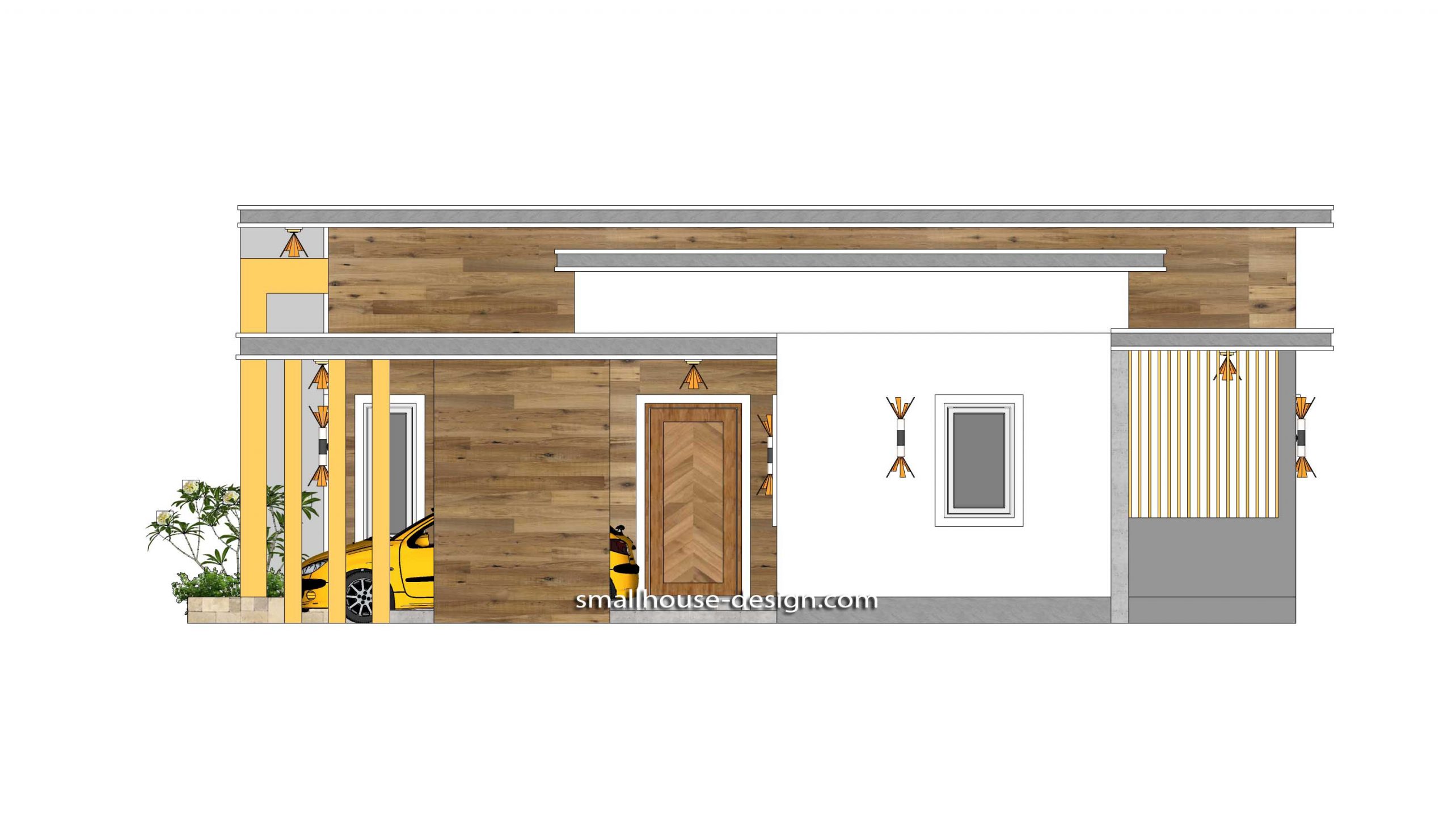

-PDF Front, Back, Left, and Right Elevation Plan with dimension. Section
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2018 and Sketchup 2019



SKU: 2047711065568 Categories: , Tag:

Description

12×11 Small House Plan 3 Bedrooms 40×36 Feet Flat Roof. This villa is modeling by SAM-ARCHITECT With 1 stories level. It’s has 3 bedrooms. Est. Price around 40-45k usd construction only, furniture not include.

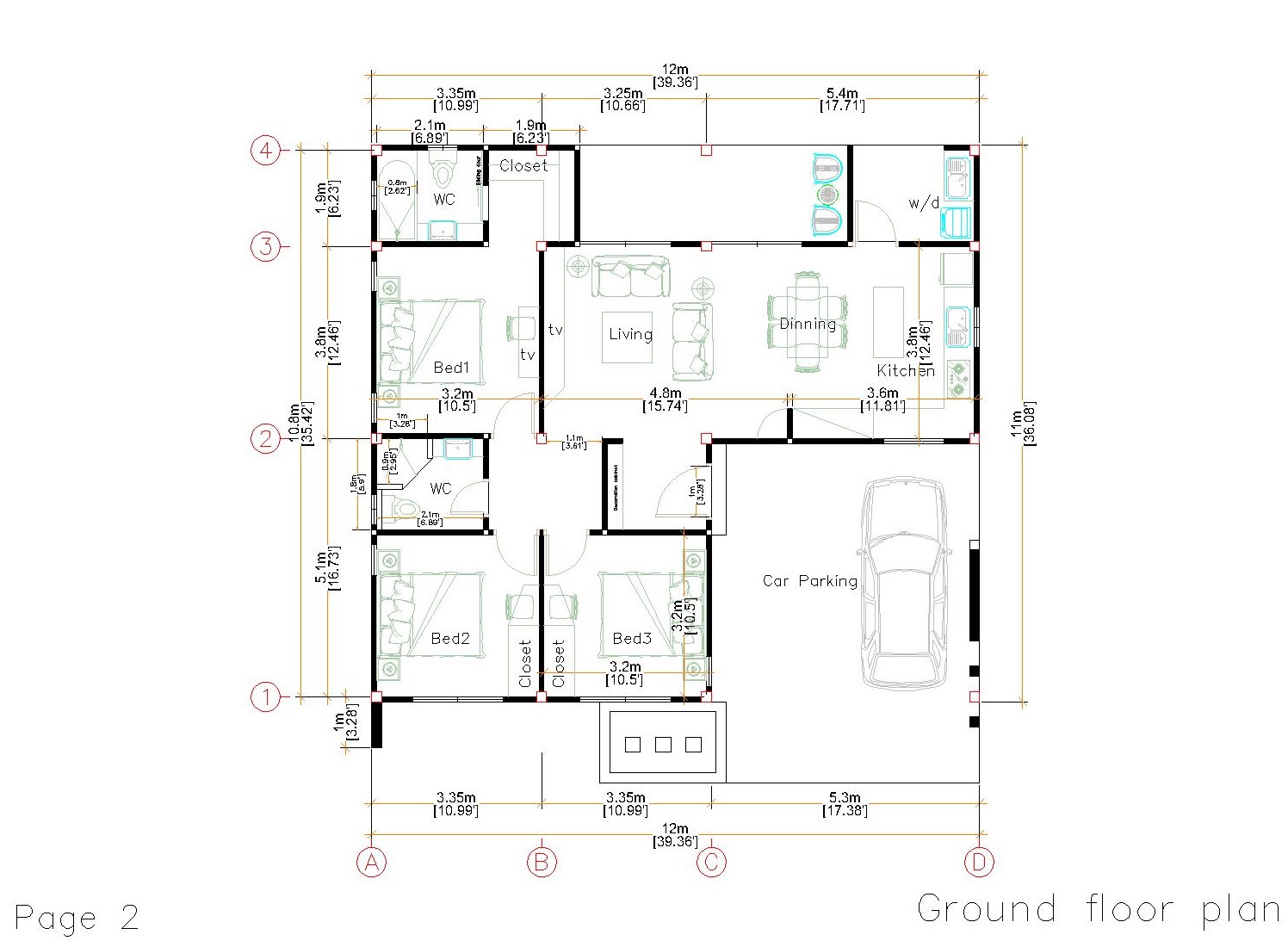

12×11 Small House Plan Ground Floor Plans Has:

Firstly,  2 cars Parking is at the right side of the house 5.3×5.1 meters. A nice entrance in front of the car parking. When we are going from front door, a small Living 4.8×3.8 meter is very perfect for this house it is nice and modern. Brightly Kitchen with dining table 3.6×3.8 meter, it is clean and beautiful. A multi Bathroom size 1.6×2.1 meters. The washing machine is near the kitchen 1.9×2.4 meters.

The Master Bedroom size is 3.2×3.8 meters, it has 2 glasses window near the bed head, Makeup desk and walk in closet 1.9×1.9 meter, attached with bathroom 2.1×1.9 meter. Bedroom 2 size 3.3×3.2 meters, bedroom 3 size 3.3×3.2 meters.

Exterior 12×11 Small House Plan:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

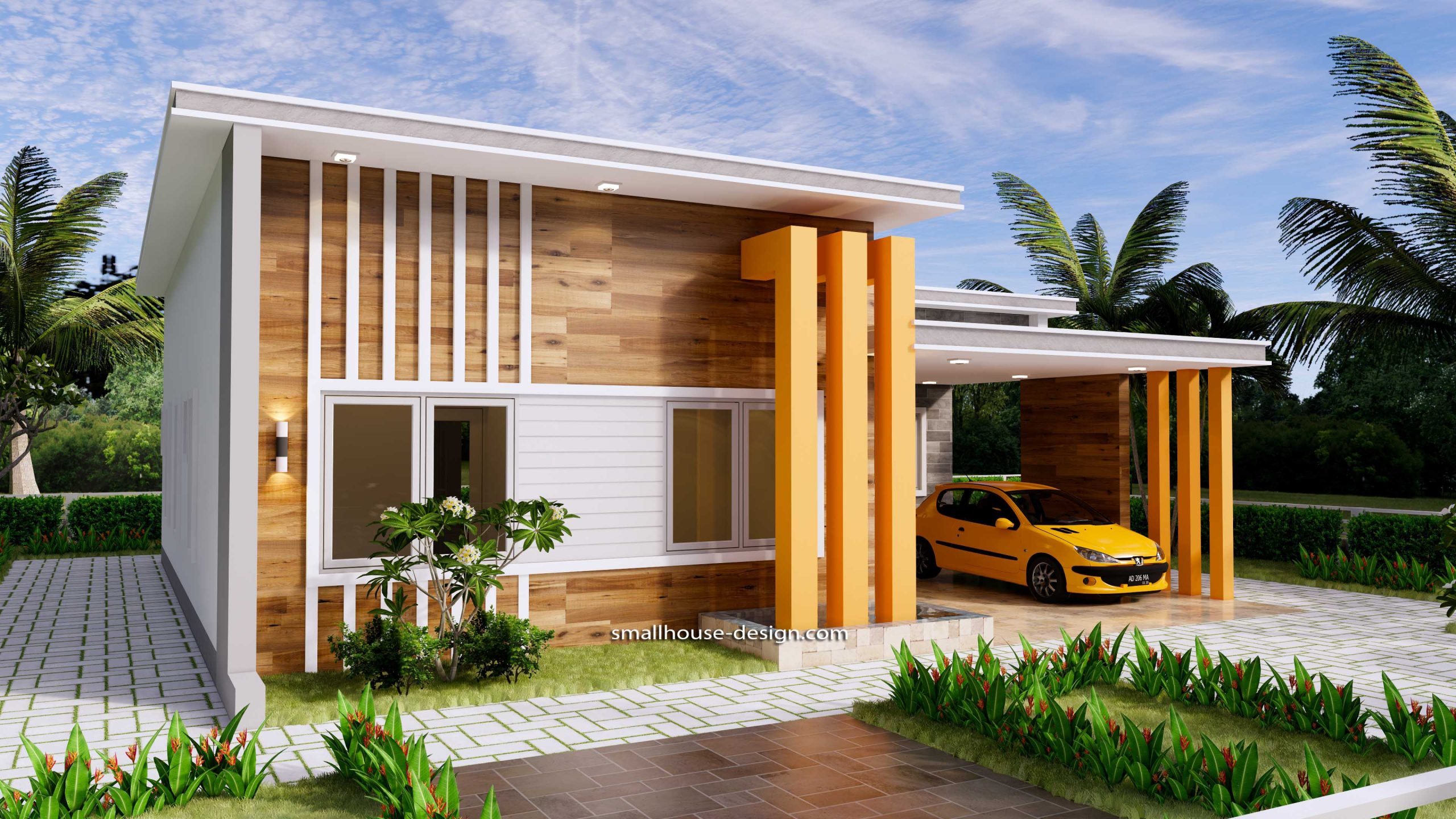

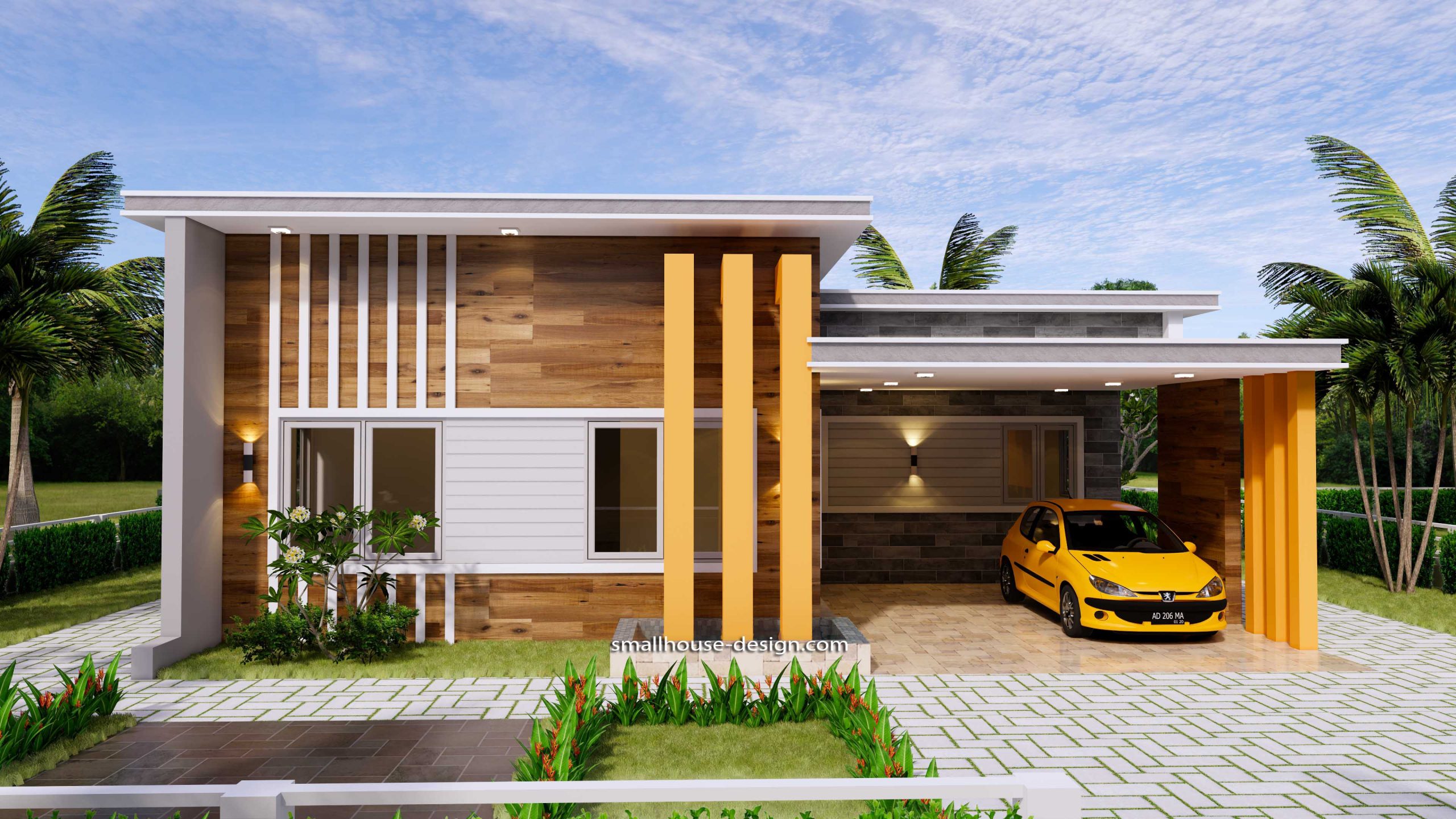

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof front view

The Terrace Roof Tile:

Finally, The Terrace roof type is made from cement that cover above Gypsum board ceiling . It is make the house look simple and modern.

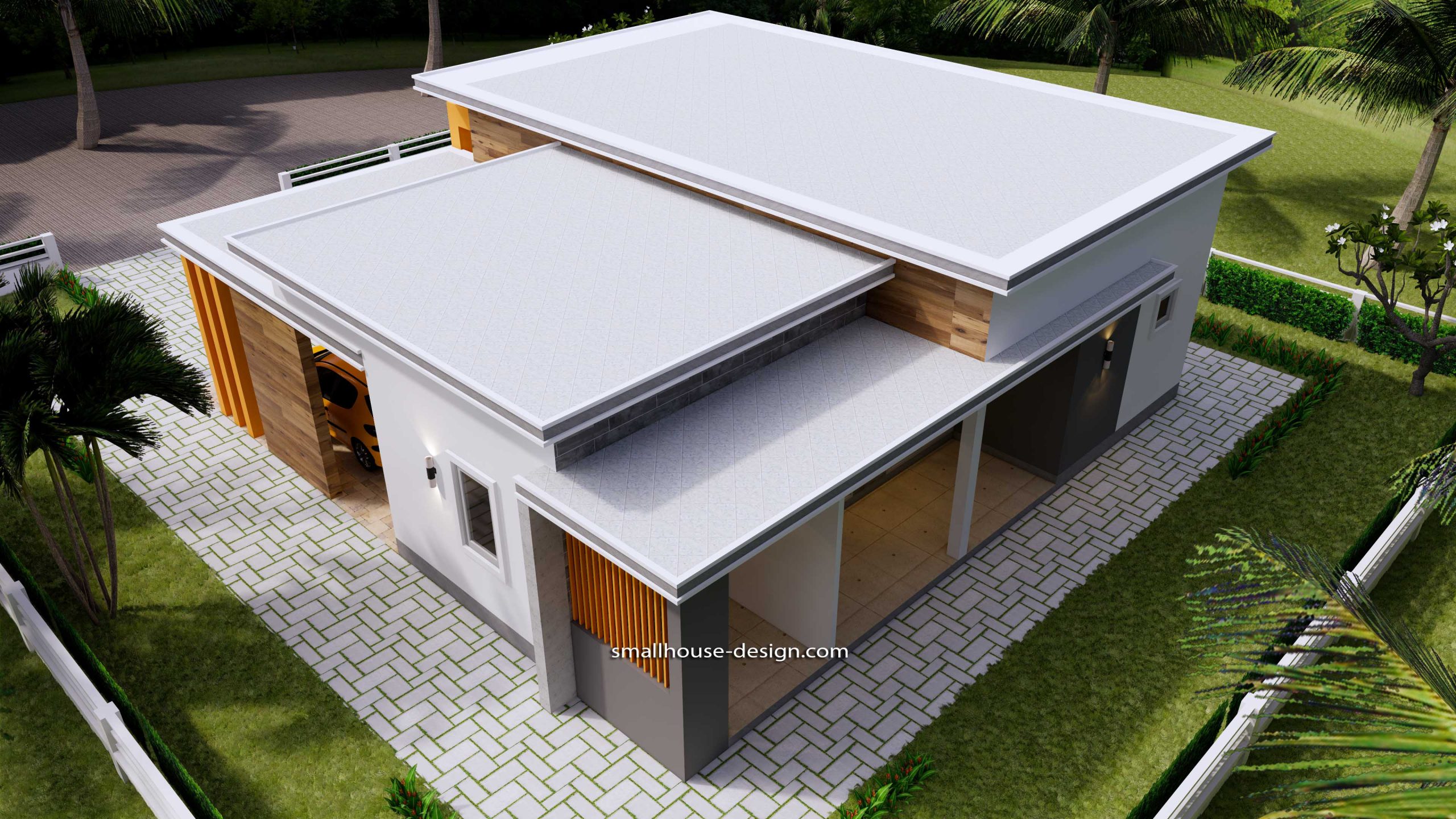

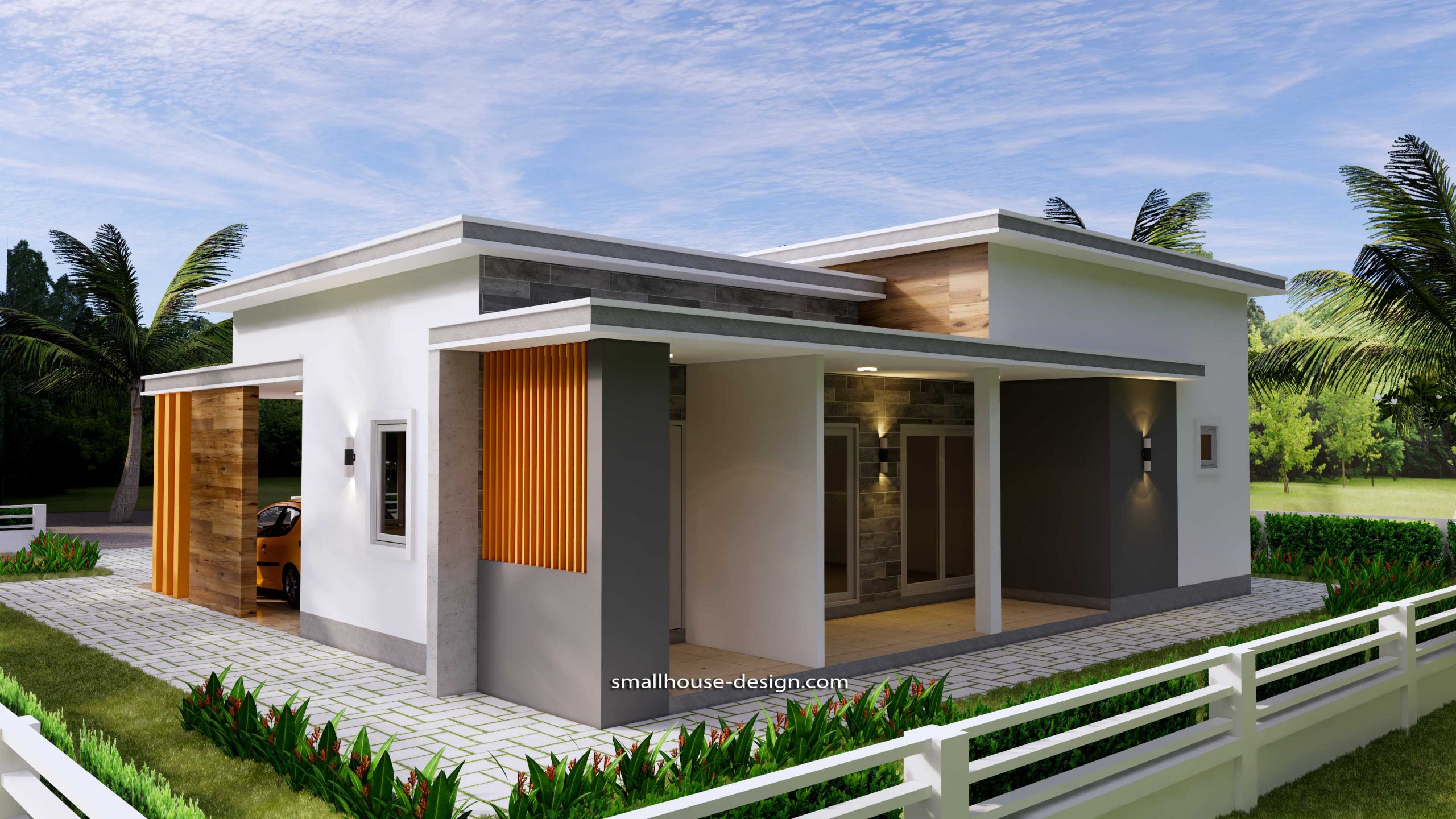

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof 2

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

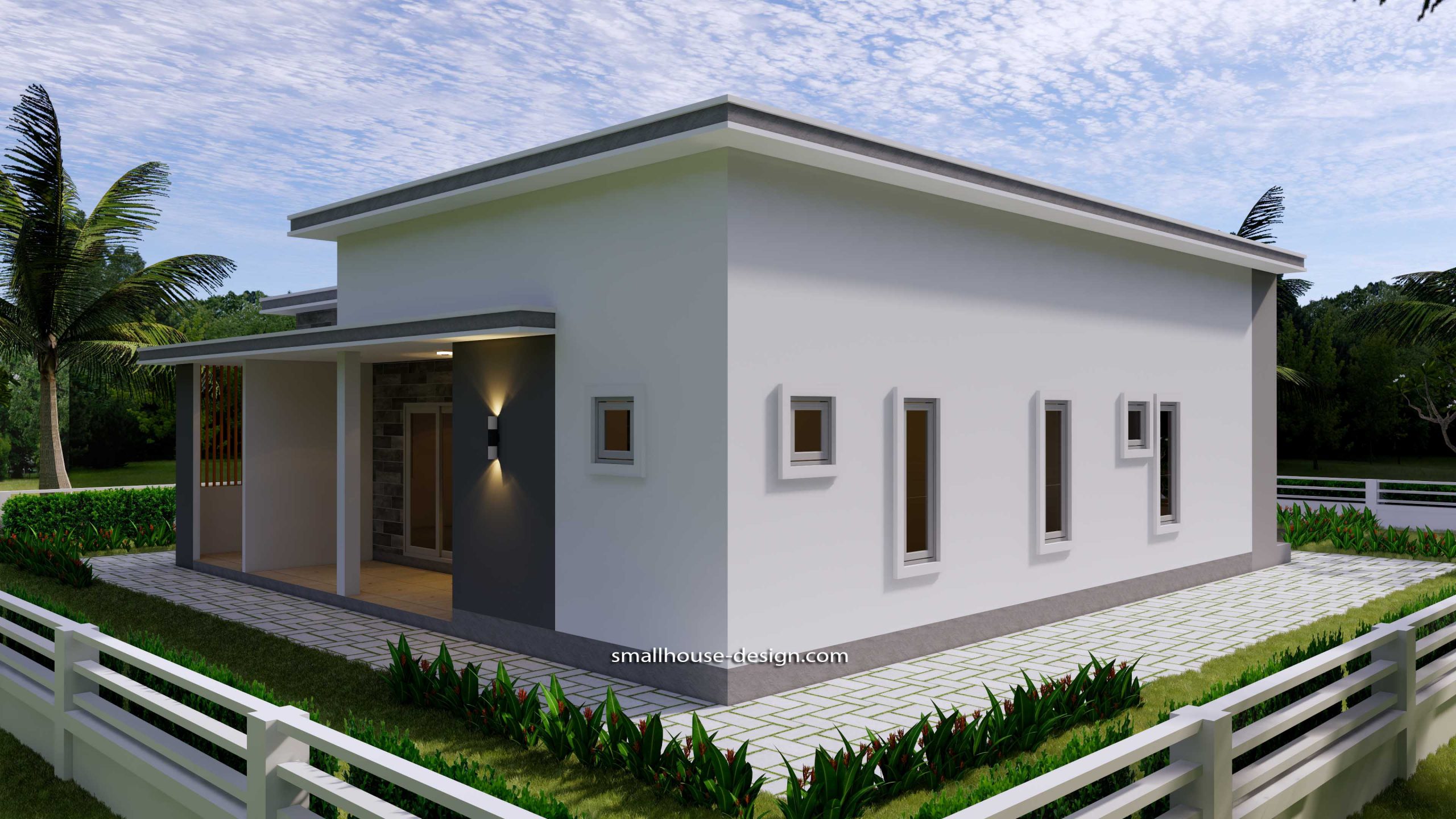

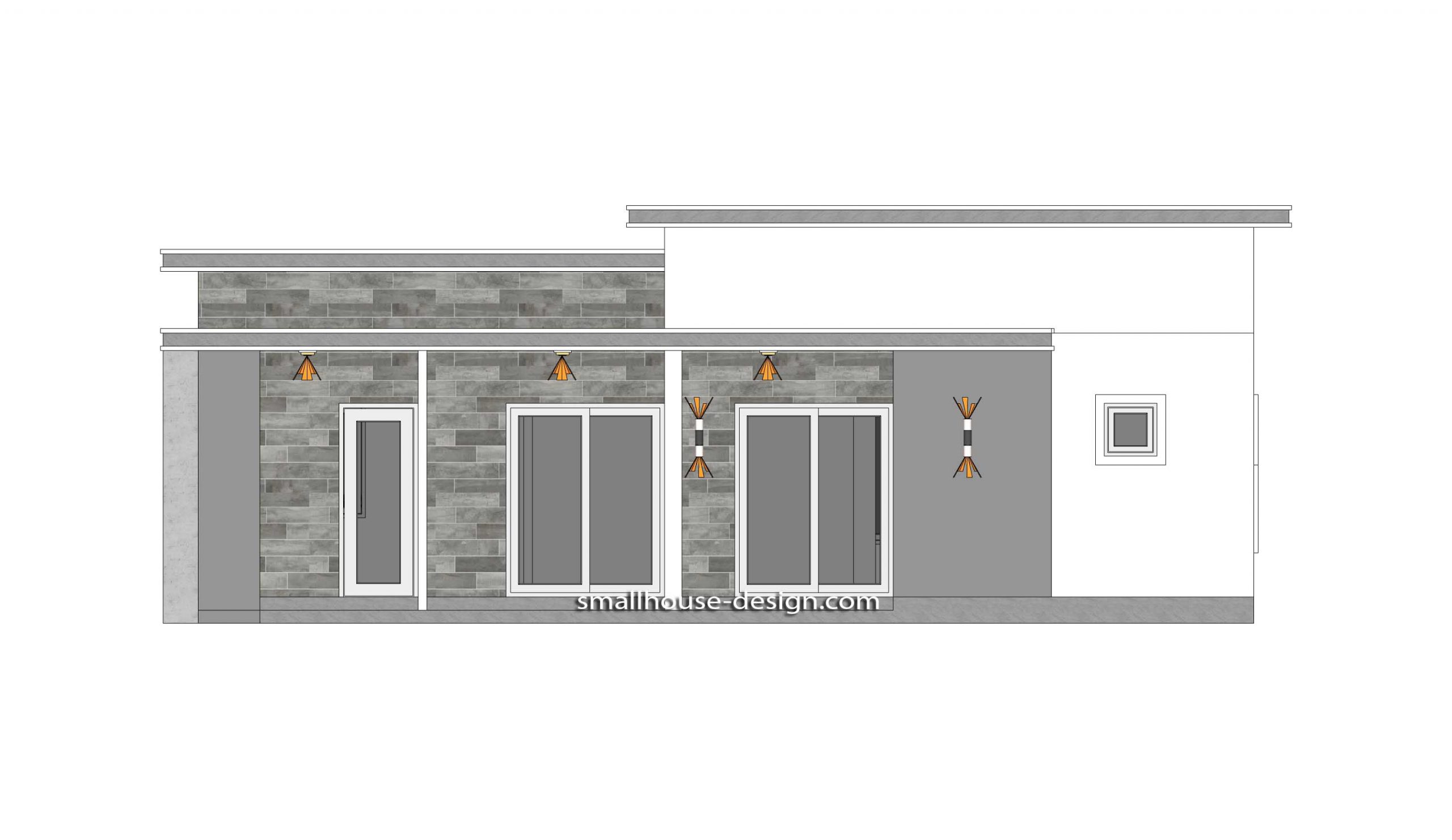

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof back

House Short Description:

Ground floor:
-Car Park is out side of the house
-Living room
-Kitchen and Dinning
-Storage and washing room
-3 Bedrooms
-2 bathrooms

First floor:
-Concrete Roof

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

The 3D Bird View:

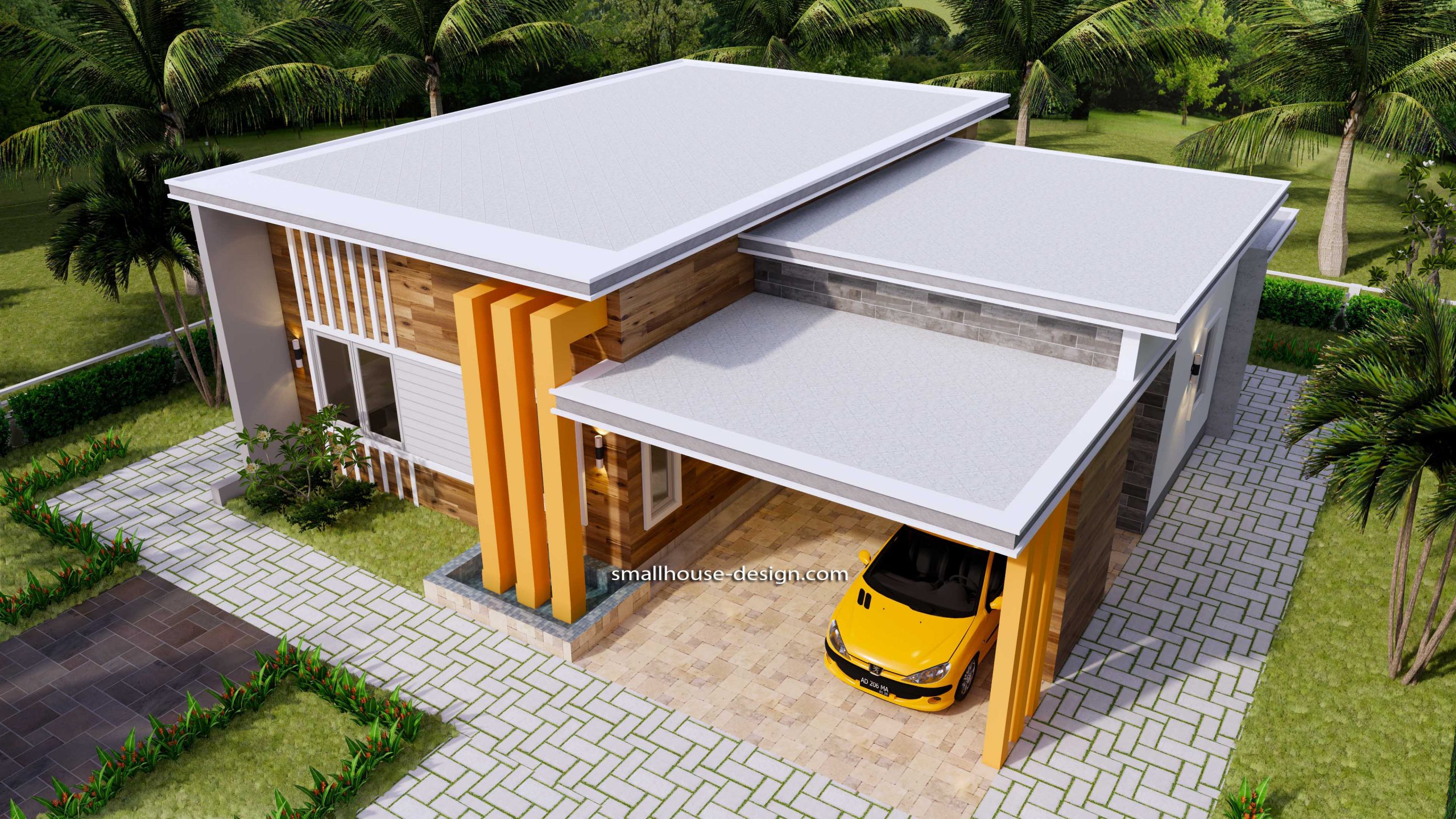

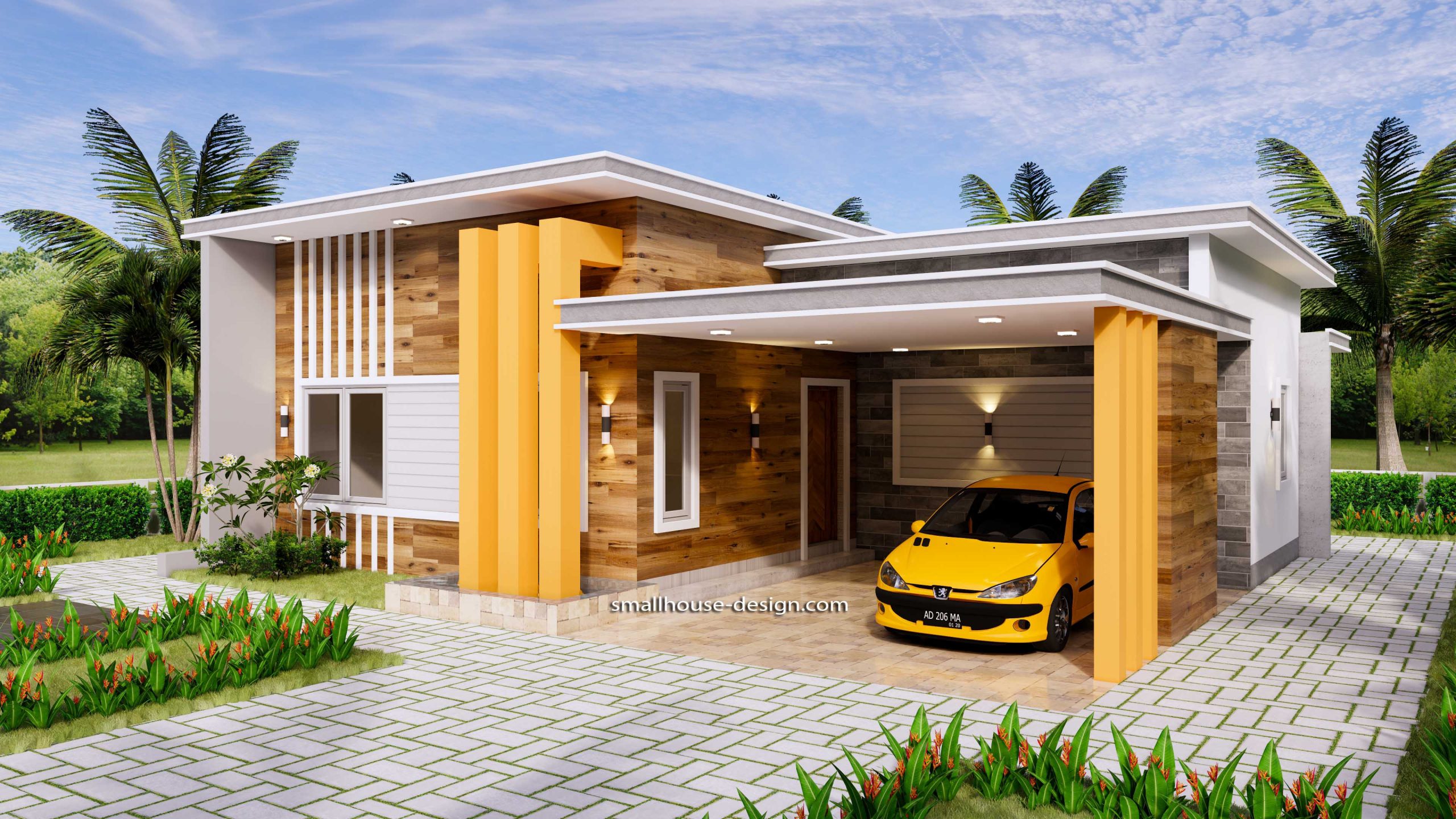

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof front 3d

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof front view

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof back

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof 2

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.

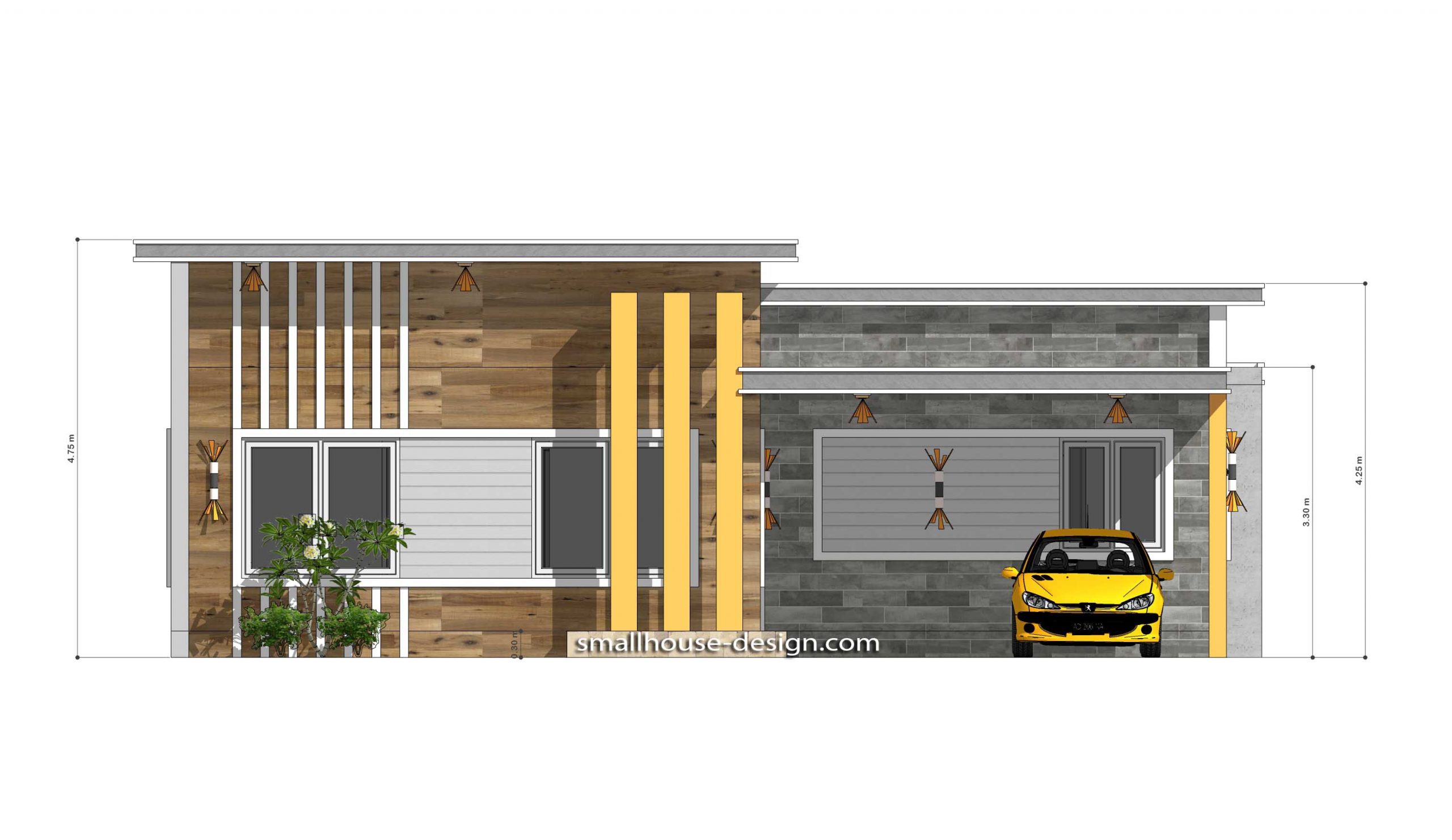

The Elevation 3d:

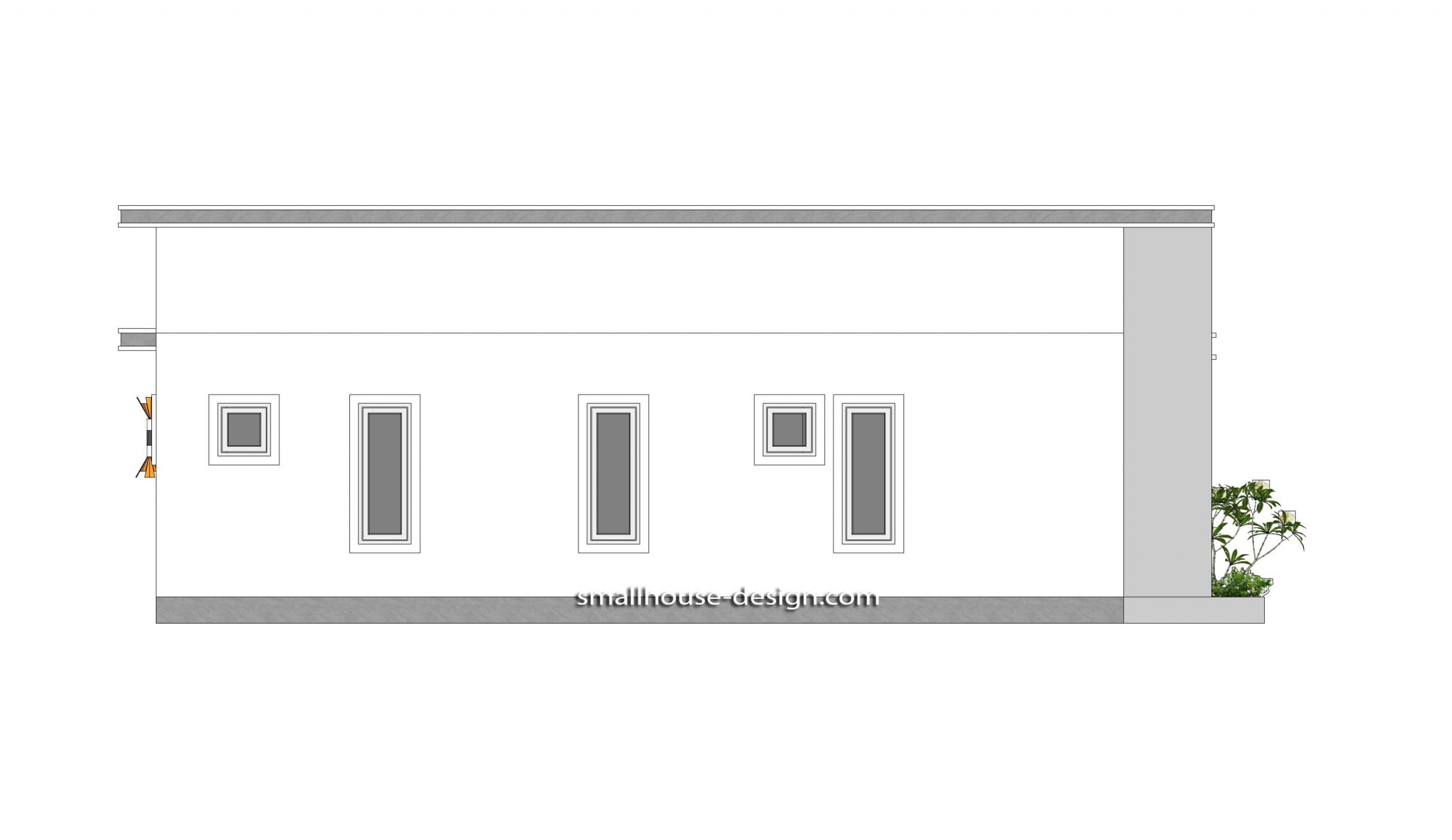

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof 2 Right

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof 2 Left

The PDF Layout Plans:

12x11 Small House Plan 3 Bedrooms 40x36 Feet Flat Roof all layout plan

Buy this house plan:

This is a PDF Plan available for Instant Download.

3-Bedrooms 2-Baths home with mini washer/dryer room.

Building size: 40 feet wide, 36 feet deep. 12×11 meter 1 floor

Roof Type: Terrace roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

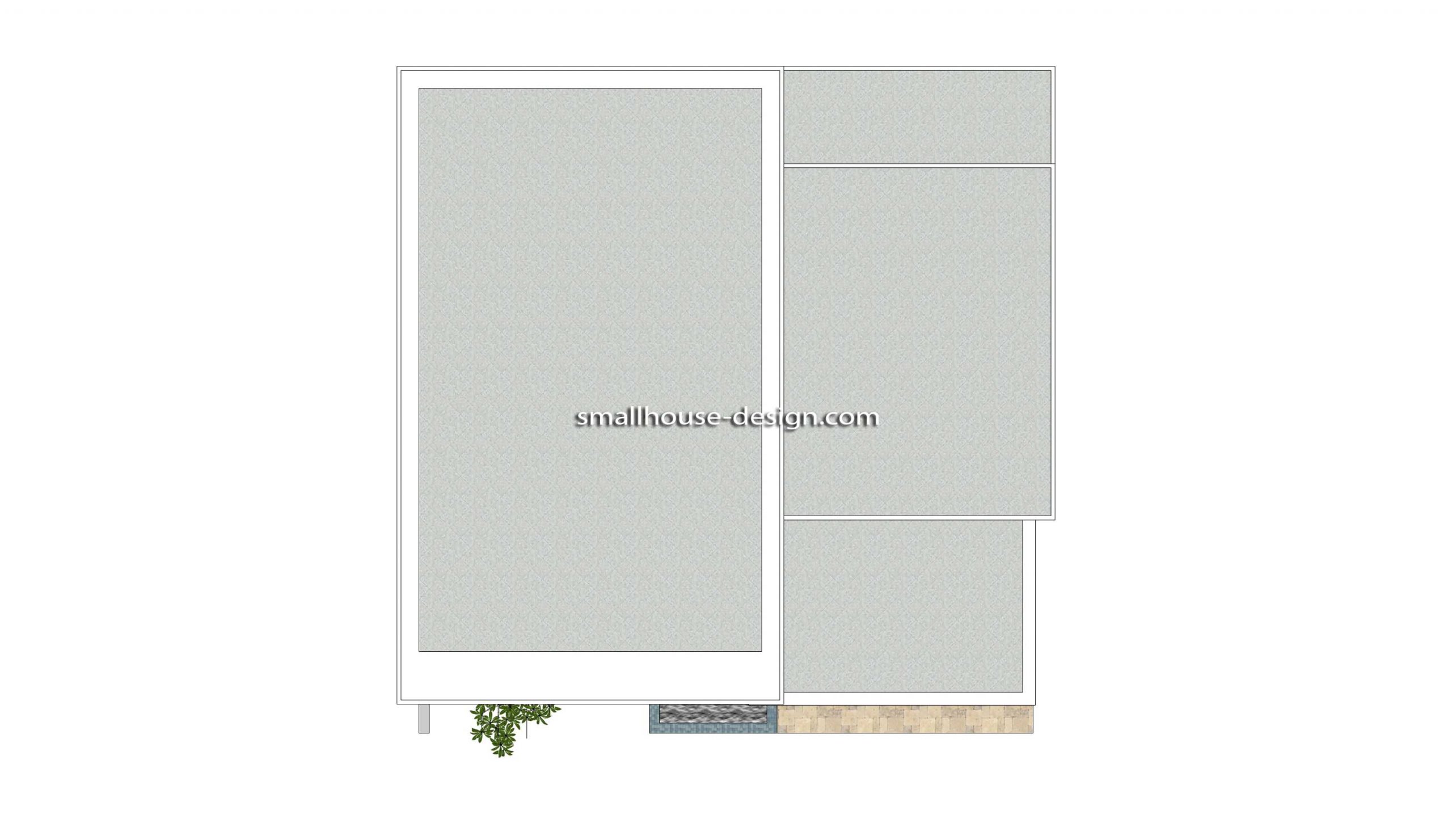

Roof Plan

Elevations plans

Cross Section plans

Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
