30×36 House Design Plan 5 Beds 3 Baths

Original price was: $29.99.Current price is: $9.99.

Buy this: 30×36 House Design Plan 5 Beds 3 Baths
-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension. 4 Sections
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2018 and Sketchup 2019



SKU: 2056615695337 Categories: , Tag:

Description

30×36 House Design Plan 5 Beds 3 Baths 9×11 Meter PDF Full Plans. This villa is modeling with 2 stories level. It’s has 5 bedrooms. Est. Price around 50-60k usd construction only, furniture not include.

30×36 House Design Plan Ground Floor Plans Has:

If you looking for 5 Bedrooms house plan. You will love this layout plan. With this lovely house plan, 2 Cars Parking is at the right side of the house 5×5 meter. A nice 2 steps entrance 1.5×4 meter,  a Living area of 3.5×4 meter is very perfect for this house, along with dining area 3.5×4 meter. Brightly Kitchen area 2.5×4 meter, it is clean and beautiful. A multi Bathroom size 1.8×2.4 meters. The washing machine is in the kitchen. Store is under the stair.

The Master Bedroom size is 3.5×4.5 meters with a King size bed, Makeup desk and closet, it has a big sliding door to the balcony 1.5×4 meter, attached bath 2.1×2.4 meter. Bedroom 2 size is 3.5×4.5 meter, Bedroom 3 size is 3.7×4.5 meter, Bedroom 4 and 5 size is 3×3.7 meter. A multi Bathroom size 1.8×2.4 meters.

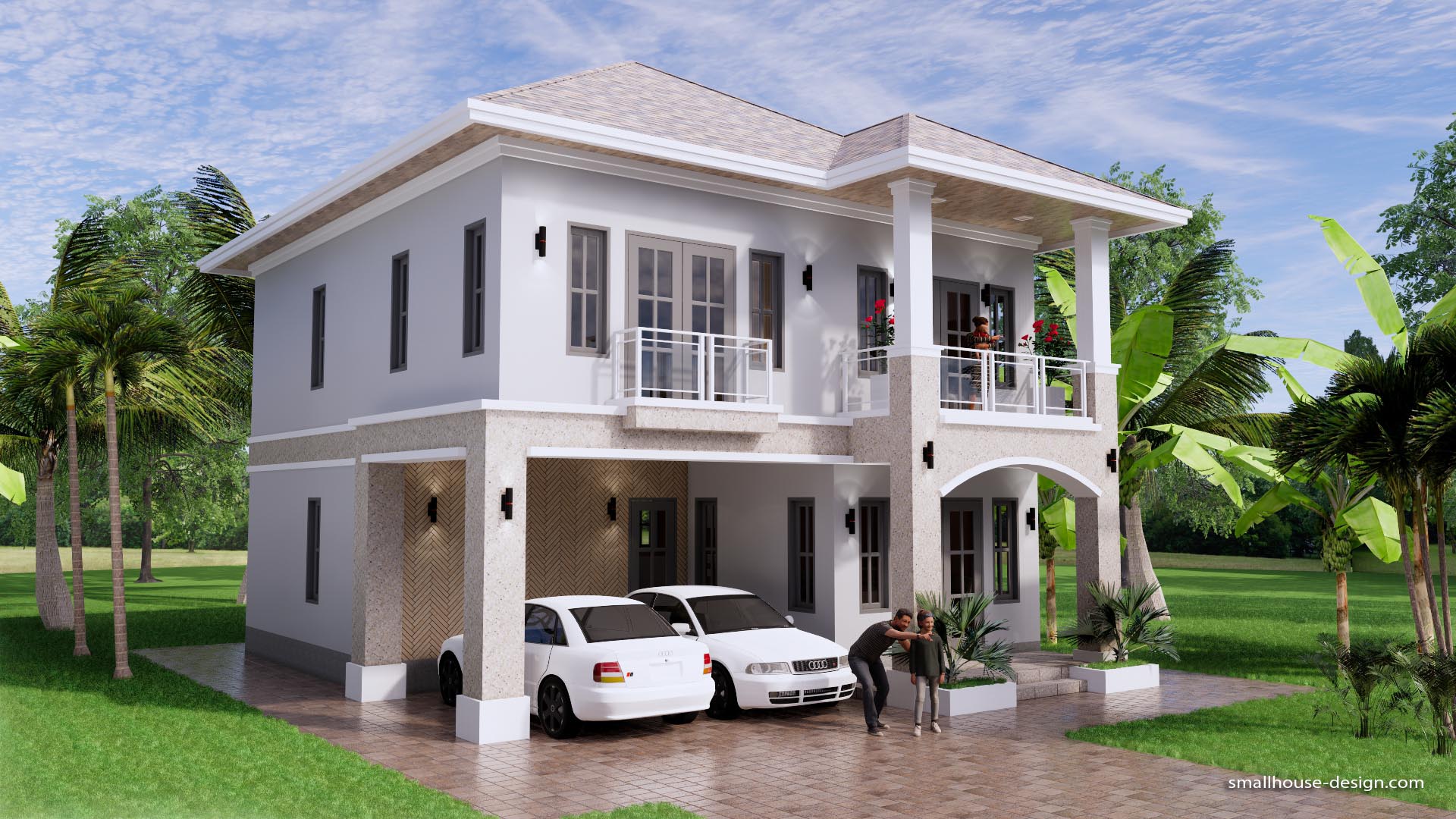

Exterior 30×36 House Design Plan:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Hip Roof Tile:

Finally, The Hip roof type is made from zine roof tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

House Short Description:

Ground floor:
-2 Cars Park is at the left side of the house
-Living room, Family room
-Kitchen and Dinning
-Storage
-Public bathroom
-1 Bedroom

First floor:
-3 Bedrooms
-2 Bathrooms
-Balcony

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

The 3D Bird View:

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.



The Elevation 3d:

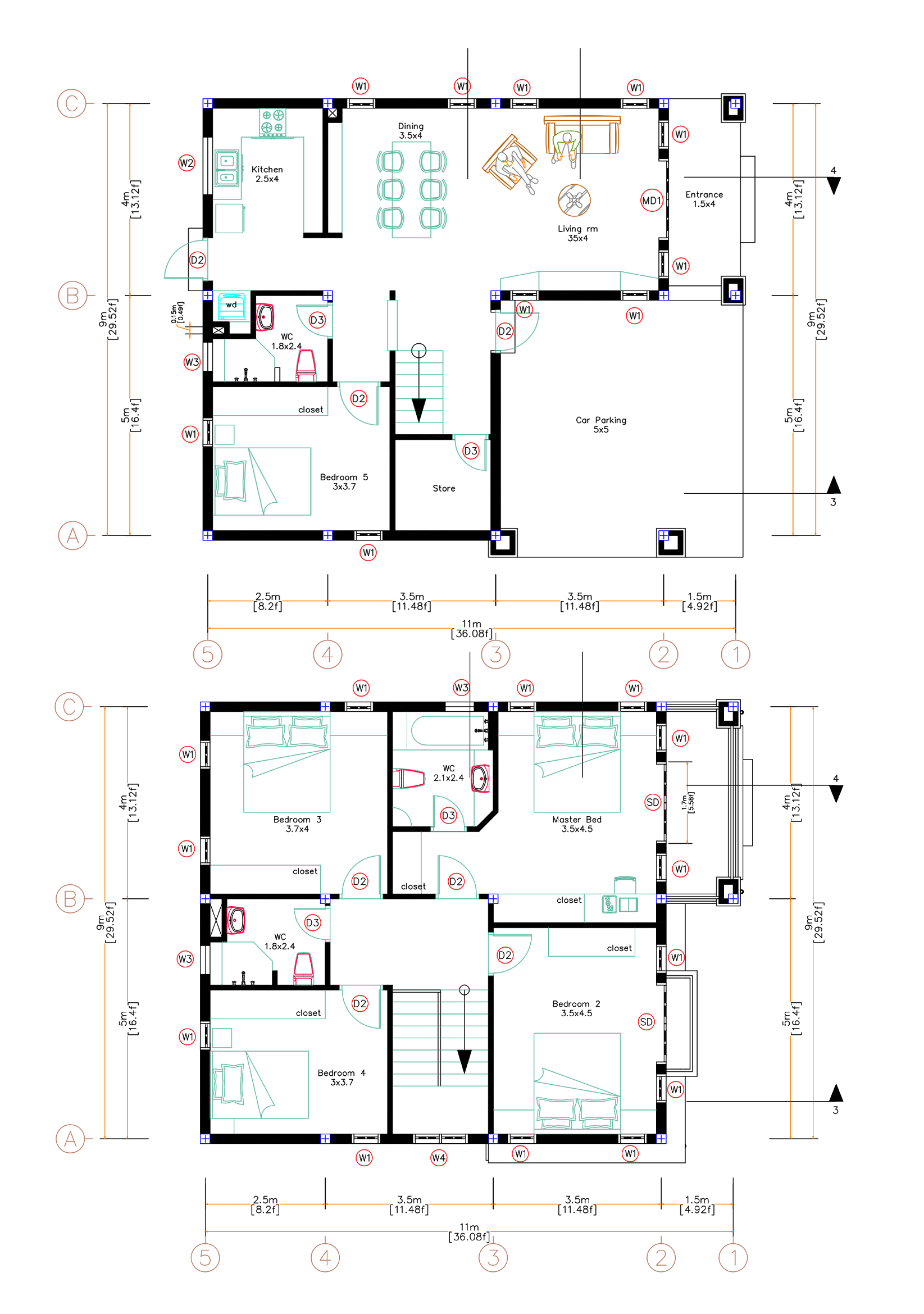

The PDF Layout Plans:

30x36 House Design Plan 5 Beds 3 Baths PDF Plan all

Buy this house plan:

This is a PDF Plan available for Instant Download.

5-Bedrooms 3-Baths home with mini washer/dryer room.

Building size: 30 feet wide, 36 feet deep. 9×11 meter 2 floor

Roof Type: Hip roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

Cross Section plans

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
