House Plans 7x7m One Bedroom Full Plans 3d

Original price was: $19.99.Current price is: $9.99.

Buy this: House Plans 7x7m One Bedrooms Full Plans 3d
-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension. 2 Sections
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2018 and Sketchup 2019



SKU: 2061236080745 Categories: , , Tag:

Description

House Plans 7x7m One Bedroom Full Plans 3d 23X23 Feet. This villa is modeling by SAM-ARCHITECT With 1 stories level. It’s has 1 bedroom. Est. Price around 11-15k usd construction only, furniture not include.

House Plans 7x7m Ground Floor Plans Has:

Firstly,  car Parking is at the Out side of the house. A nice Terrace entrance in front of the house 2×1 meters. When we are going from front door, a small Living room 4.5×3.5 meter is very perfect for this house it is nice and modern. Brightly Kitchen with dining 3.5×3.5 meter, it is clean and beautiful. A multi Bathroom size 2×2.5 meters. The washing machine 2.5×1 meters.

The Master Bedroom size is 3.5×3.5 meters, it have a big glass window with a queen size bed, Makeup desk and closet.

Exterior House Plans 7x7m:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

House Plans 7x7m One Bedrooms Full Plans 3d 2



The Gable Roof Tile:

Finally, The Gable roof type is made from cement tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

House Plans 7x7m One Bedrooms Full Plans 3d 5



The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

House Plans 7x7m One Bedrooms Full Plans 3d 7

House Short Description:

Ground floor:
-Car Park is out side of the house
-Living room
-Kitchen and Dinning
-Storage

-Master Bedroom

-Public bathroom

First floor:
Roof tiles

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

The 3D Bird View:

House Plans 7x7m One Bedrooms Full Plans 3d 2

House Plans 7x7m One Bedrooms Full Plans 3d 7

House Plans 7x7m One Bedrooms Full Plans 3d 5

House Plans 7x7m One Bedrooms Full Plans 3d 4

House Plans 7x7m One Bedrooms Full Plans 3d 6

House Plans 7x7m One Bedrooms Full Plans 3d 9

House Plans 7x7m One Bedrooms Full Plans 3d 10

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.



The Elevation 3d:

The PDF Layout Plans:

House Plans 7x7m One Bedrooms Full Plans 3d Footing plan

Footing beam column layout plan

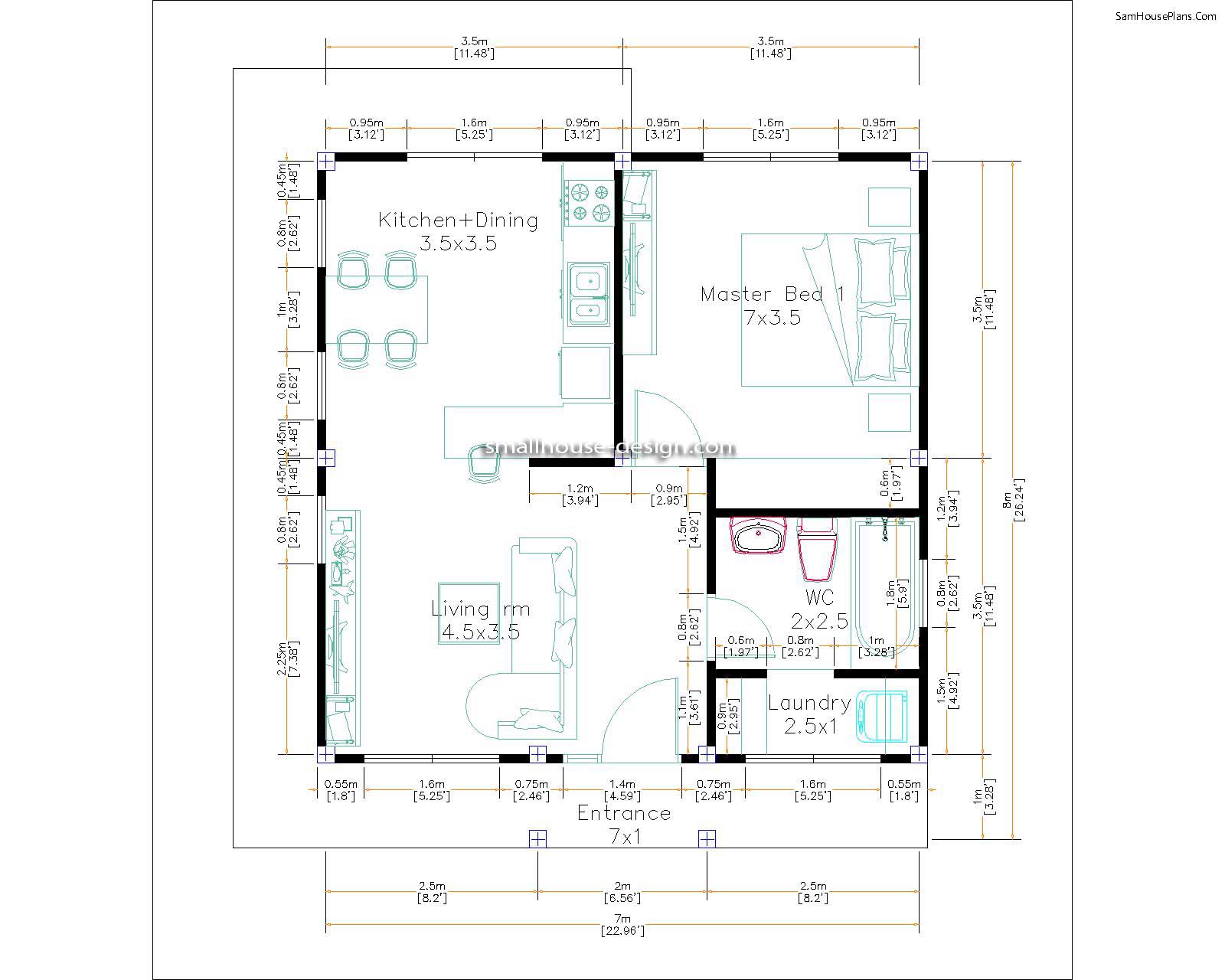

House Plans 7x7m One Bedrooms Full Plans Layout Floor plan

Buy this house plan:

This is a PDF Plan available for Instant Download.

1-Bedroom 1-Bath home with mini washer/dryer room.

Building size: 23 feet wide, 23 feet deep. 7×7 meter 1 floor

Roof Type: Gable roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

Cross Section plans

Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
