House Plans Plot 10×20 Meter with Swimming Pool

Original price was: $29.99.Current price is: $9.99.

Buy this: House Plans Plot 10×20
-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension. Section
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2018 and Sketchup 2019



SKU: 2044877822714 Categories: , Tag:

Description

House Plans Plot 10×20 Meter with Swimming Pool 3 Beds PDF Plan Terrace Roof. This villa is modeling by SAM-ARCHITECT With 1 stories level. It’s has 3 bedrooms with 3 Bathrooms. Est. Price around 30-40k usd construction only, furniture not include.

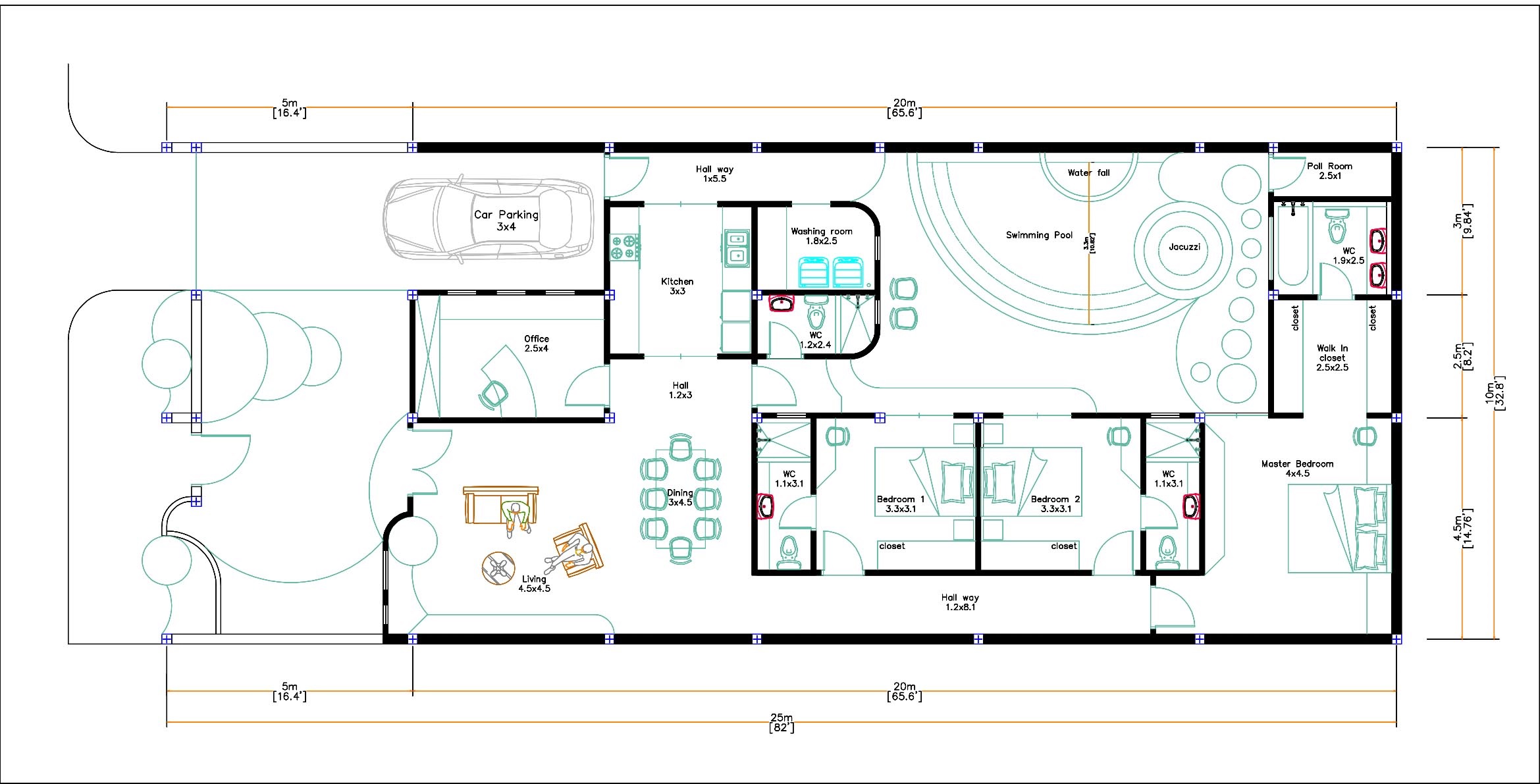

House Plans Plot 10×20 Ground Floor Plans Has:

If you have land site 10×20 meter, this house layout plan is perfect for you. The house has: One Car Parking is at the left side of the house 3×4 meter. A nice Terrace entrance with garden in front of the house. When we are going from front door,  a Living area of 4.5×4.5 meter is very perfect for this house it is nice and modern, along with dining area 3×4.5 meter. Brightly Kitchen area 3×3 meter, it is clean and beautiful. A multi Bathroom size 1.2×2.4 meters can access from Swimming pool area. The washing Room 1.8×2.5 meters. Pool machine room 2.5×1 meter.

Nice Master Bedroom size is 4×4.5 meters, it has a sliding door to the pool, with a queen size bed, Makeup desk and walk in closet 2.5×2.5 meter, attached with bathroom 1.9×2.5 meter. Bedroom 1 size 3.3×3.1 meter attached with bathroom 1.1×3.1 meter, and Bedroom 2 size 3.3×3.1 meters attached with bathroom 1.1×3.1 meter.

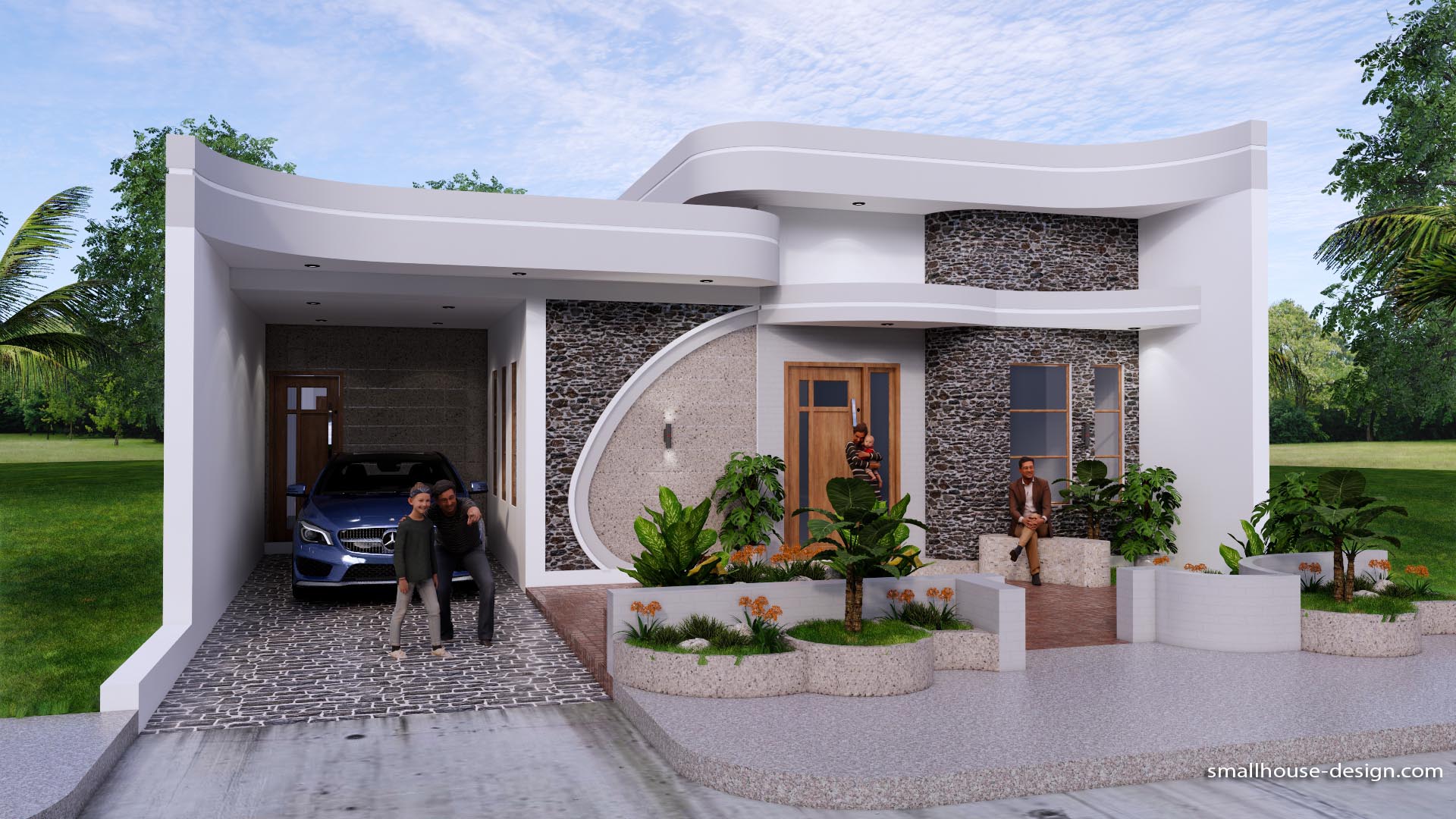

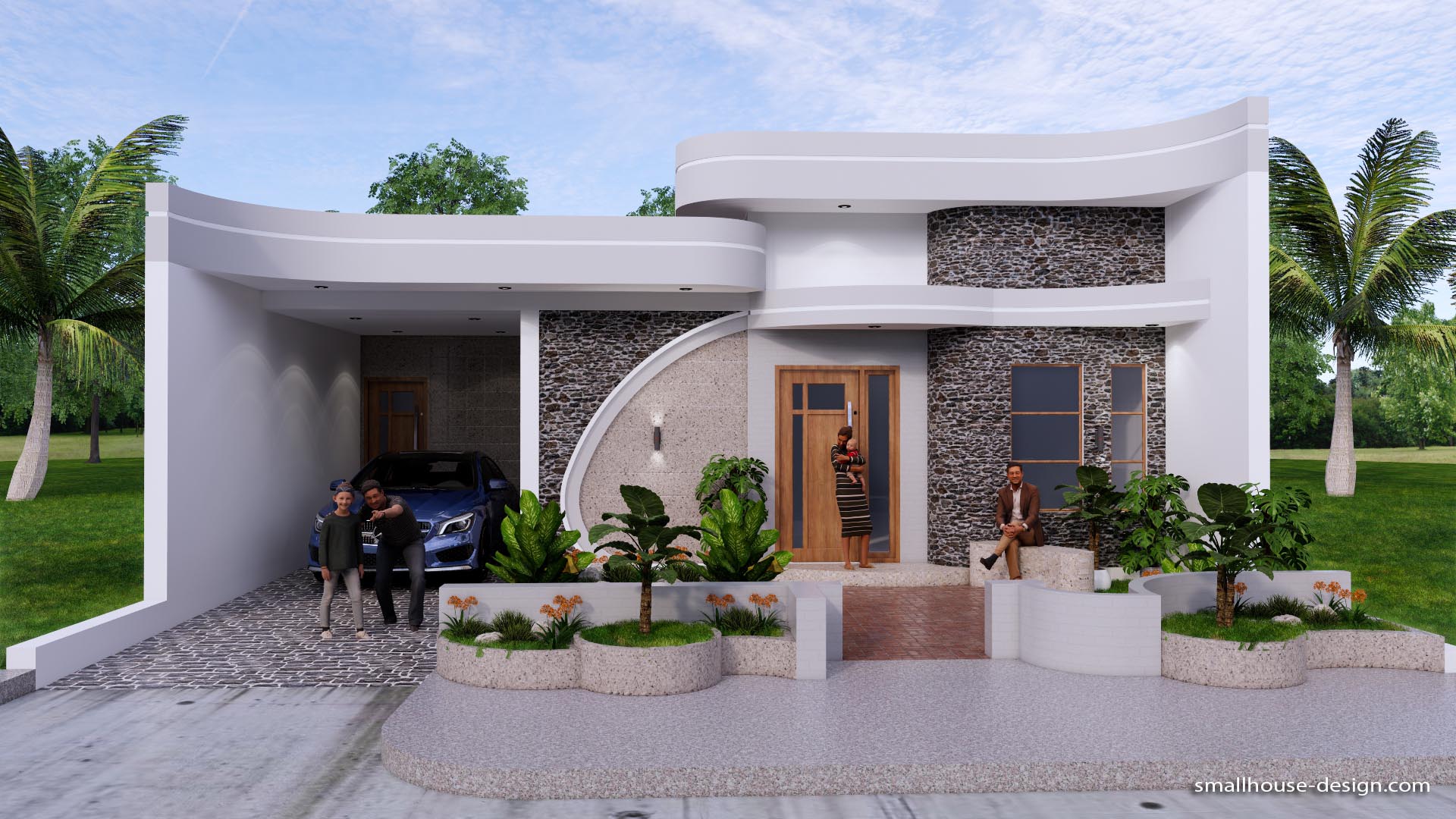

Exterior House Plans Plot 10×20:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

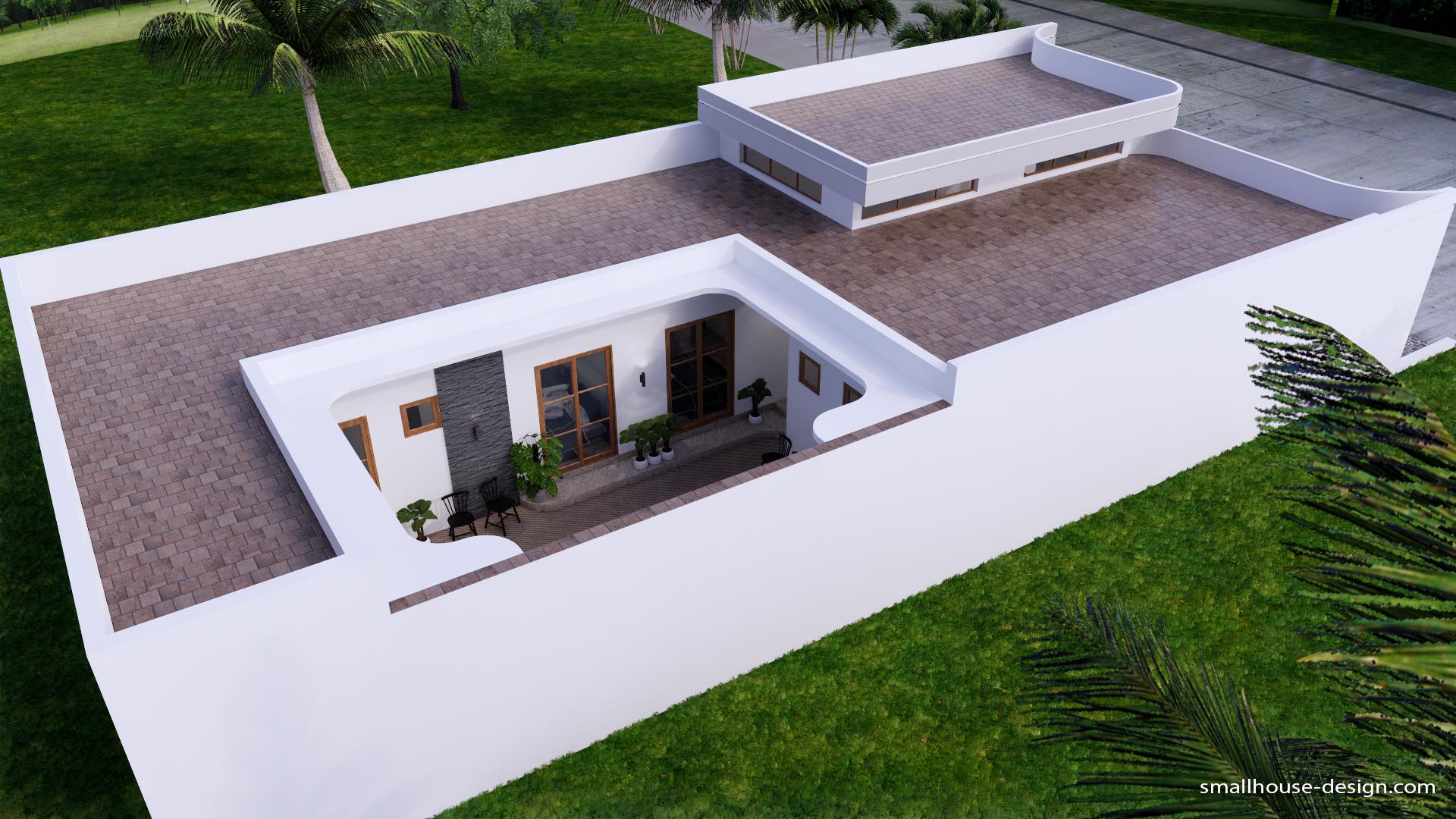

The Roof Tile:

Finally, The Terrace roof type is made from cement concrete that cover above Gypsum board ceiling . It is make the house look simple and modern.

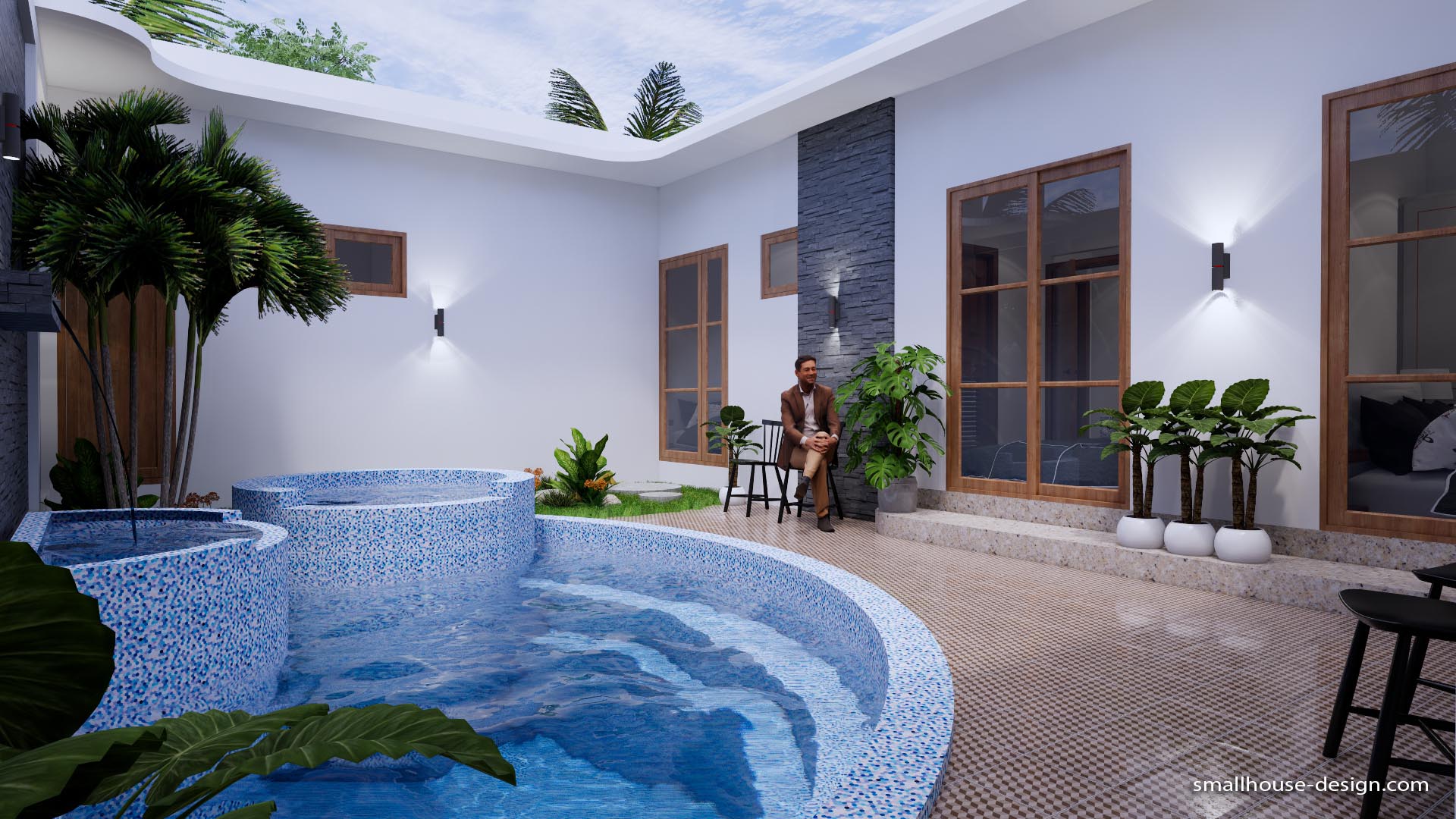

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

House Short Description:

Ground floor:
-Car Park is out side of the house
-Living room
-Kitchen and Dinning
-Storage
-Small Swimming Pool
-3 Bedrooms
-4 bathrooms

First floor:
Concrete roof slap

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

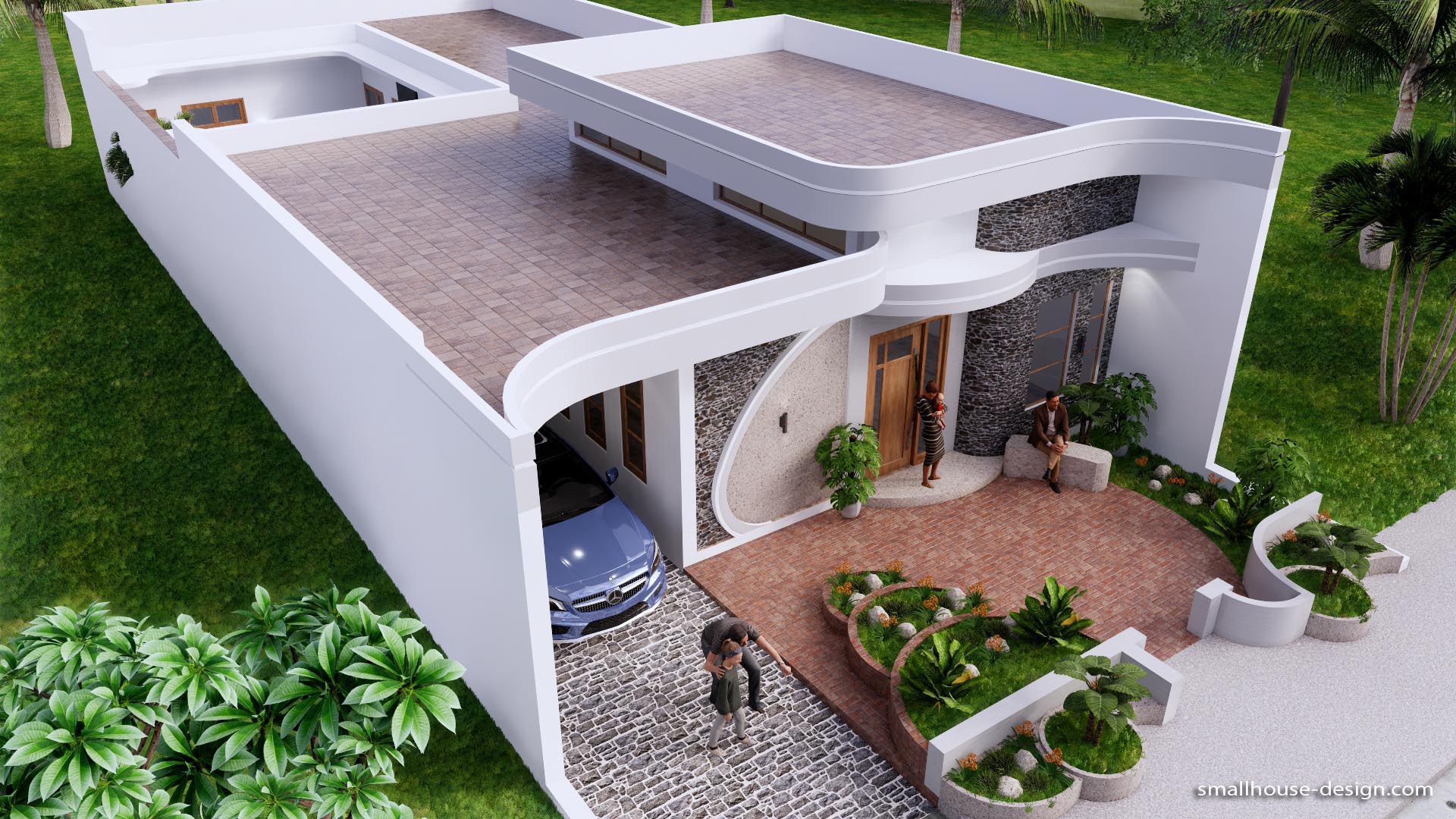

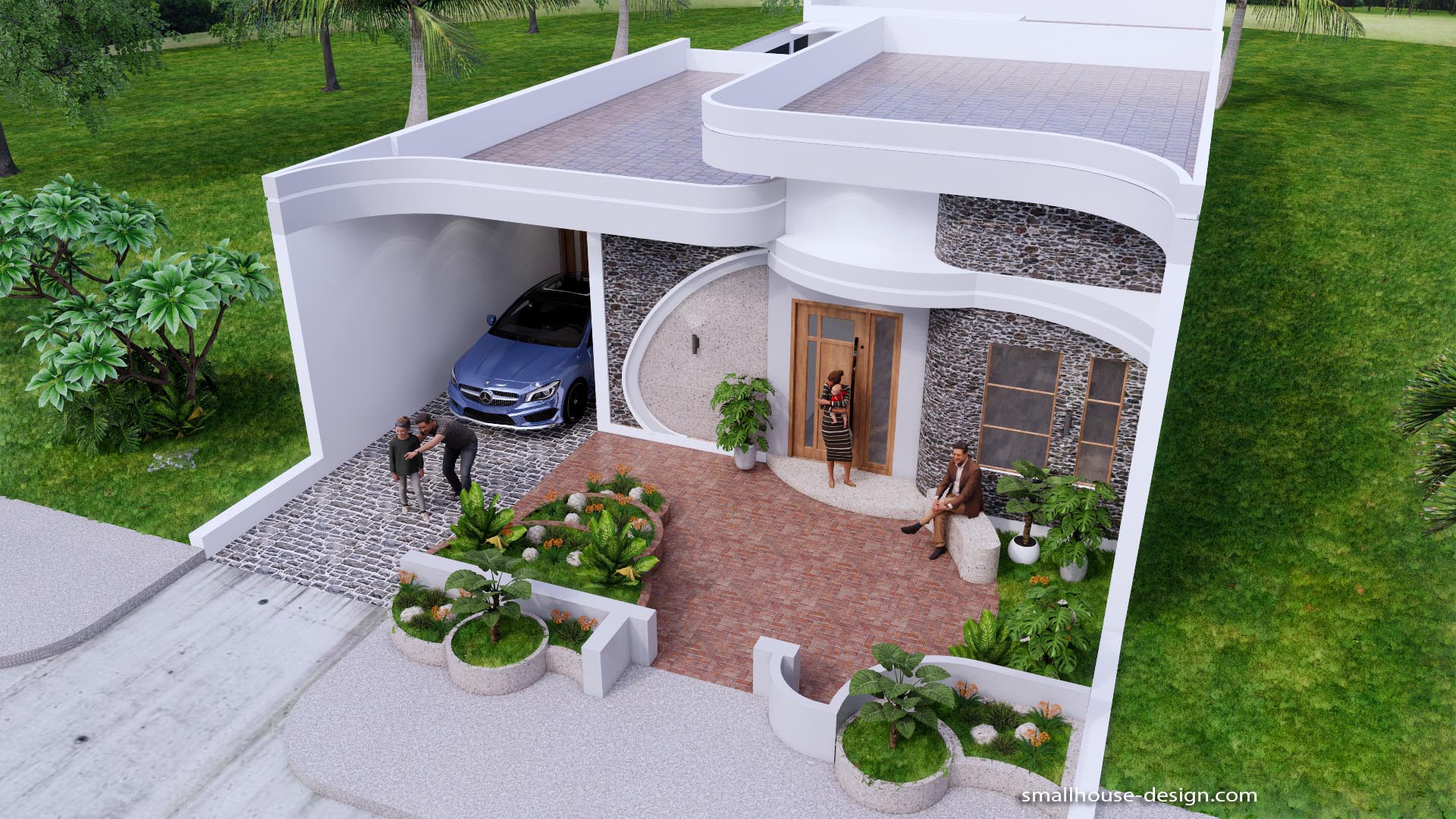

The 3D Bird View:

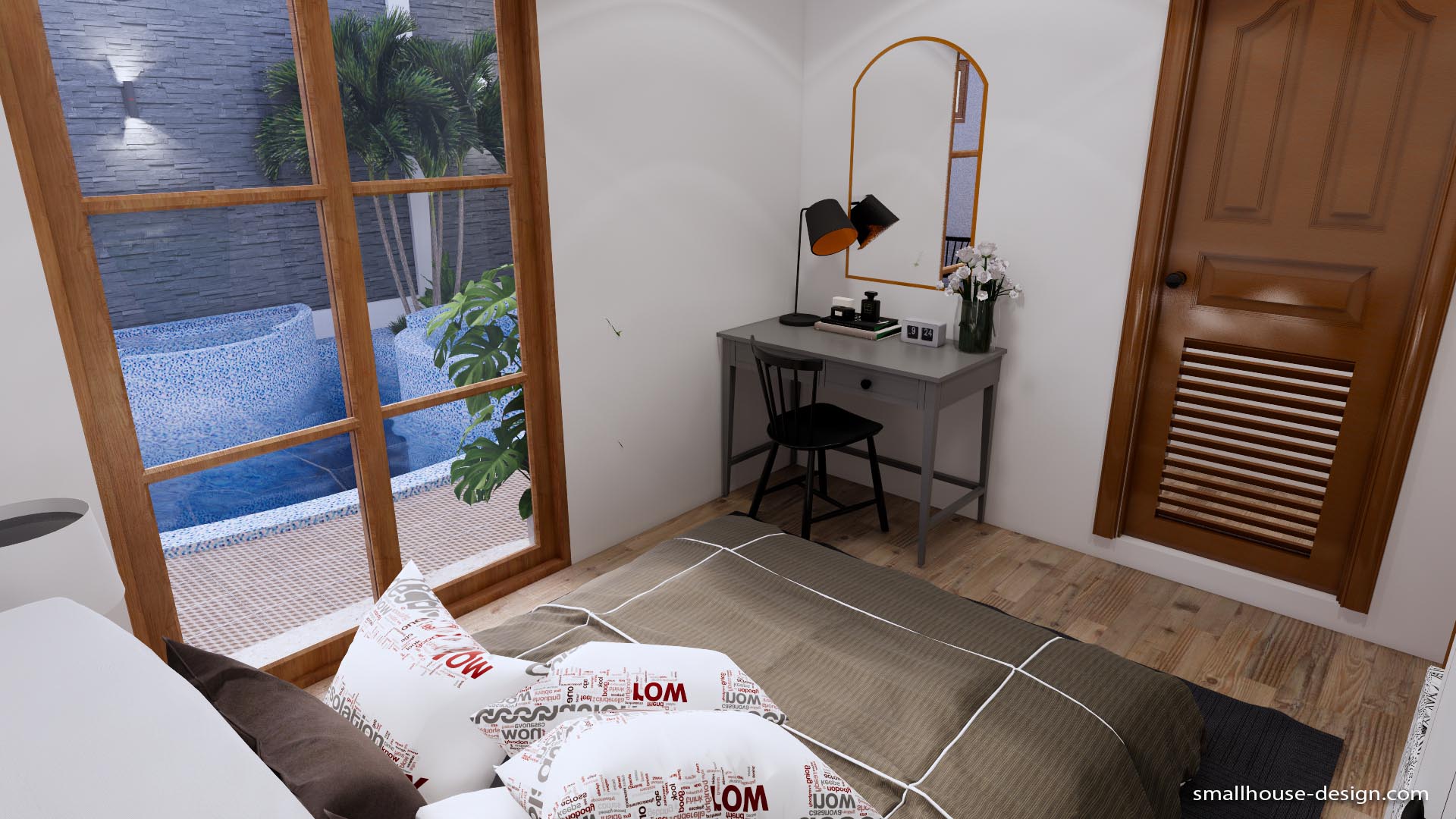

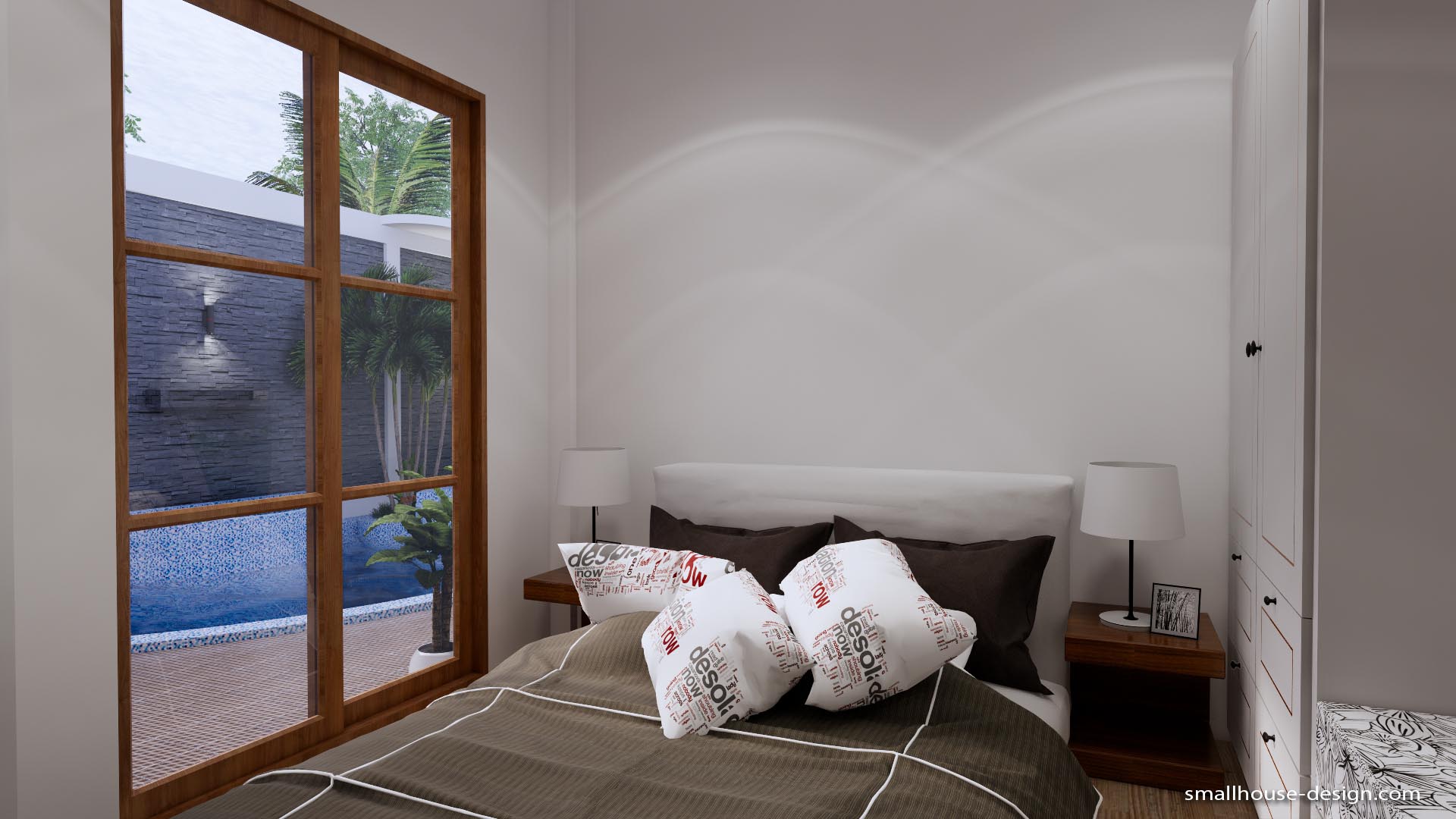

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.

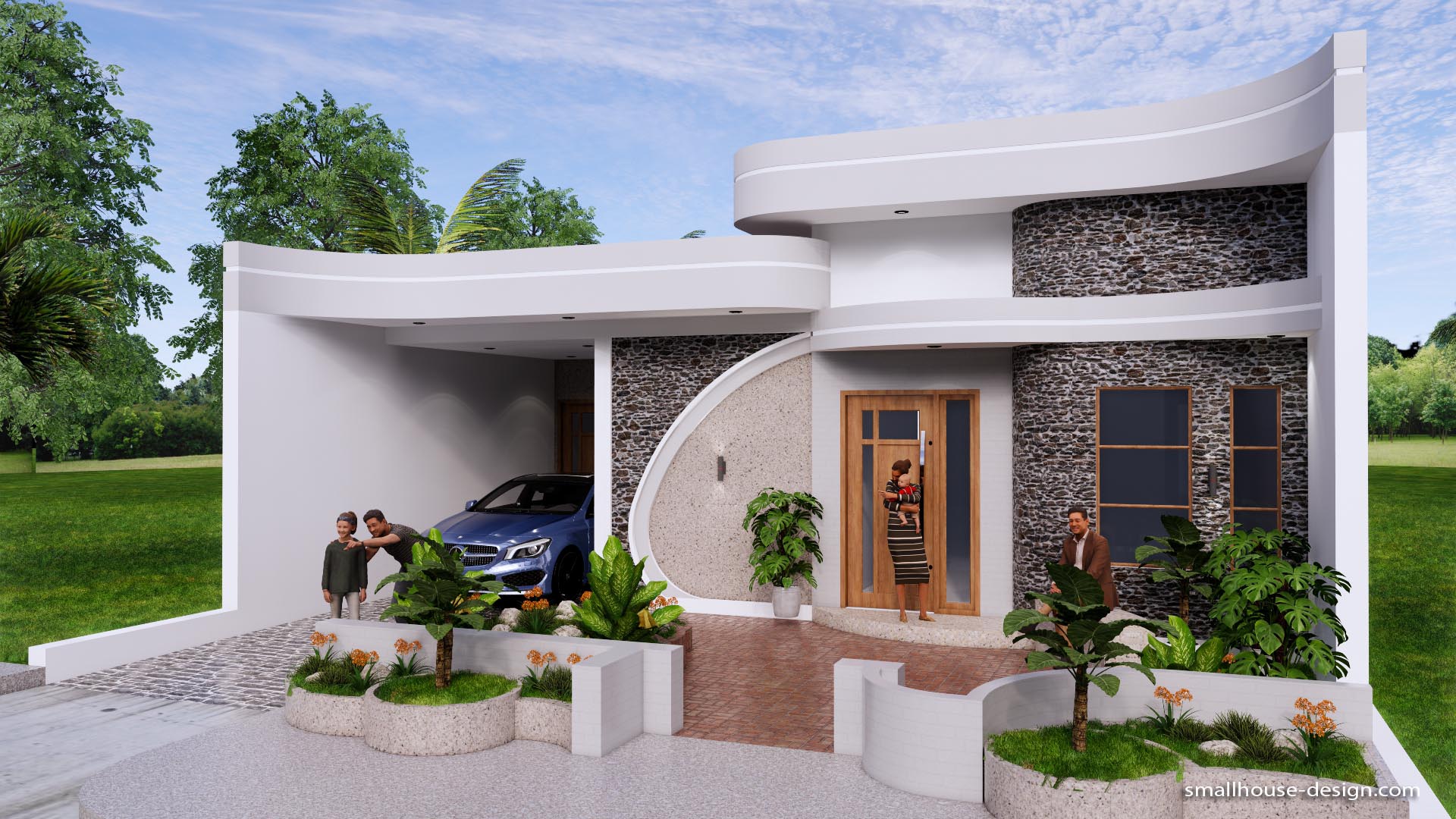

The Elevation 3d:

The PDF Layout Plans:

Buy this House Plans Plot 10×20:

This is a PDF Plan available for Instant Download.

3-Bedrooms 2-Baths home with mini washer/dryer room.

Building size: 27 feet wide, 56 feet deep. 8×17 meter 1 floor

Roof Type: Terrace roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

Cross Section plans

Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
