Small Home Plan 6×9 Meter 20×30 Feet 3 Beds

$29.99

Buy this: Small Home Plan 6×9 Meter 20×30 Feet 3 Beds

-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension. 4 Sections
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2018 and Sketchup 2019

Click Here to Download the Sample Plan

Categories: , Tag:

Description

Small Home Plan 6×9 Meter 20×30 Feet 3 Beds PDF Full Plans. This villa is modeling with 2 stories level. It’s has 3 bedrooms. Est. Price around 27-33k usd construction only, furniture not include.

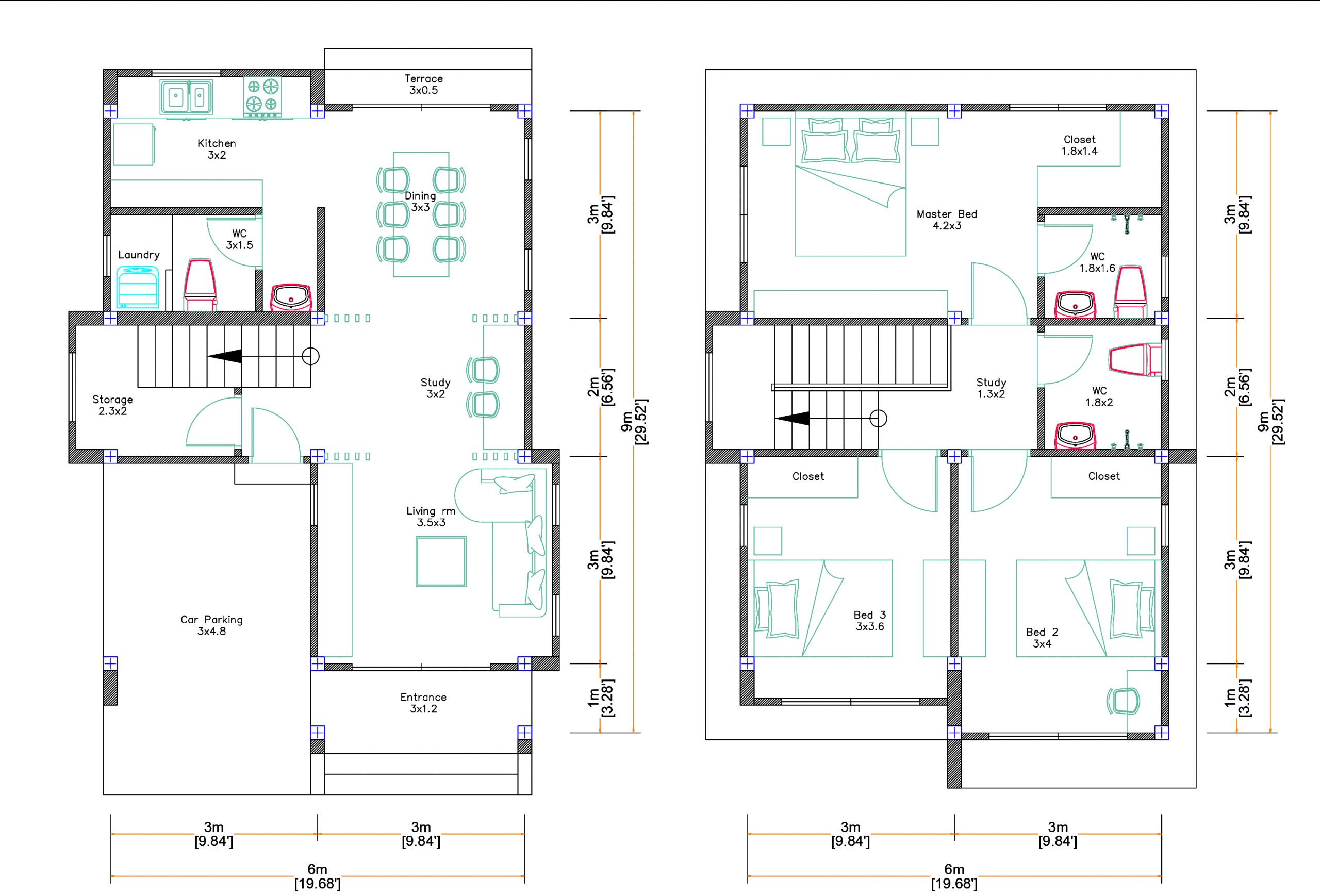

Small Home Plan 6×9 Ground Floor Plans Has:

If you looking for 3 Bedrooms house plan, You will love this layout plan, Ground floor, 1 car Parking is at the left side of the house 3×4.8 meters. A nice Terrace entrance in front of the house 3×1.2 meter. When we are going from front door, a small Living 3×3.5 meter is very perfect for this house it is nice and modern. Brightly Kitchen 3×2 meter, dining area 3×3 meter, it is clean and beautiful. A multi Bathroom size 3×1.5  meters with washing machine. Storage is under the stair 2.3×2 meter. Study area 3×2 meter.

At first floor, hall 1.23×2 meter, Master Bedroom size is 4.2×3 meters, it have a big glass sliding window with a queen size bed, Makeup desk and walk in closet 1.8×1.4 meter, attached with bathroom 1.8×1.6 meter no balcony. Bedroom 2 size 3×4 meter, bedroom 3 size 3×3.6 meters. Bathroom 1.8×2 meters.

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds Layout Plans

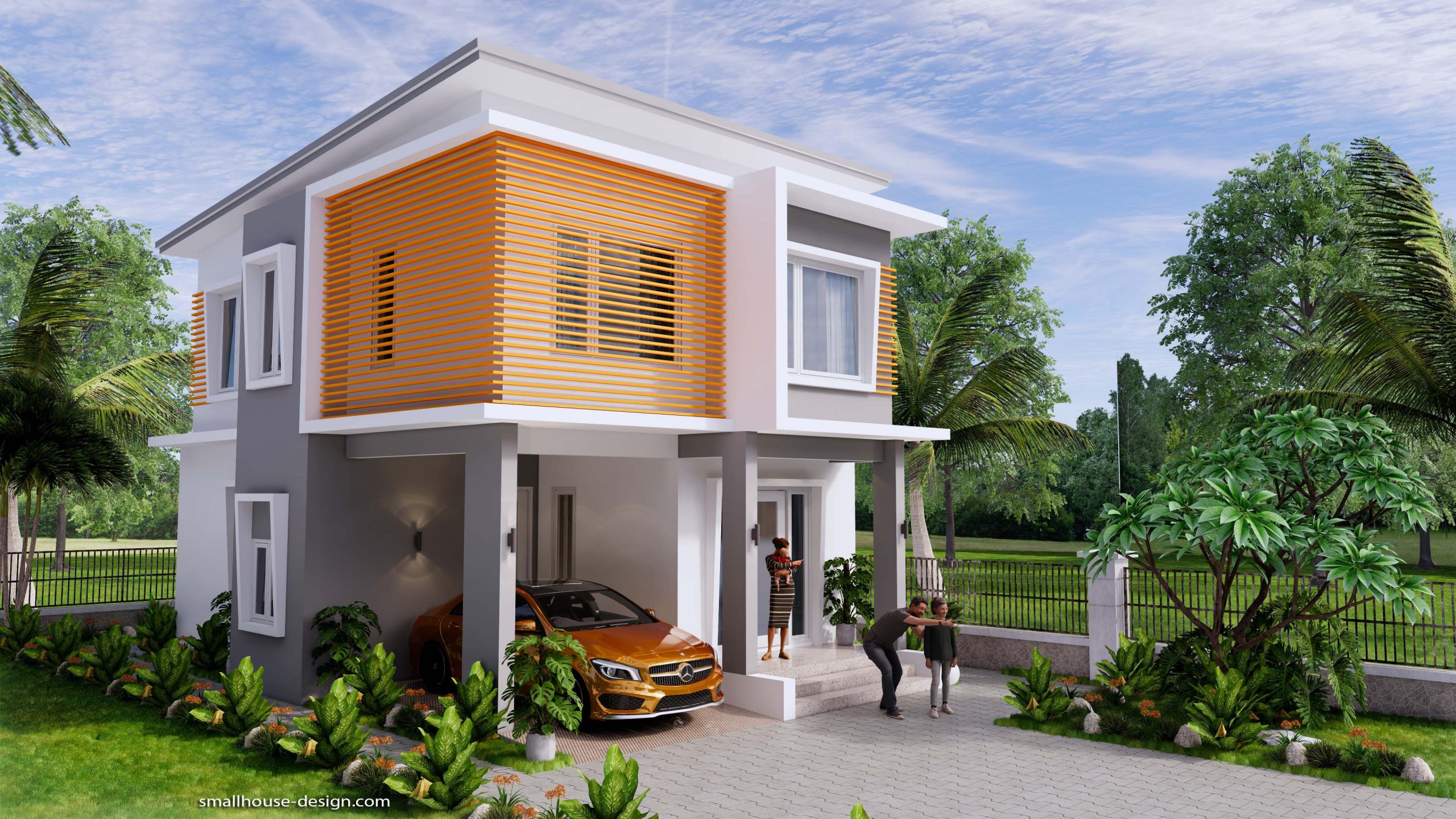

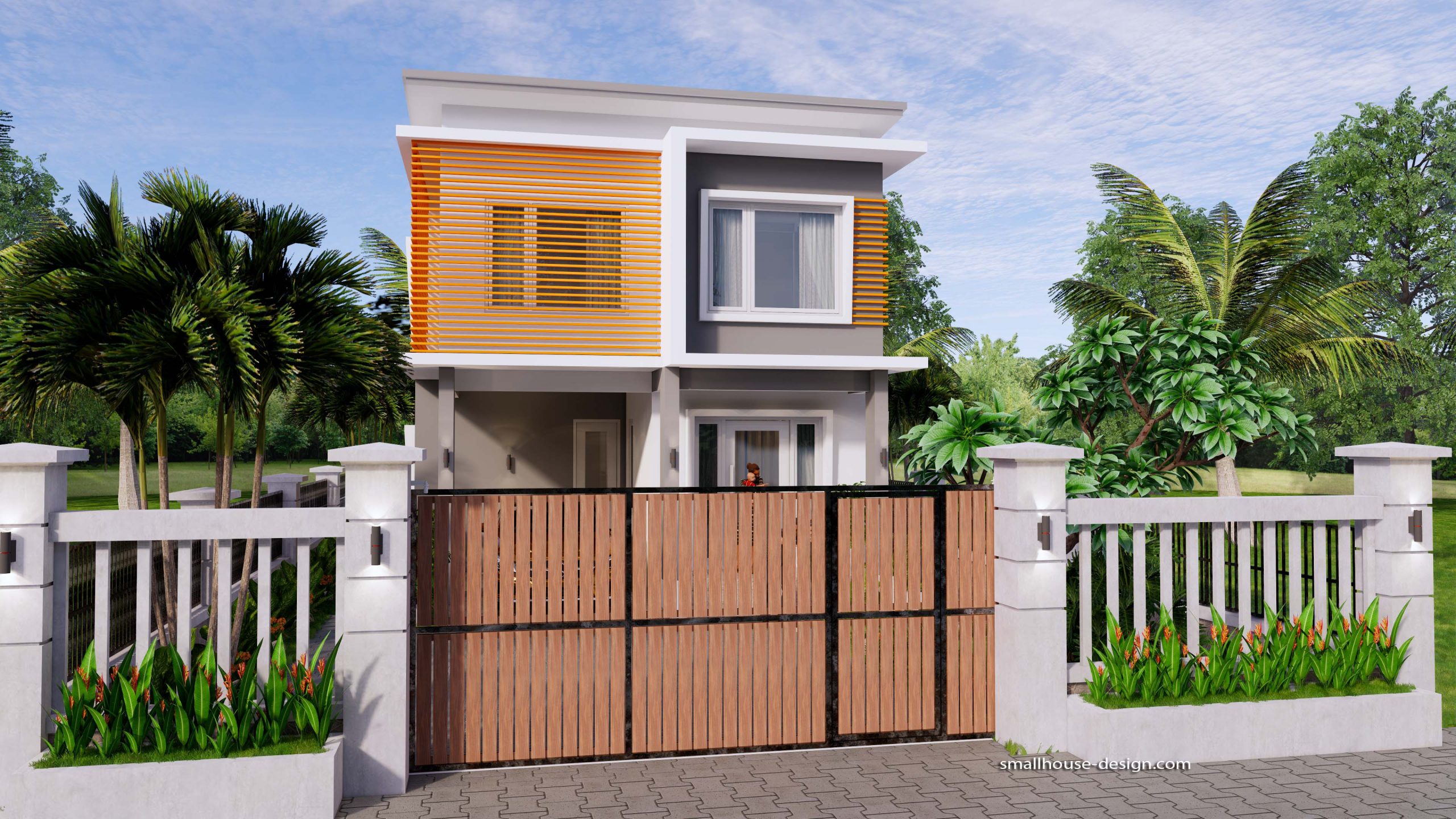

Exterior Small Home Plan 6×9:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds 1

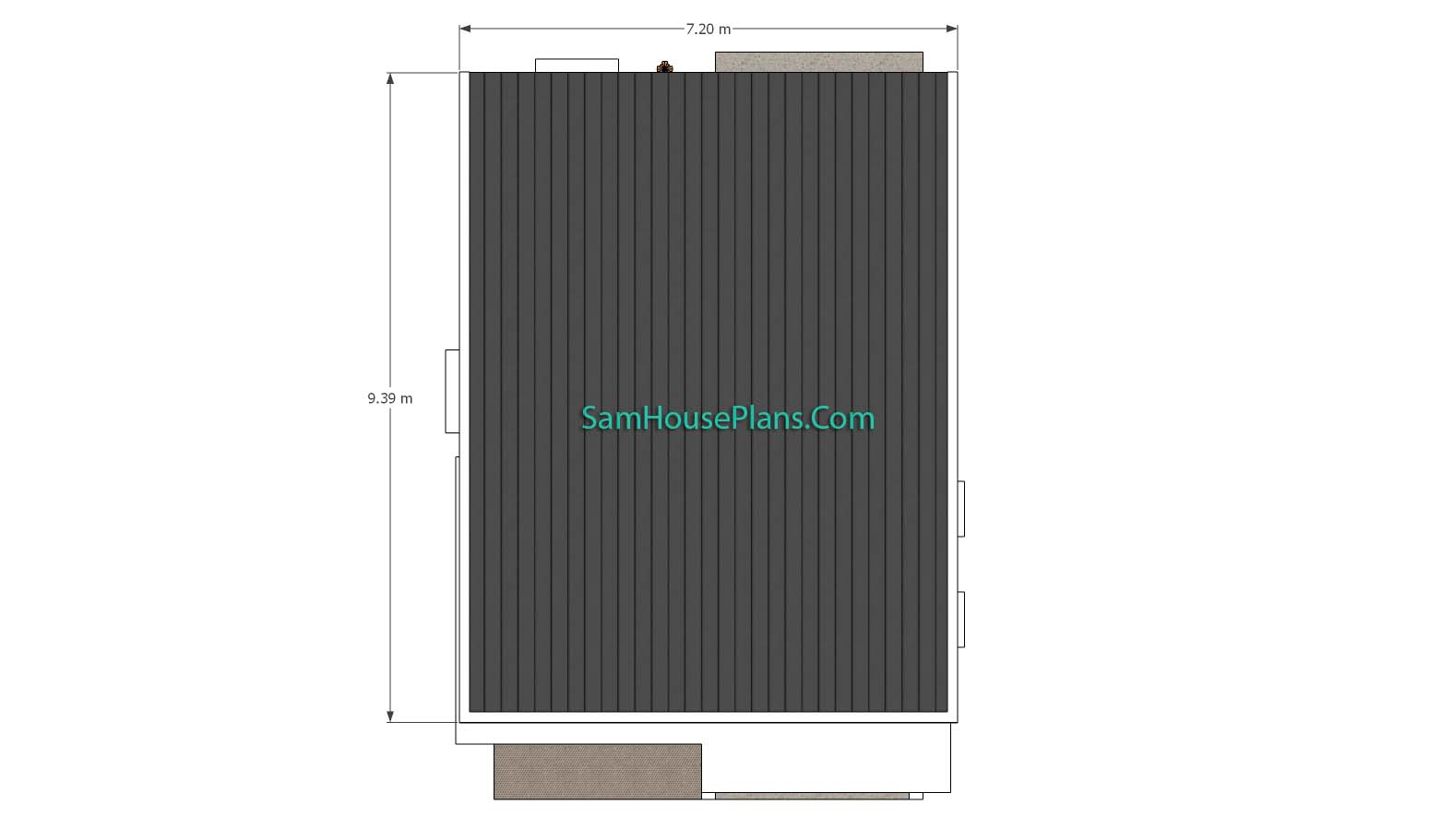

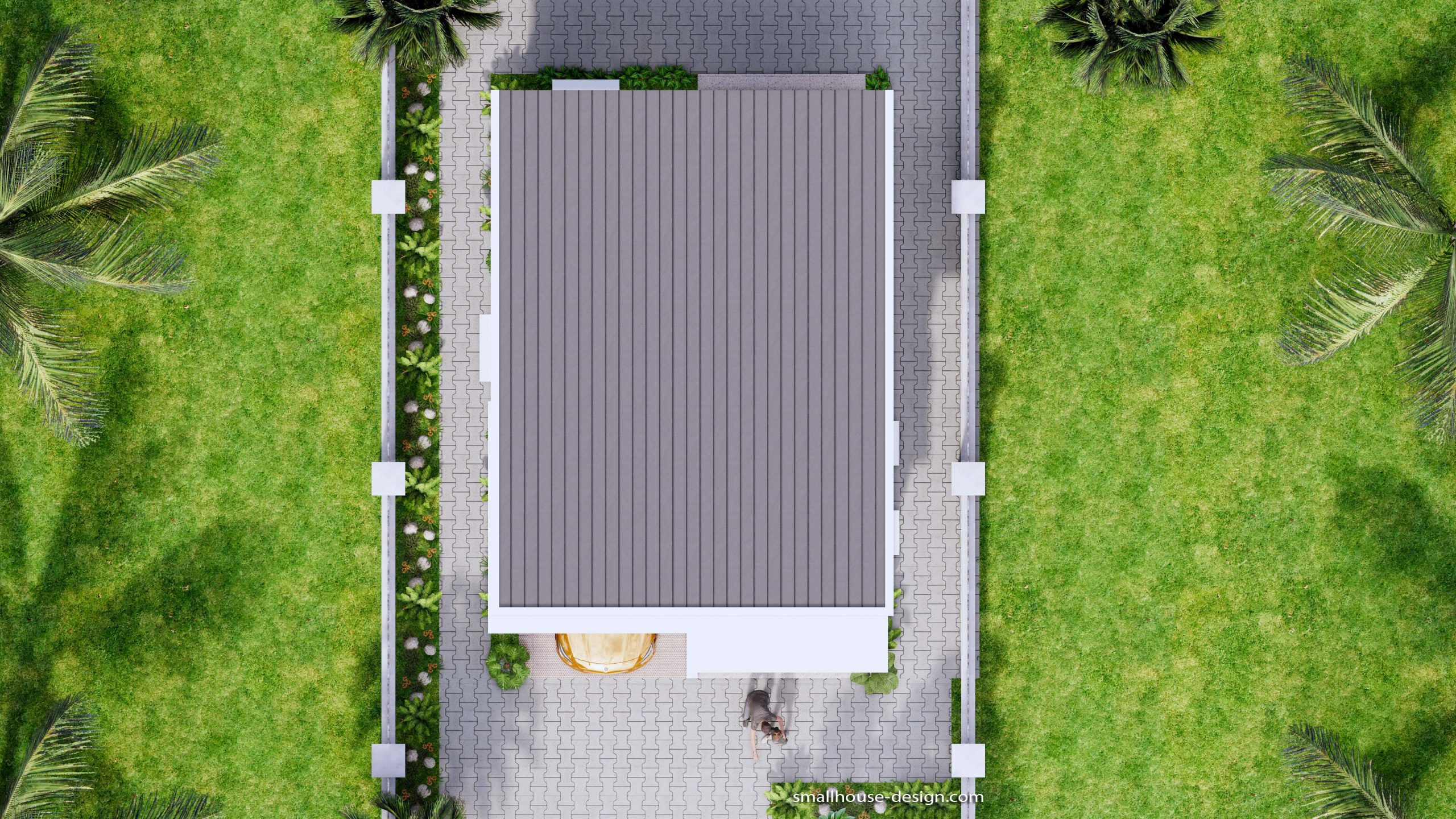

The Shed Roof Tile:

Finally, The Shed roof type is made from zine roof tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds 9

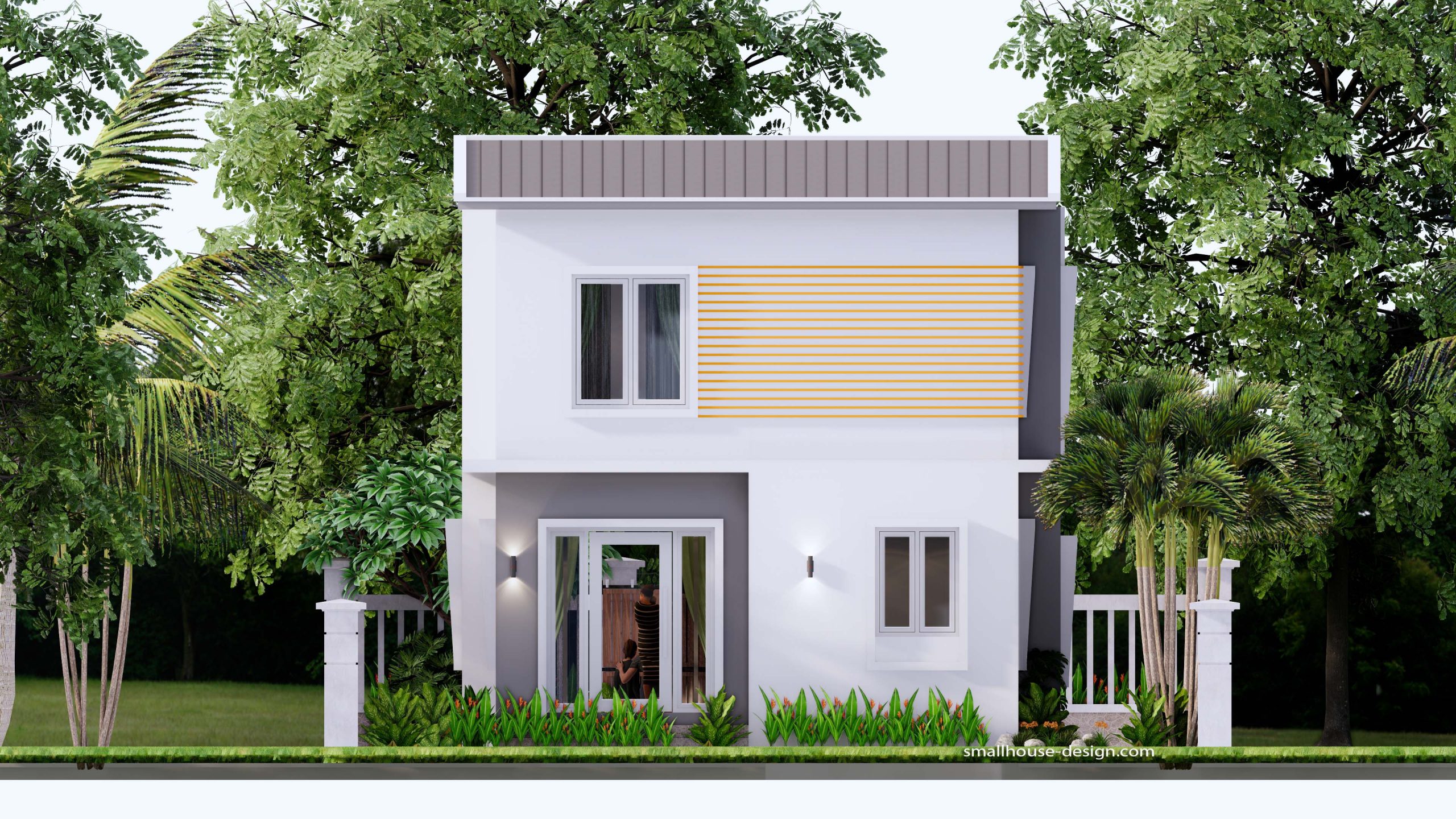

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds 10

House Short Description:

Ground floor:
-1 Car Park is at the left side of the house
-Living room, Family room
-Kitchen and Dinning
-Storage
-Public bathroom

First floor:
-3 Bedrooms
-2 Bathrooms
-Balcony

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

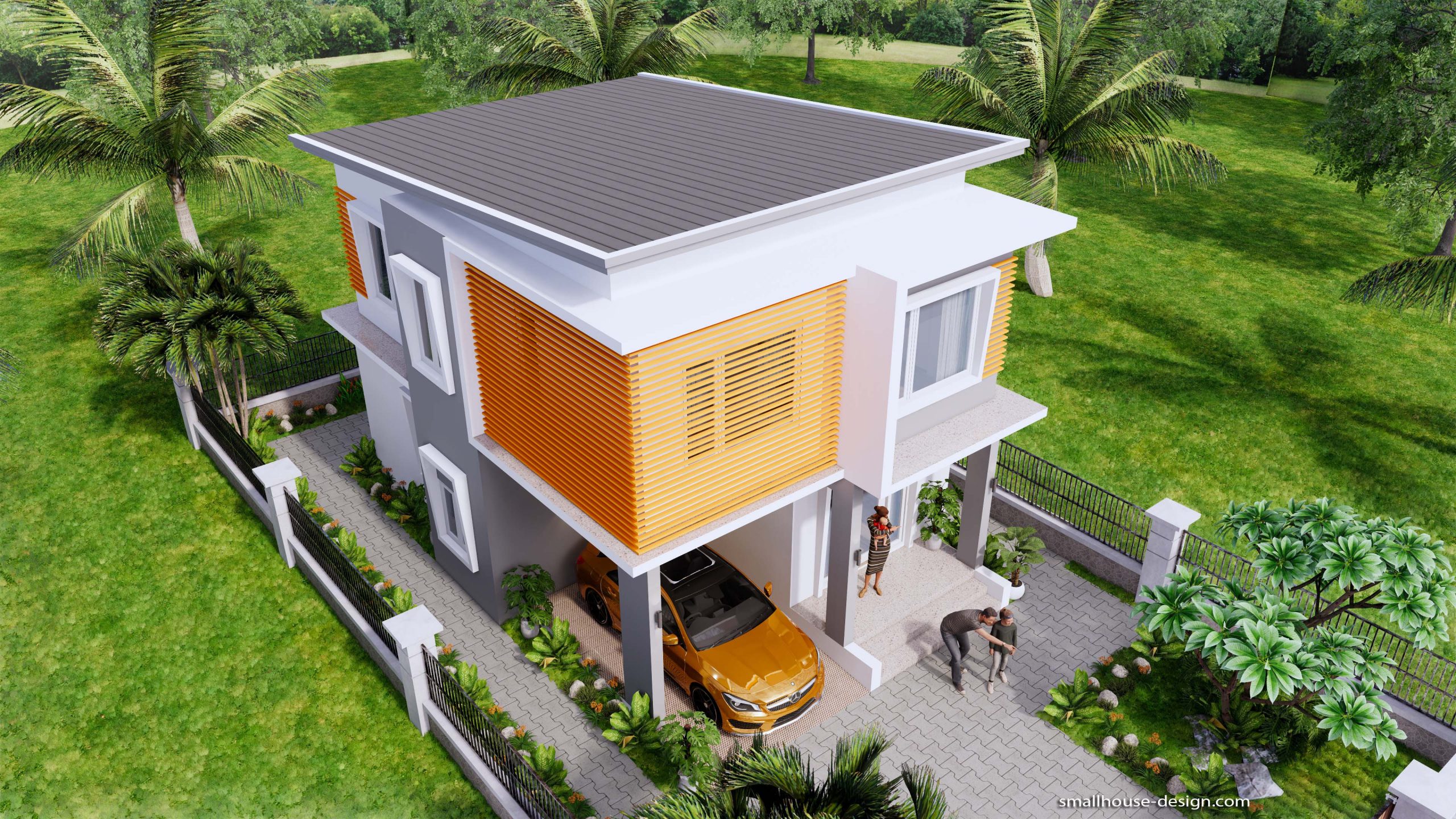

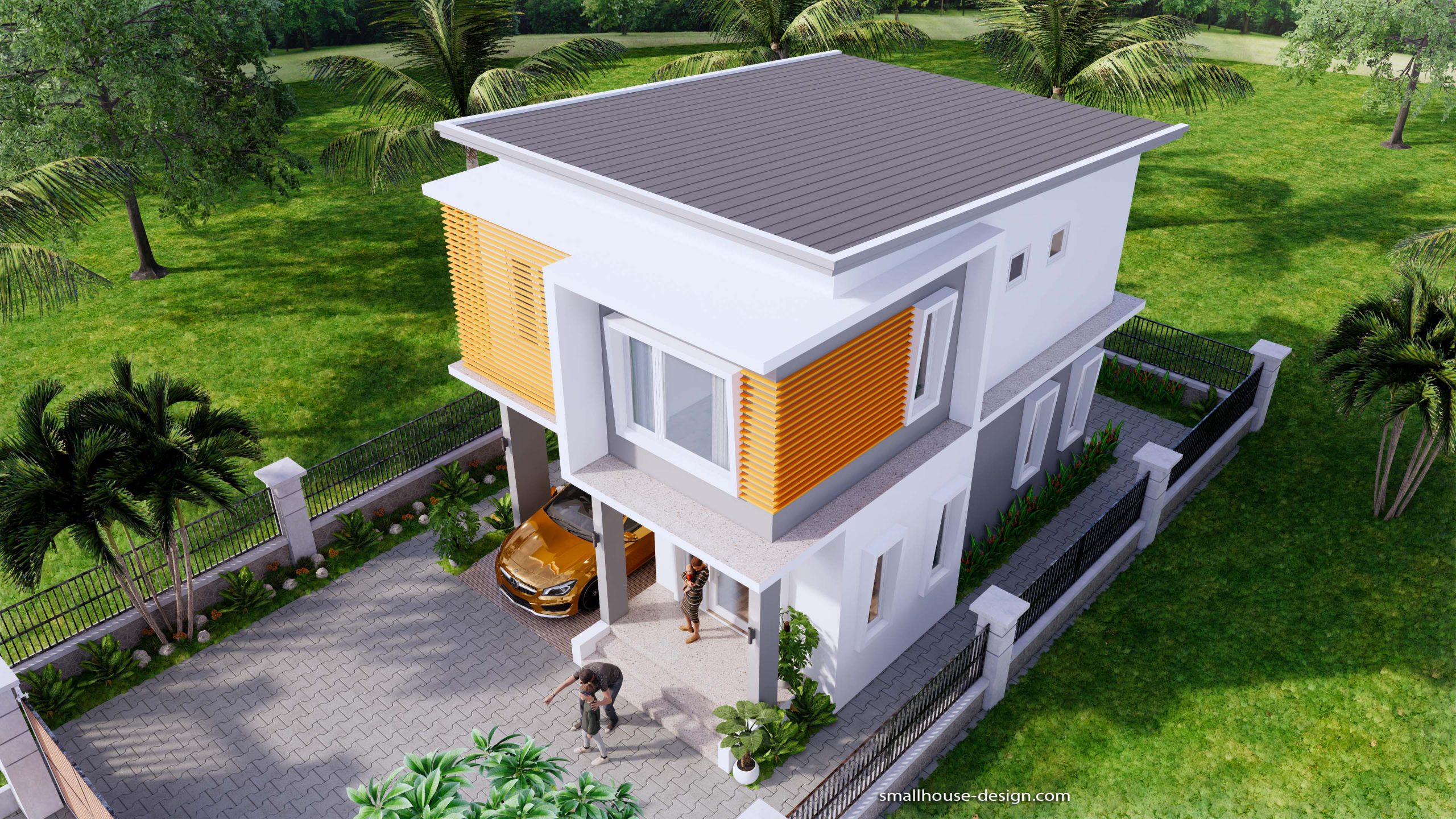

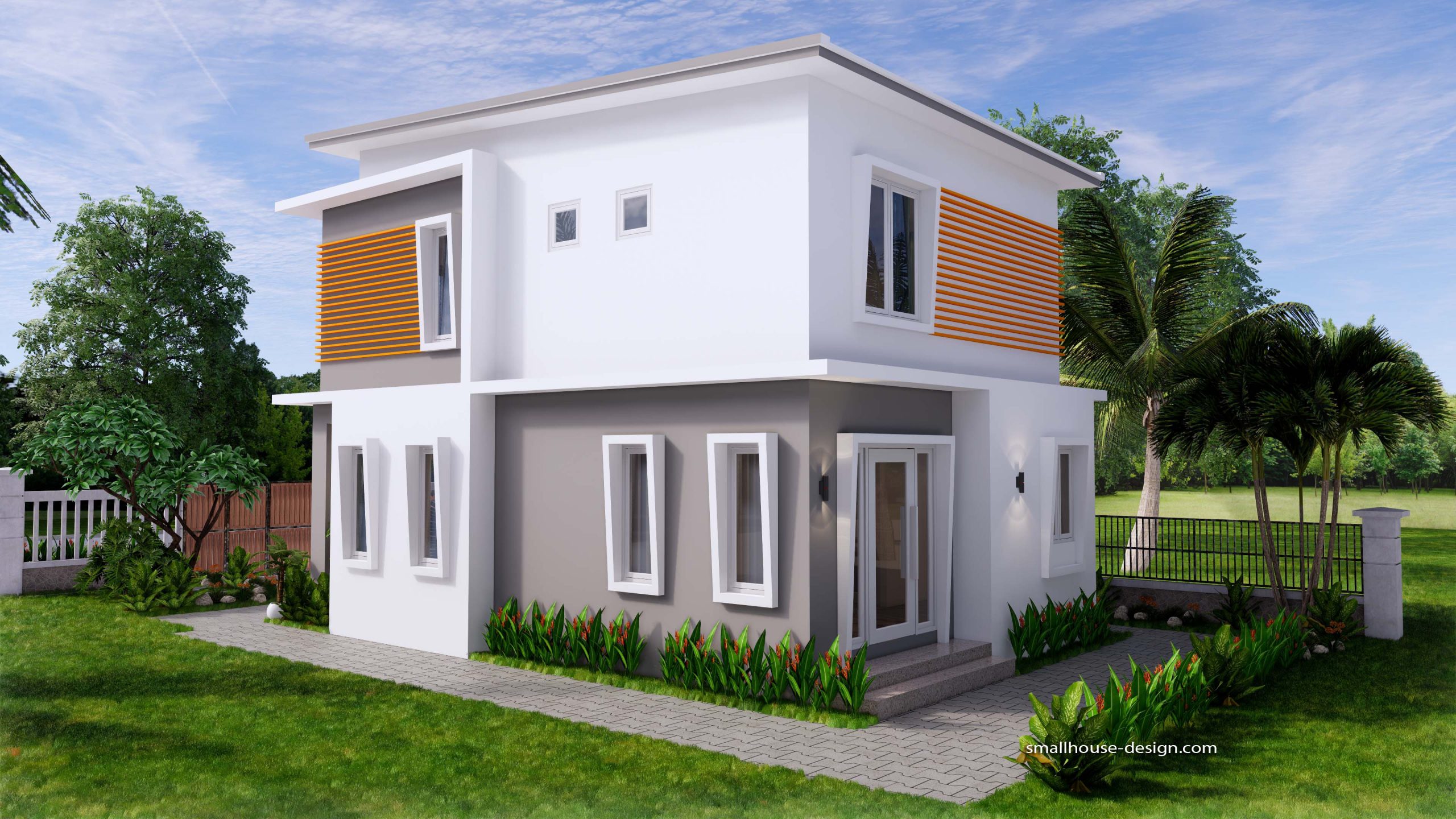

The 3D Bird View:

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds 3

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds 2

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds 1

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds 6

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds 8

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds 9

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds 10

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.

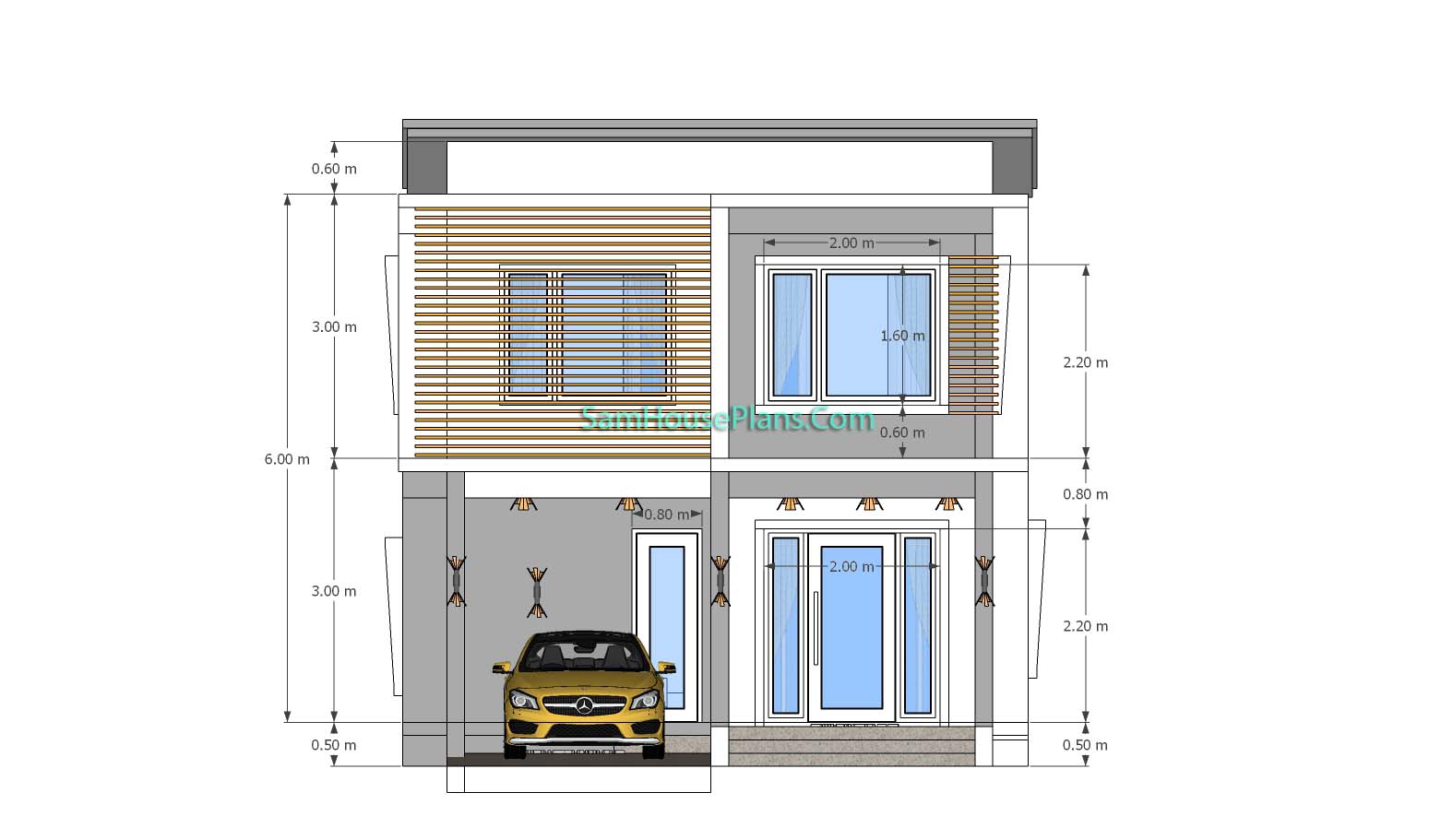

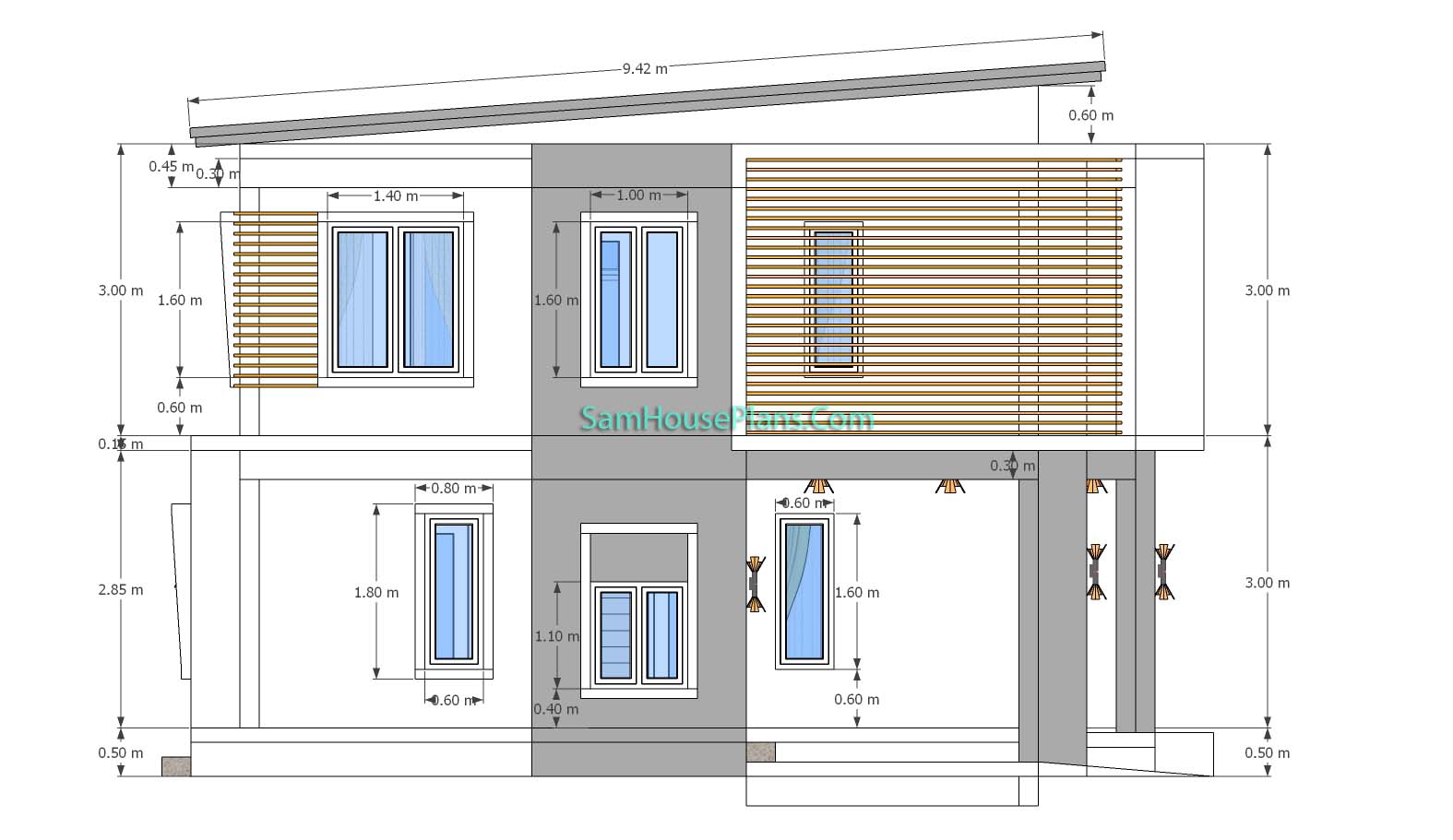

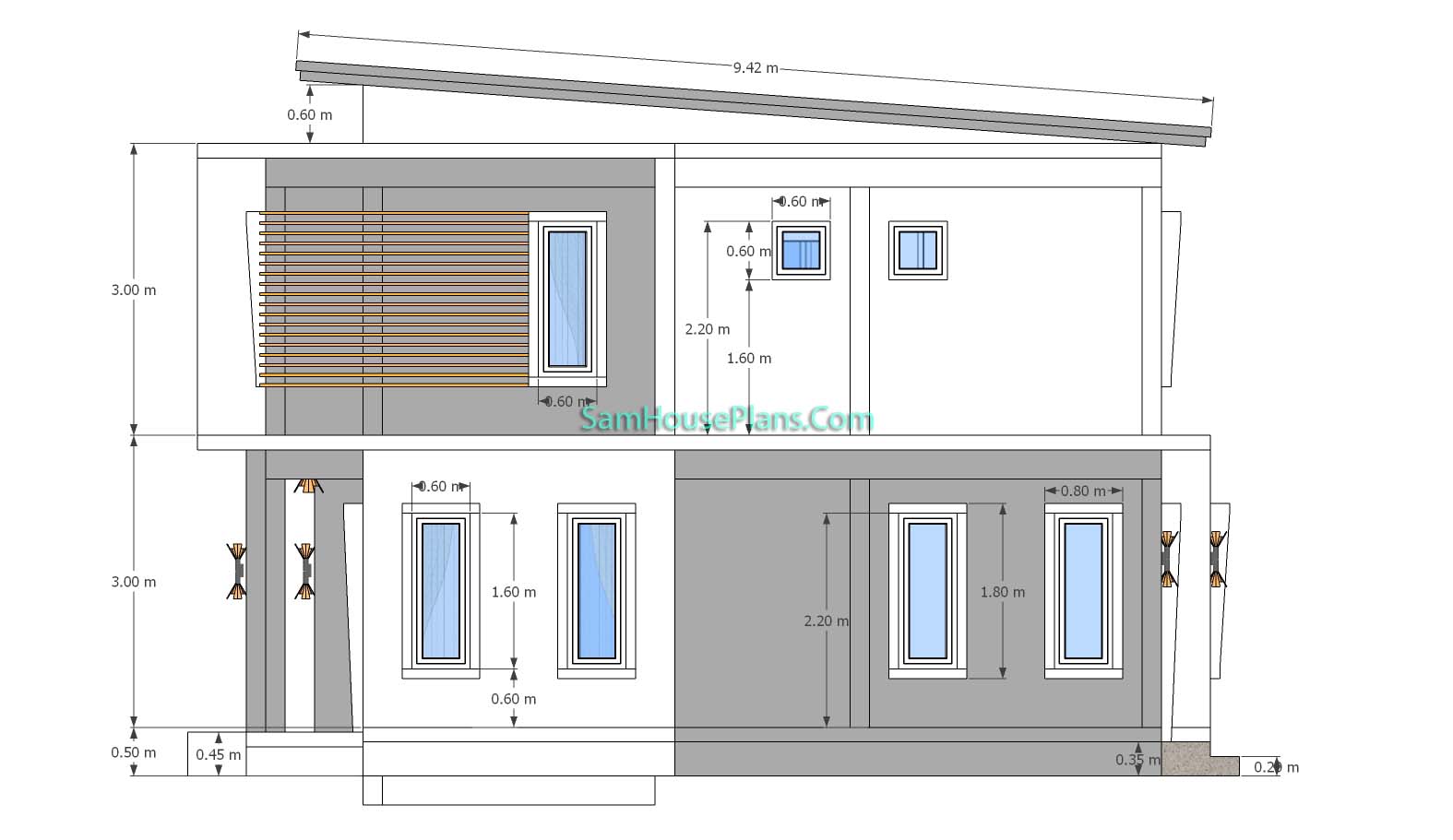

The Elevation 3d:

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds Layout Plans

The PDF Layout Plans:

Small Home Plan 6x9 Meter 20x30 Feet 3 Beds Layout Plans

Buy this Small Home Plan 6×9:

This is a PDF Plan available for Instant Download.

3-Bedrooms 3-Baths home with mini washer/dryer room.

Building size: 20 feet wide, 30 feet deep. 6×9 meter 2 floor

Roof Type: Shed roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

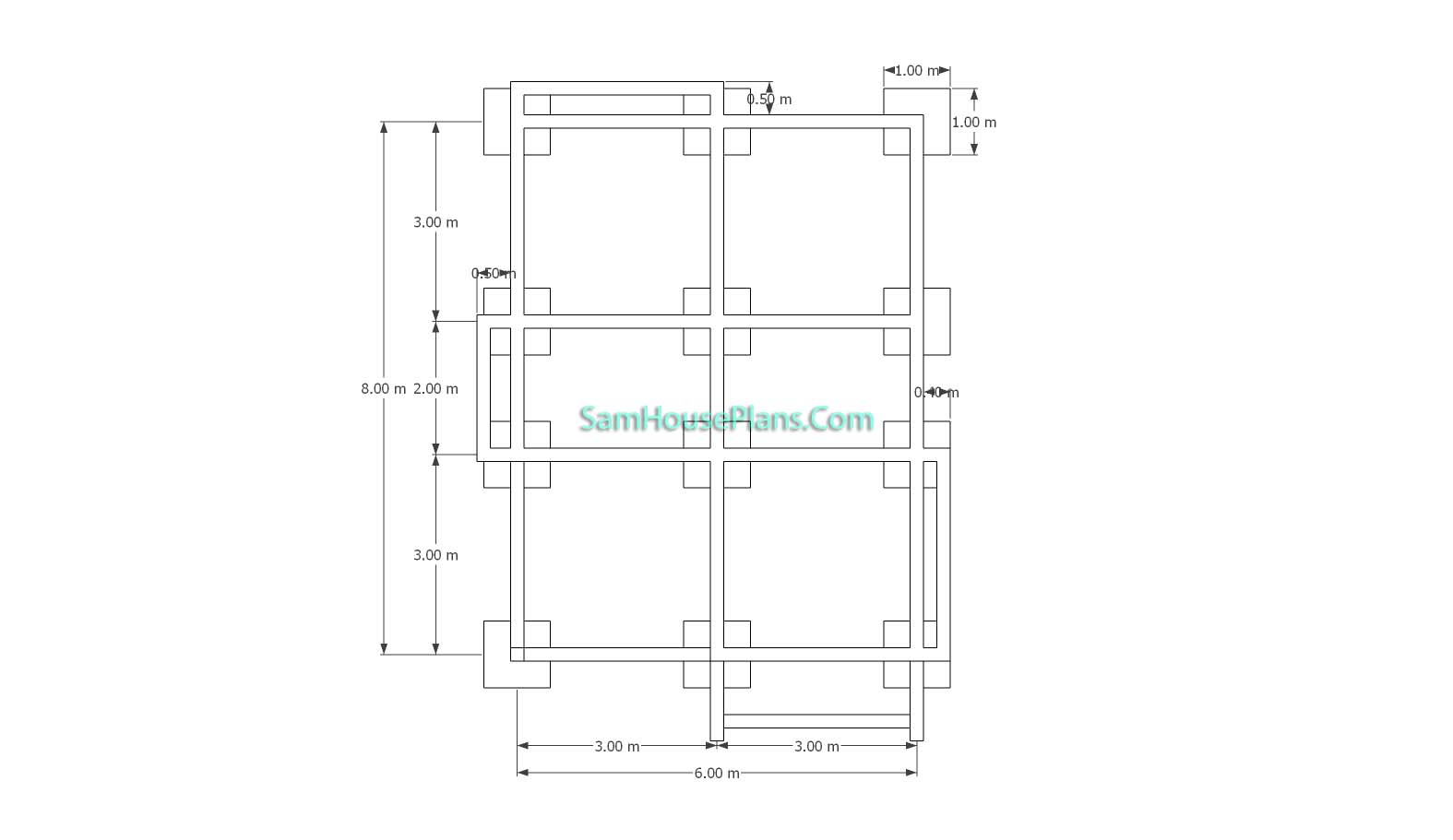

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

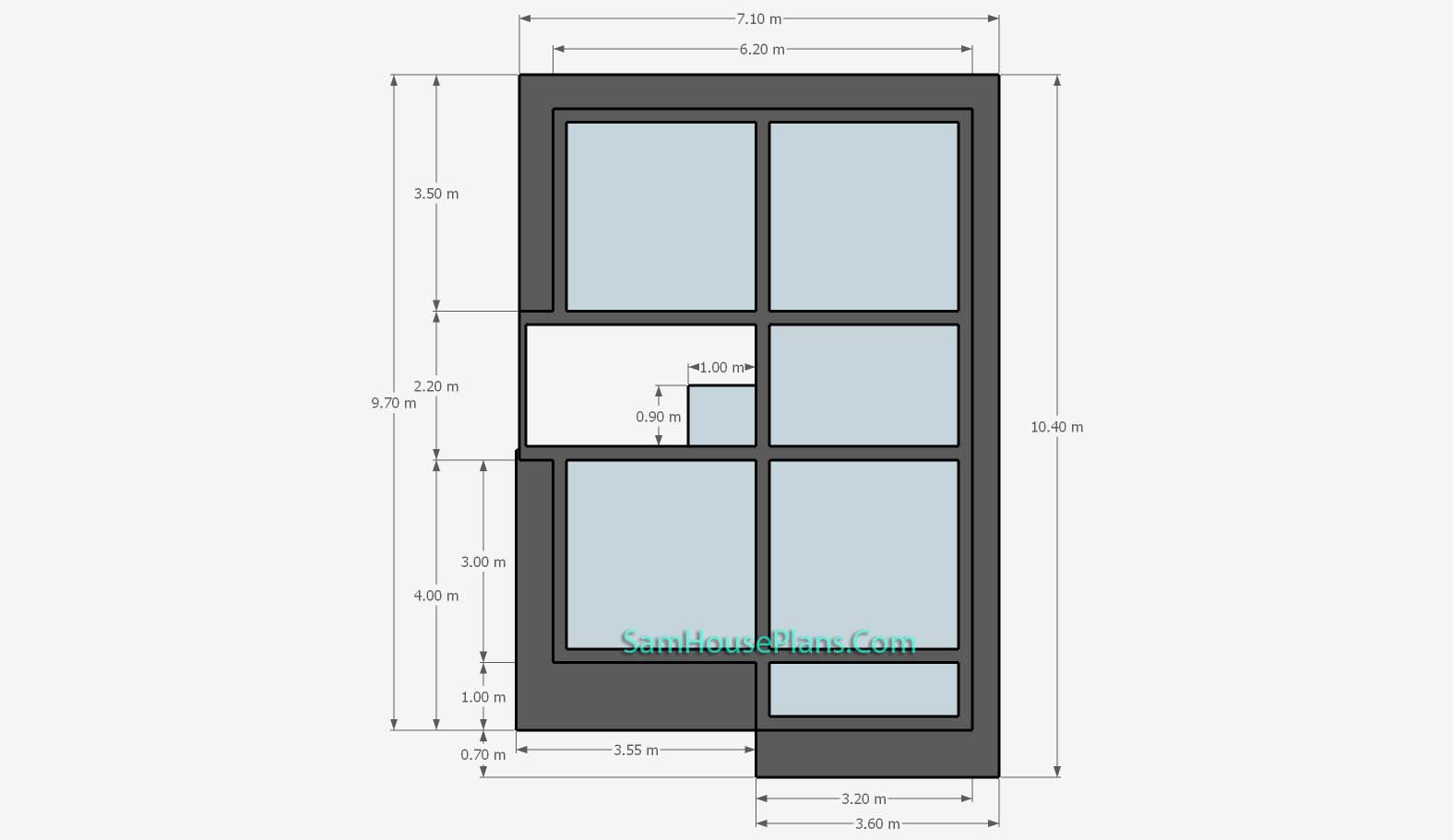

Roof Beam Plan

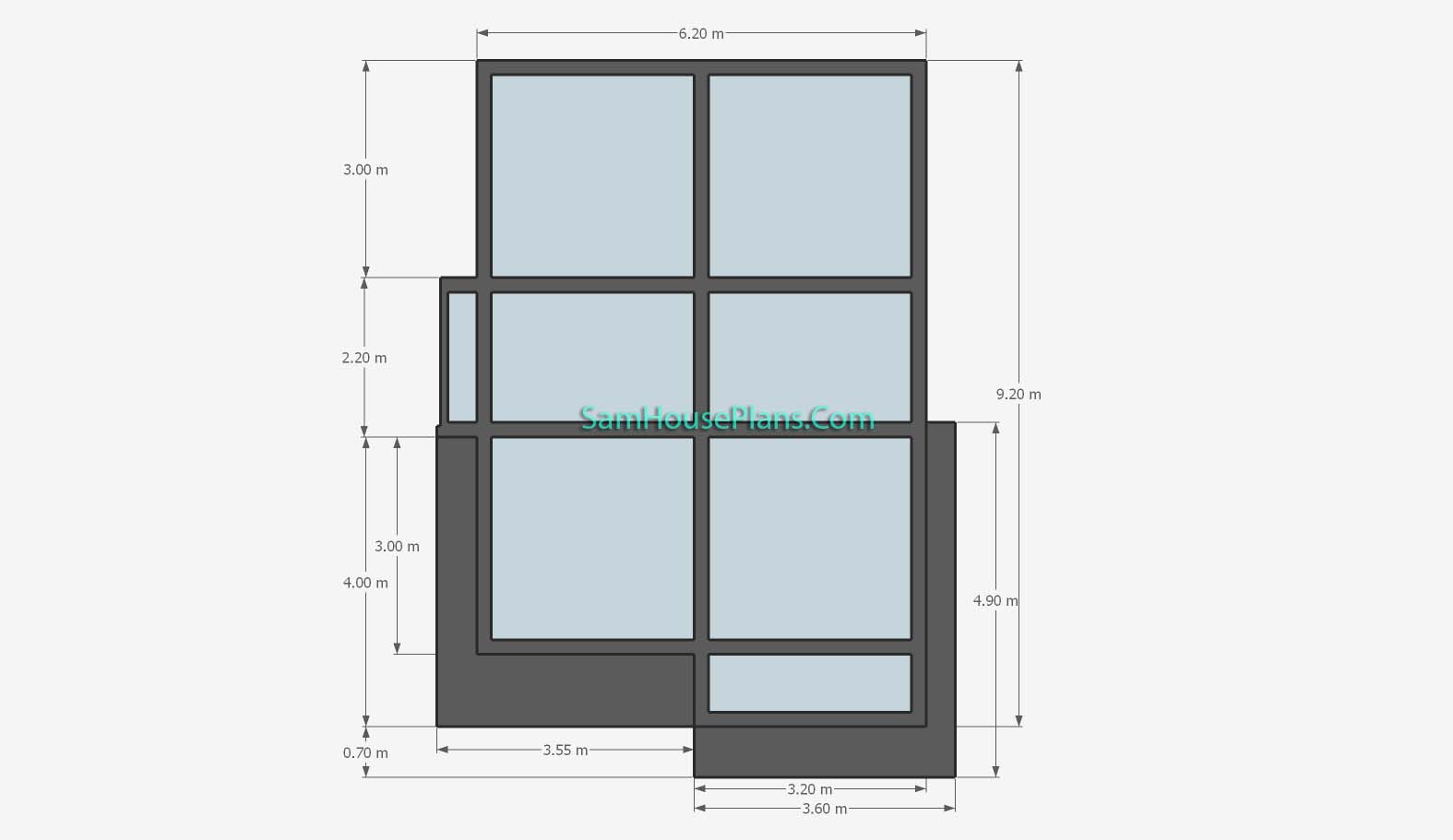

Roof Plan

Elevations plans

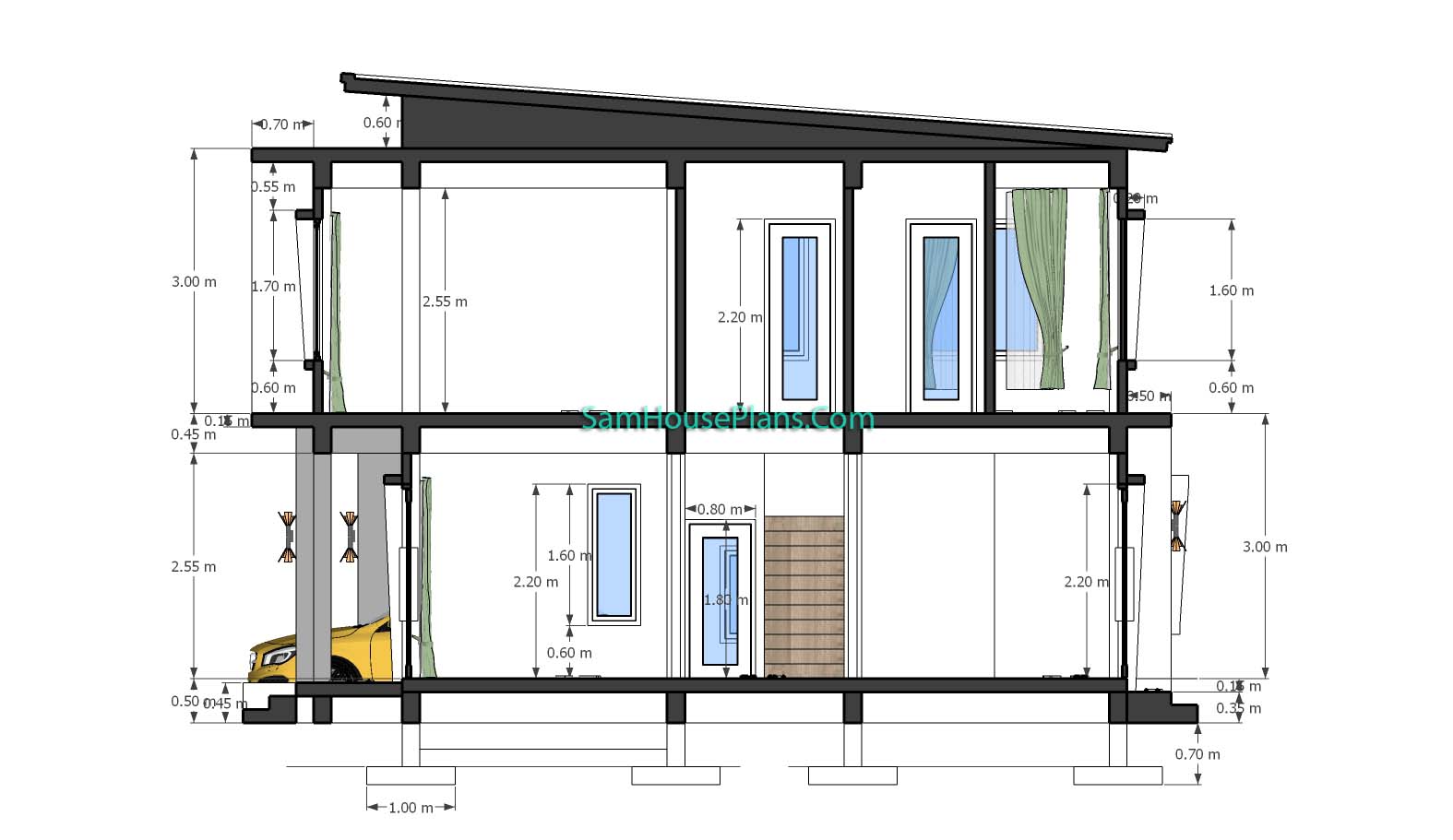

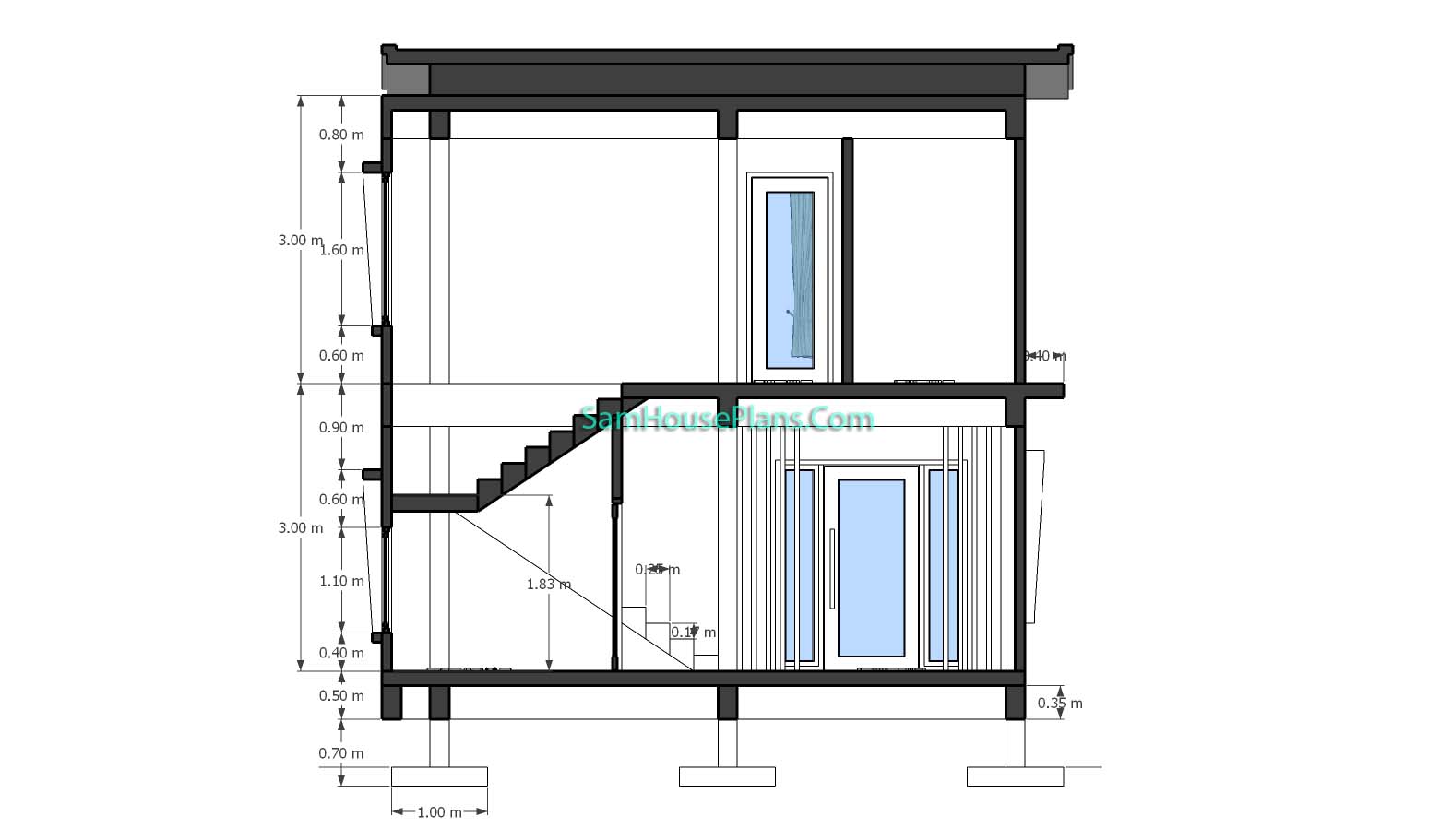

Cross Section plans

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
