Small Home Plan 7×10 Meter 23×33 Feet Full Plan

Original price was: $29.99.Current price is: $9.99.

Buy this: Small Home Plan 7×10 Meter 23×33 Feet Full Plan
-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension. Section
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2018 and Sketchup 2019



SKU: 2051257338802 Categories: , Tag:

Description

Small Home Plan 7×10 Meter 23×33 Feet Full Plan 3 Beds Hip Roof. This villa is modeling by SAM-ARCHITECT With 1 stories level. It’s has 3 bedrooms. Est. Price around 18-25k usd construction only, furniture not include.

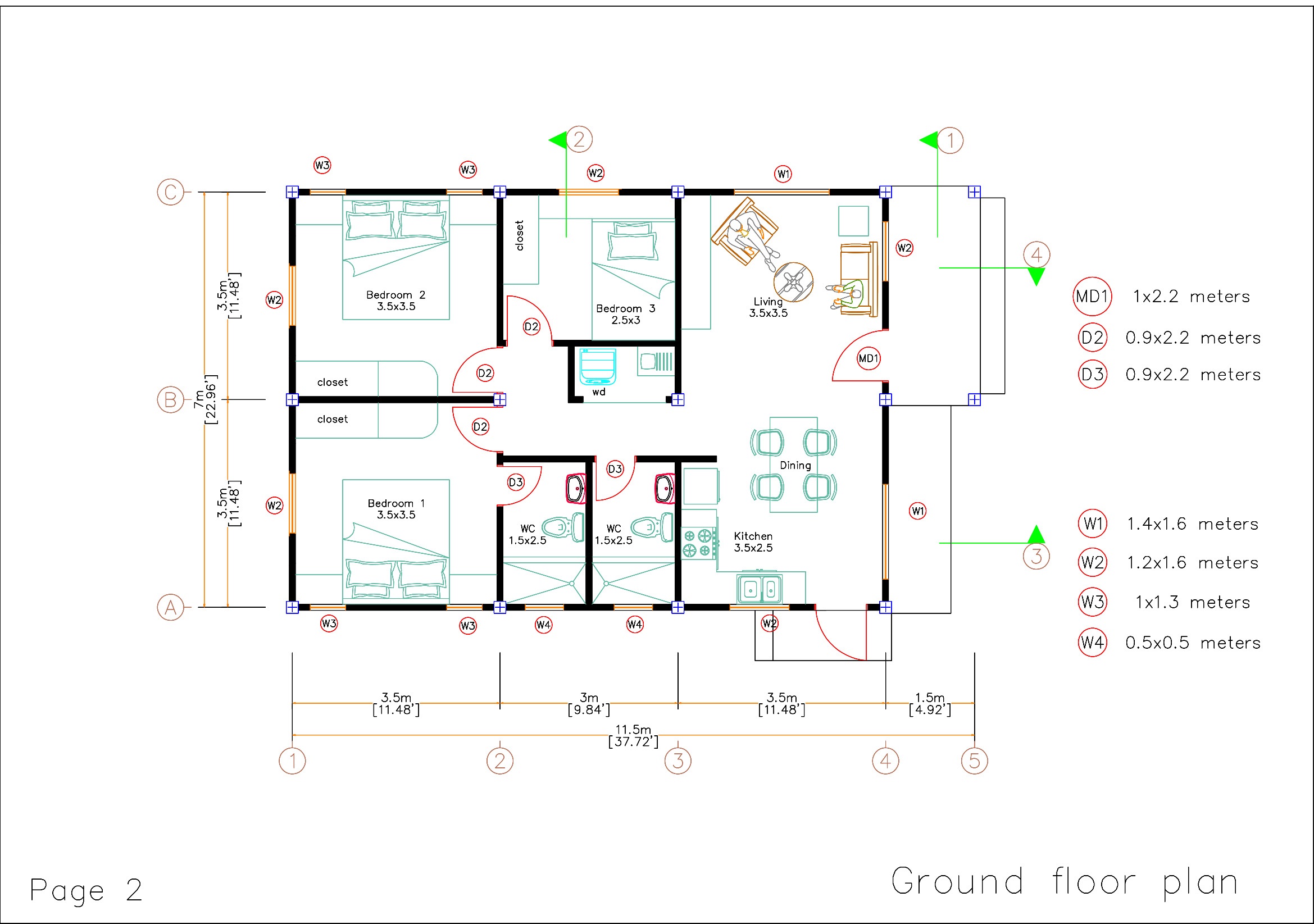

Small Home Plan 7×10 Ground Floor Plans Has:

This small house plan you looking for has: Car Parking is at out side of the house. A nice Terrace entrance in front of the house 1×7 meters. When we are going from front door,  a Living 3.5×3.5 meter is very perfect for this house it is nice and modern. Brightly Kitchen area 3.5×3.5 meter with dining table, it is beautiful. A multi Bathroom size 1.5×2.5 meters. The washing area 1×1.8 meters.

The Master Bedroom size is 3.5×3.5 meters, it has 1 big and 2 narrow  glass window with a queen size bed, Makeup desk and closet , attached with bathroom 1.5×2.5 meter. Bedroom 2 size 3.5×3.5 meter and Bedroom 3 size 2.5×3 meters.

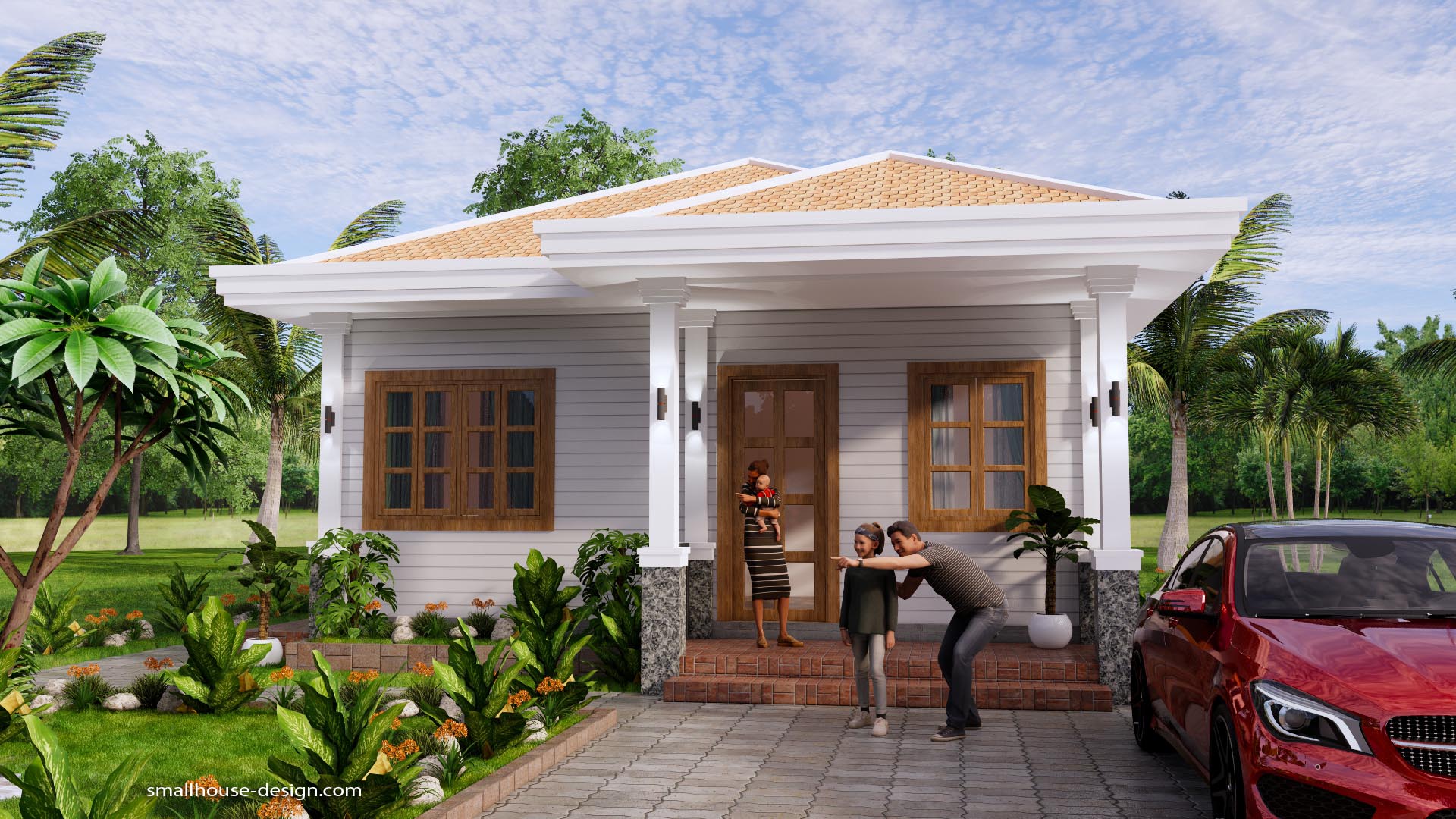

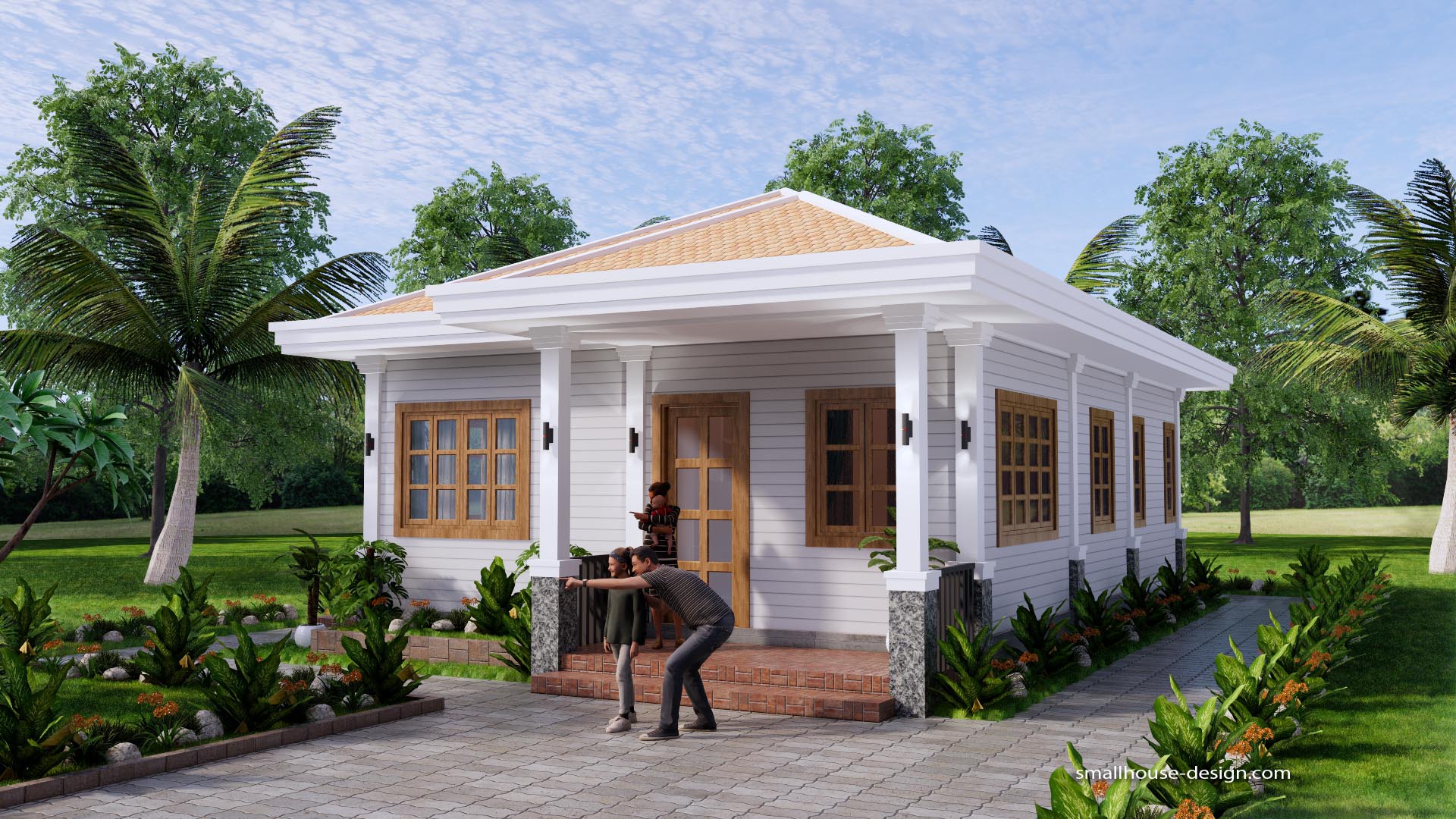

Exterior Small Home Plan 7×10:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Roof Tile:

Finally, The Hip roof type is made from cement tiles that cover above Gypsum board ceiling . It is make the house look simple and modern.

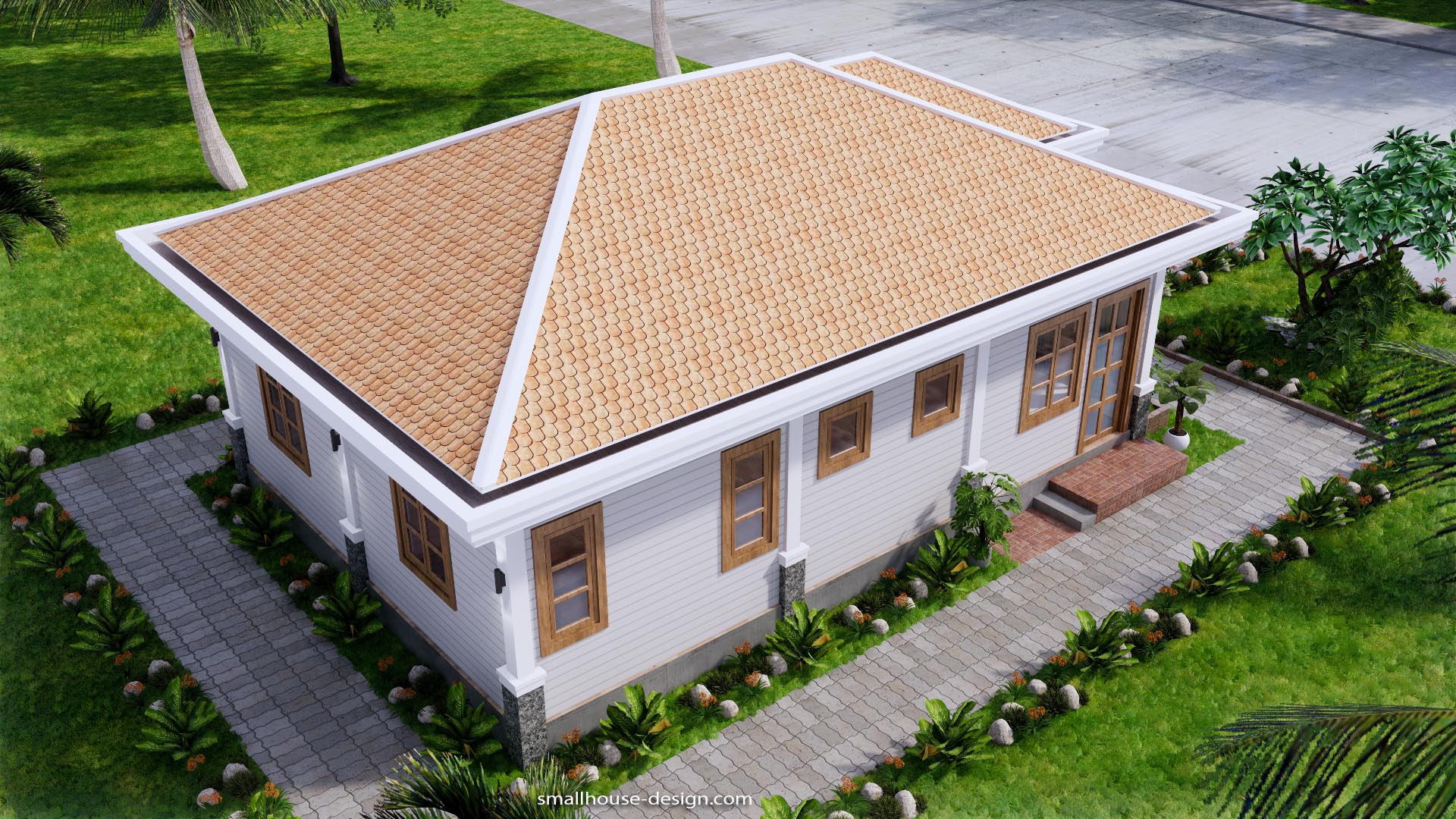

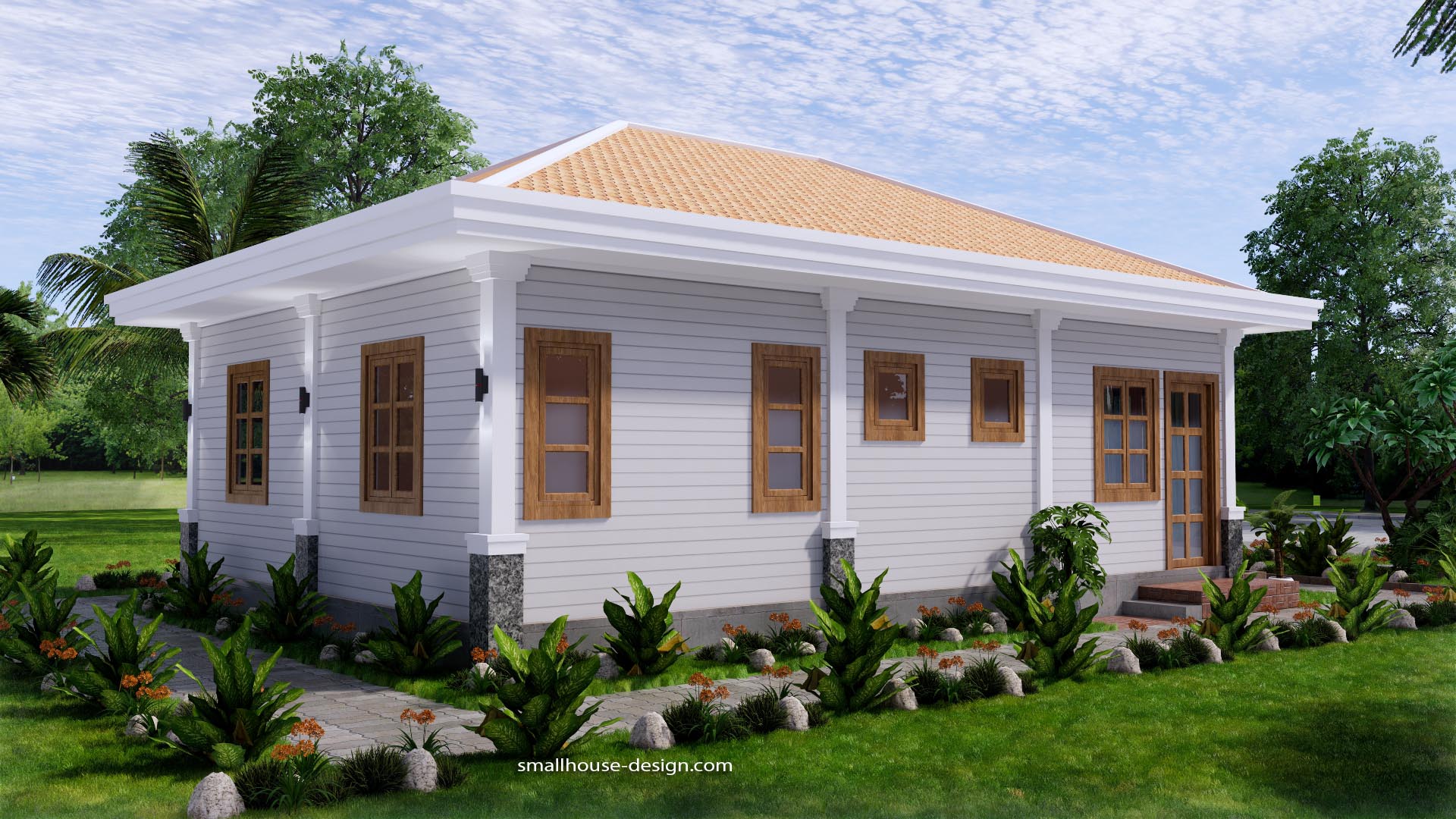

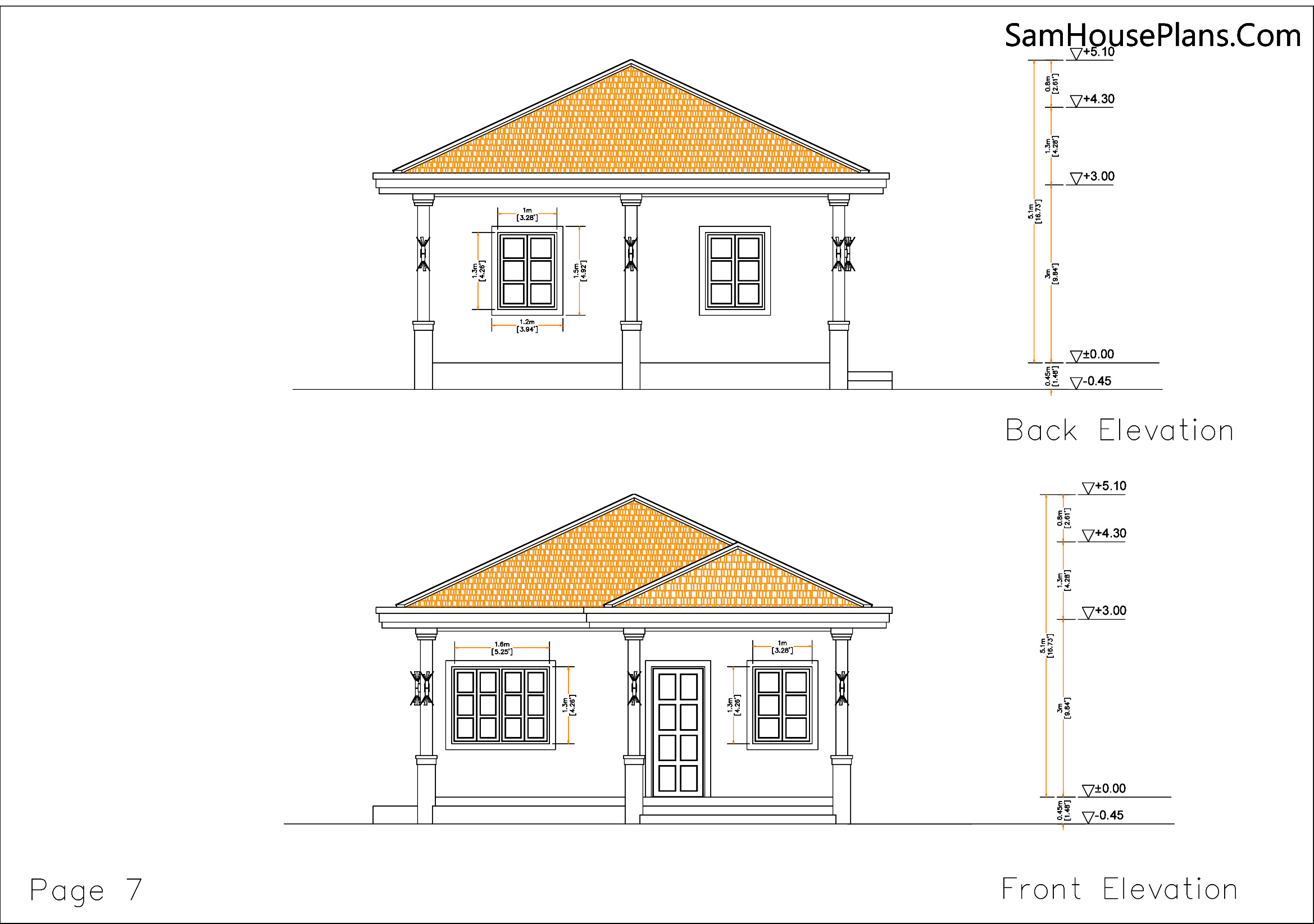

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

House Short Description:

Ground floor:
-Car Park is out side of the house
-Living room
-Kitchen and Dinning
-Storage
-3 Bedrooms
-2 bathrooms

First floor:
Roof tiles

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

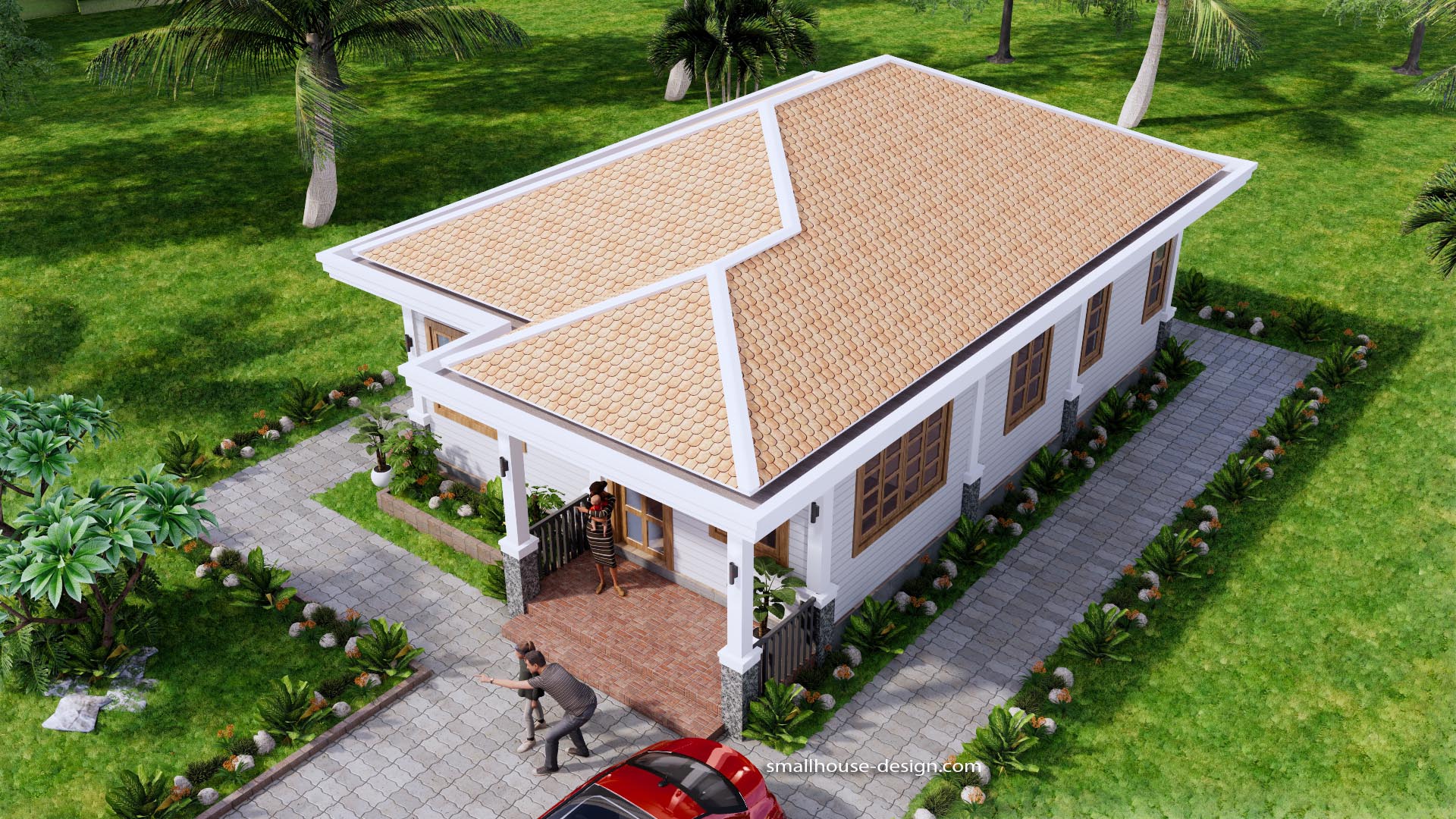

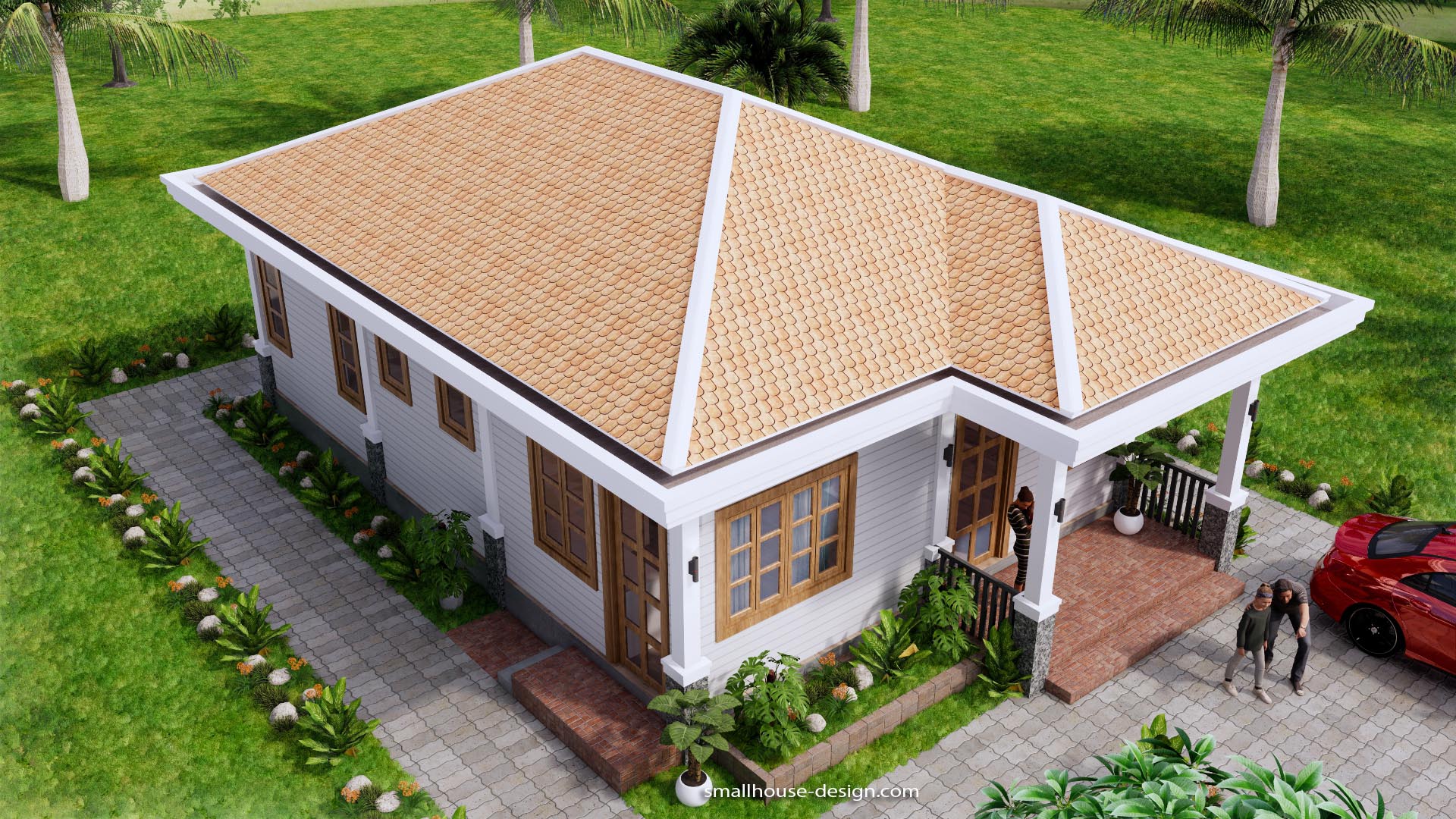

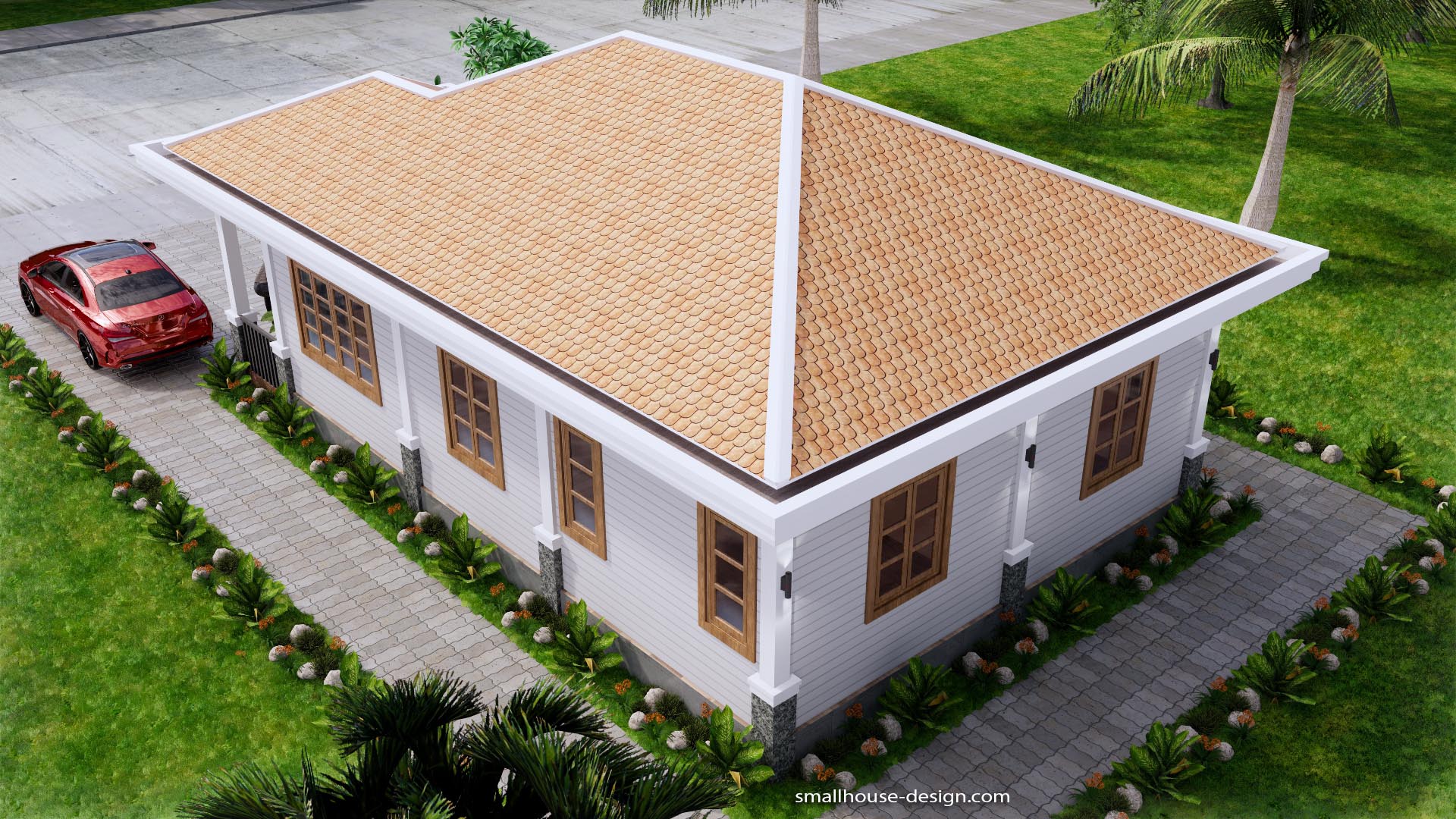

The 3D Bird View:

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.

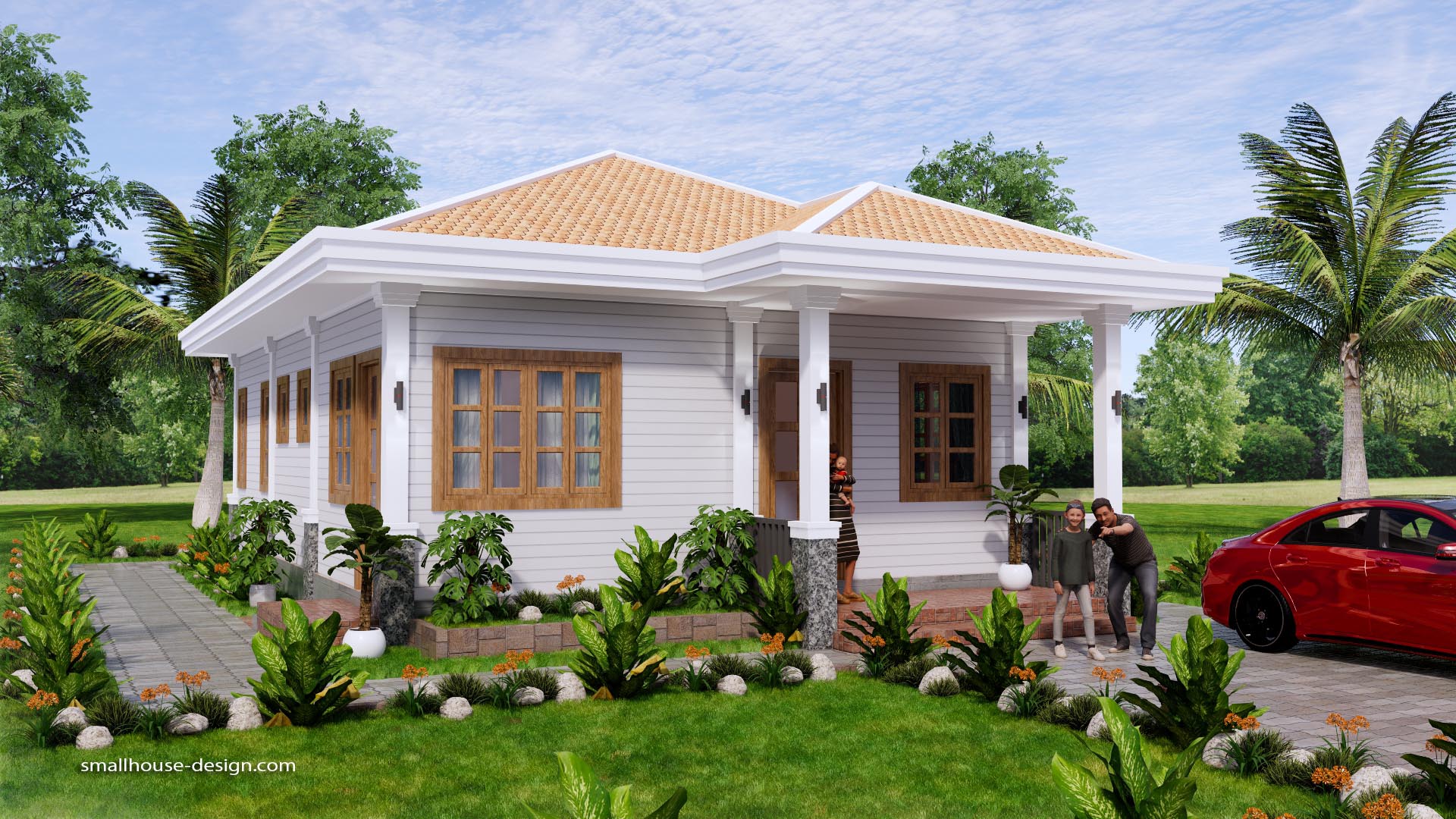

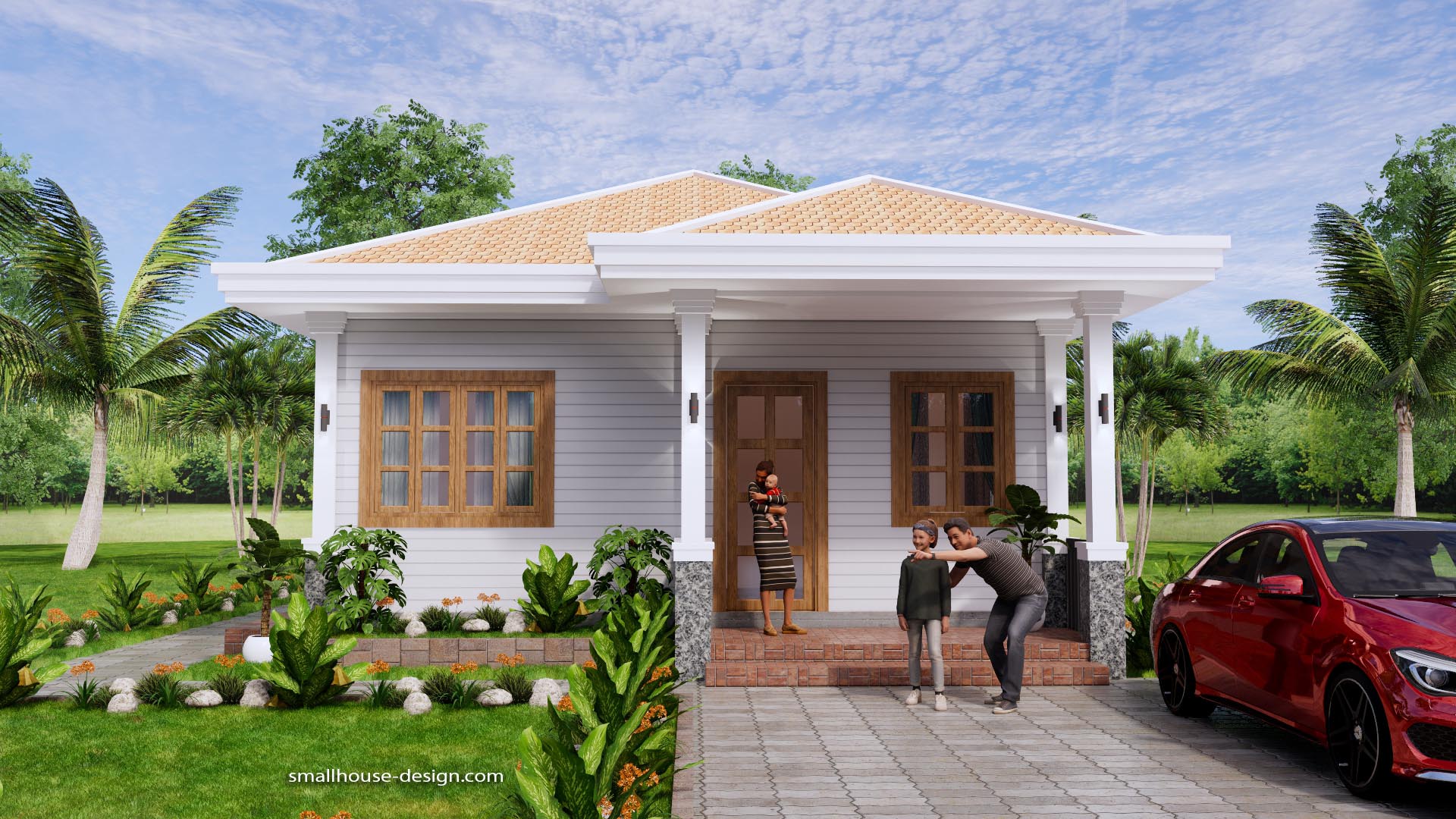

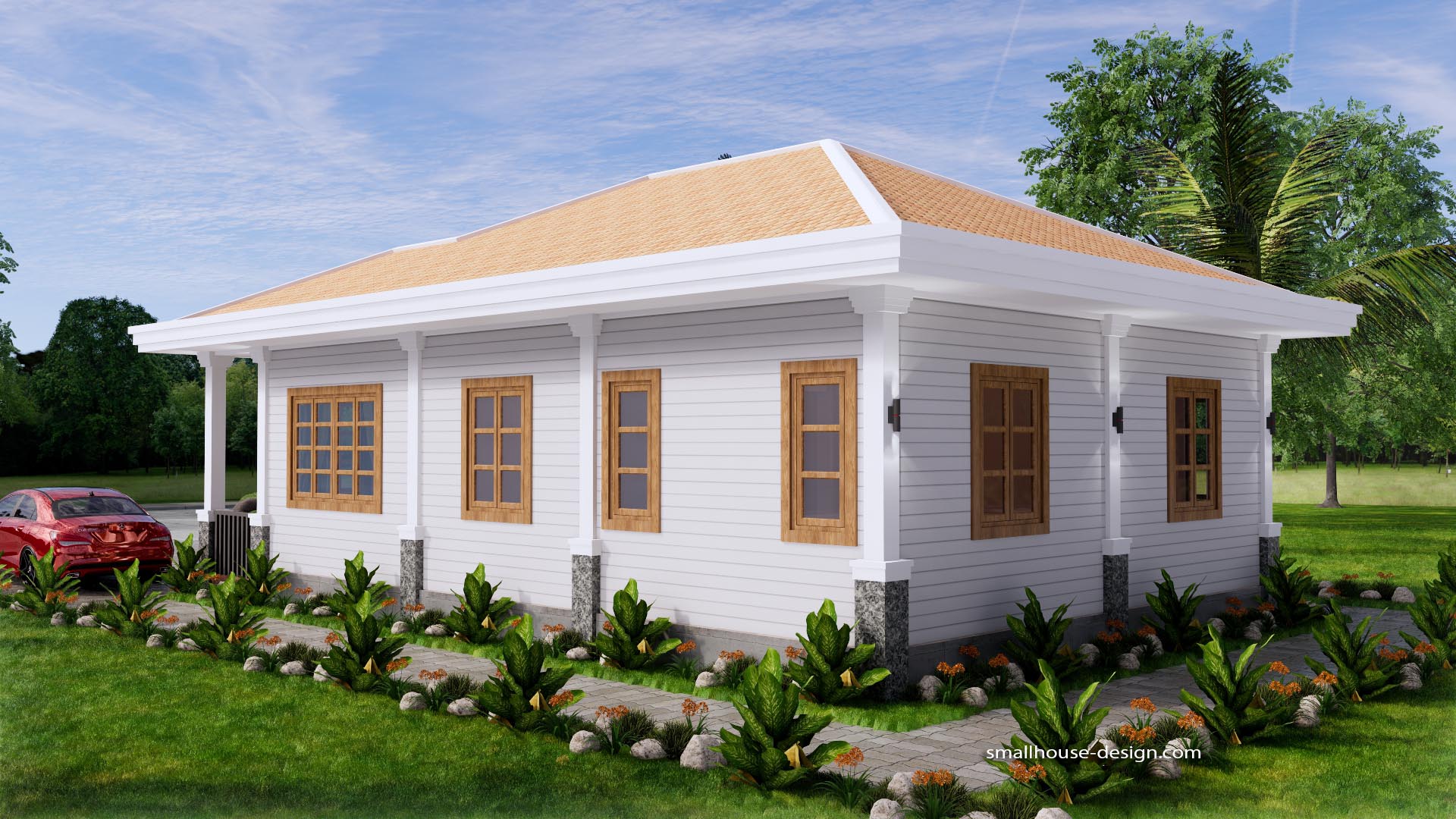

The Elevation 3d:

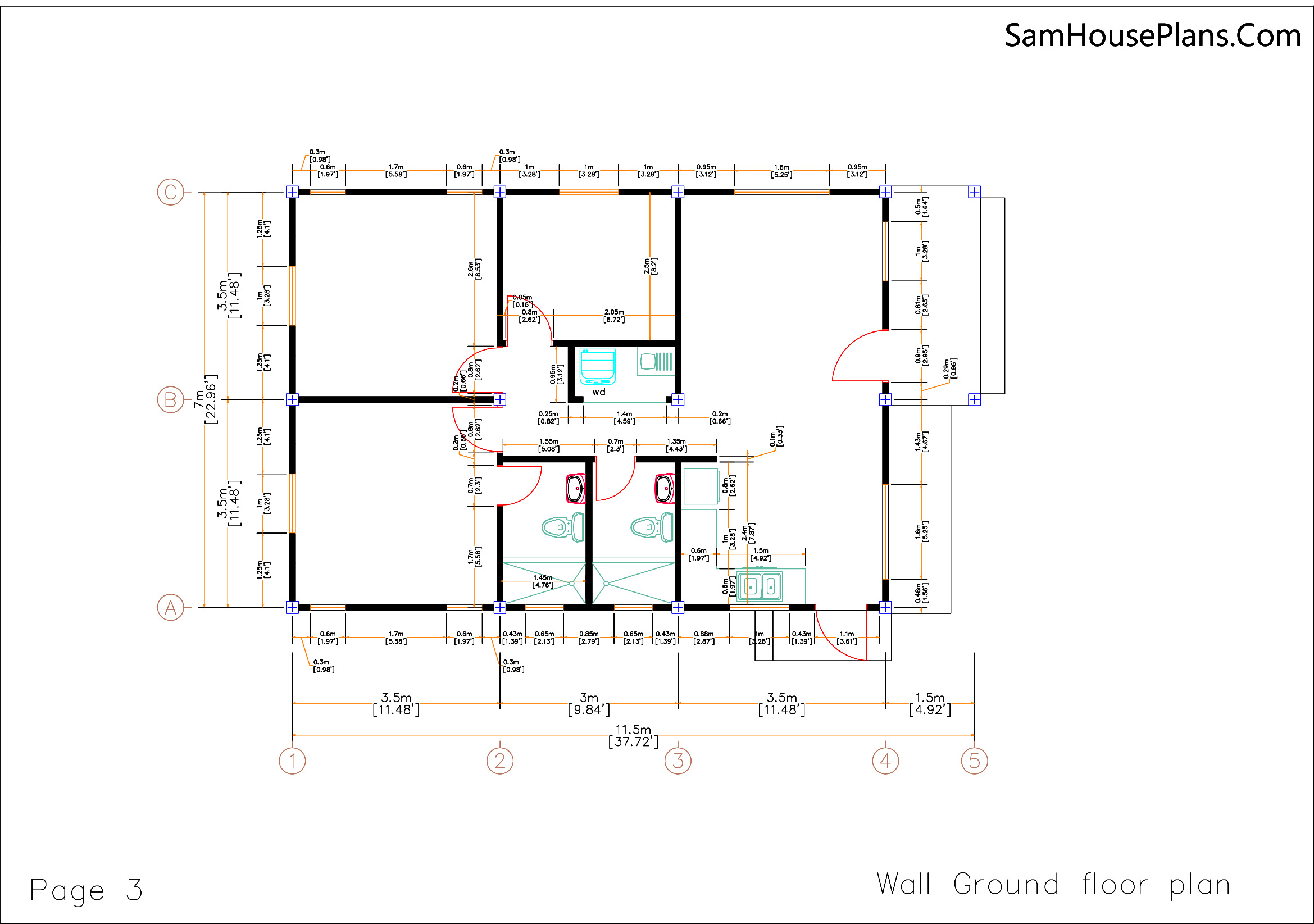

The PDF Layout Plans:

Buy this Small Home Plan 7×10:

This is a PDF Plan available for Instant Download.

3-Bedrooms 2-Baths home with mini washer/dryer room.

Building size: 23 feet wide, 33 feet deep. 7×10 meter 1 floor

Roof Type: Hip roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

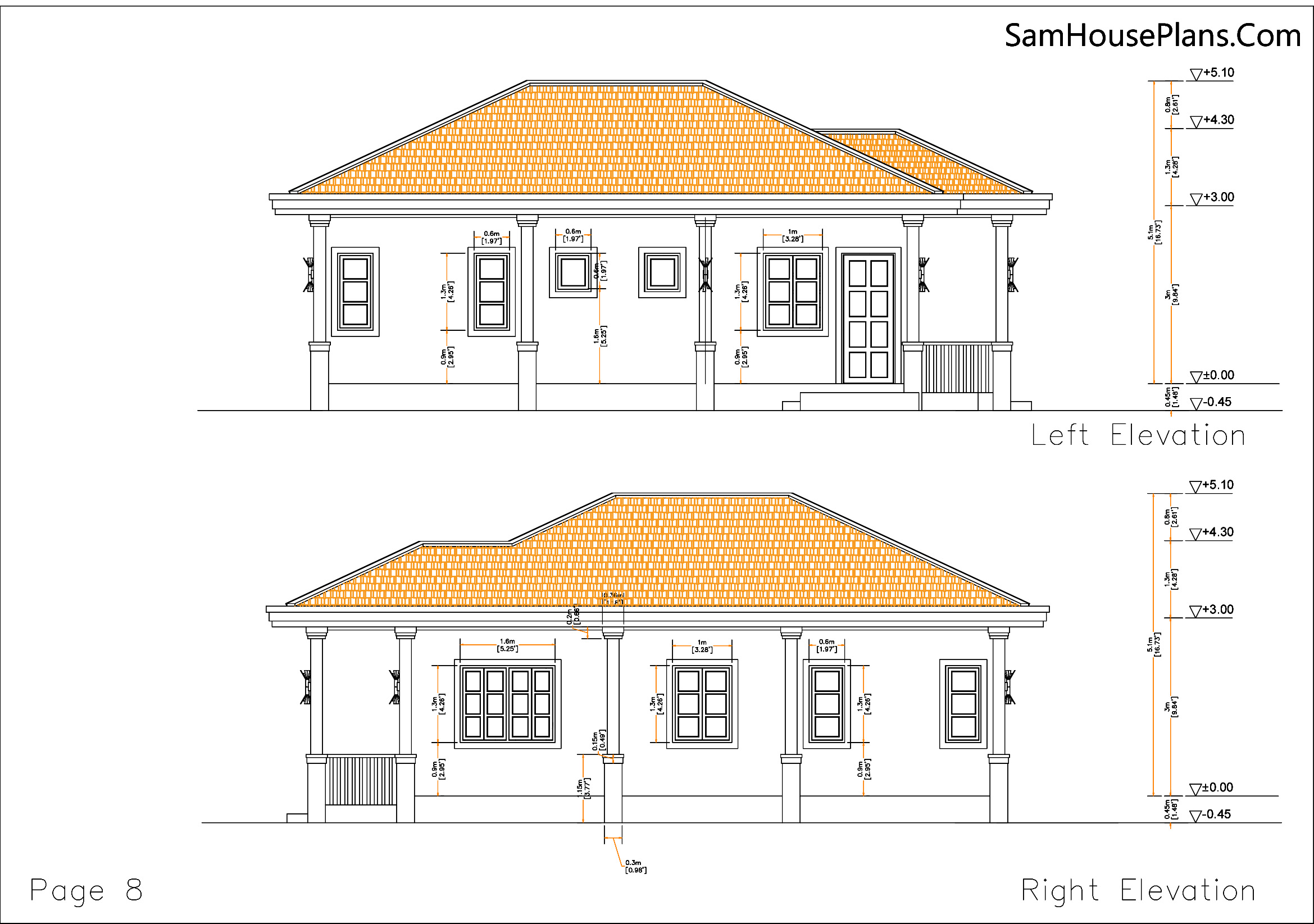

Elevations plans

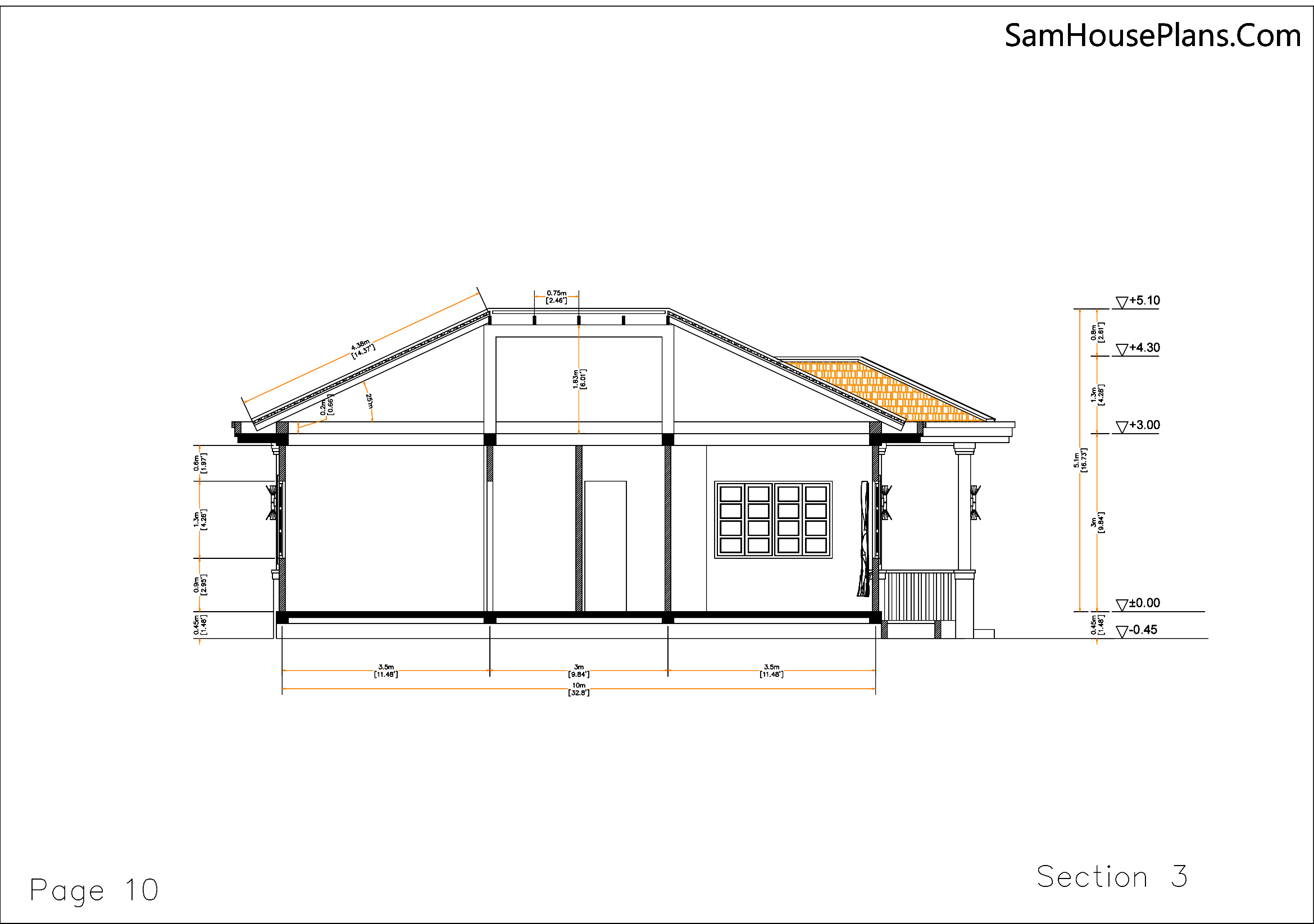

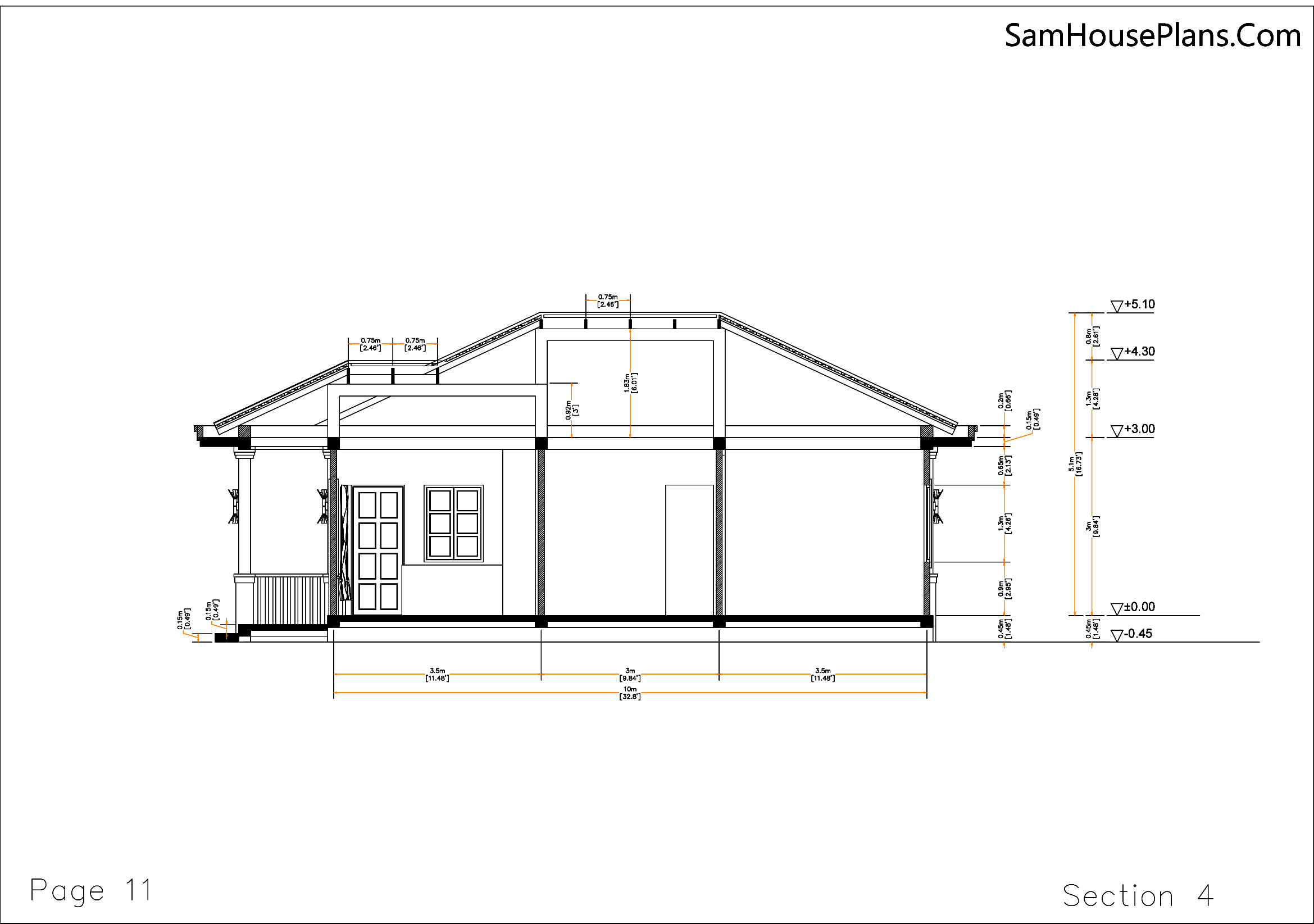

Cross Section plans

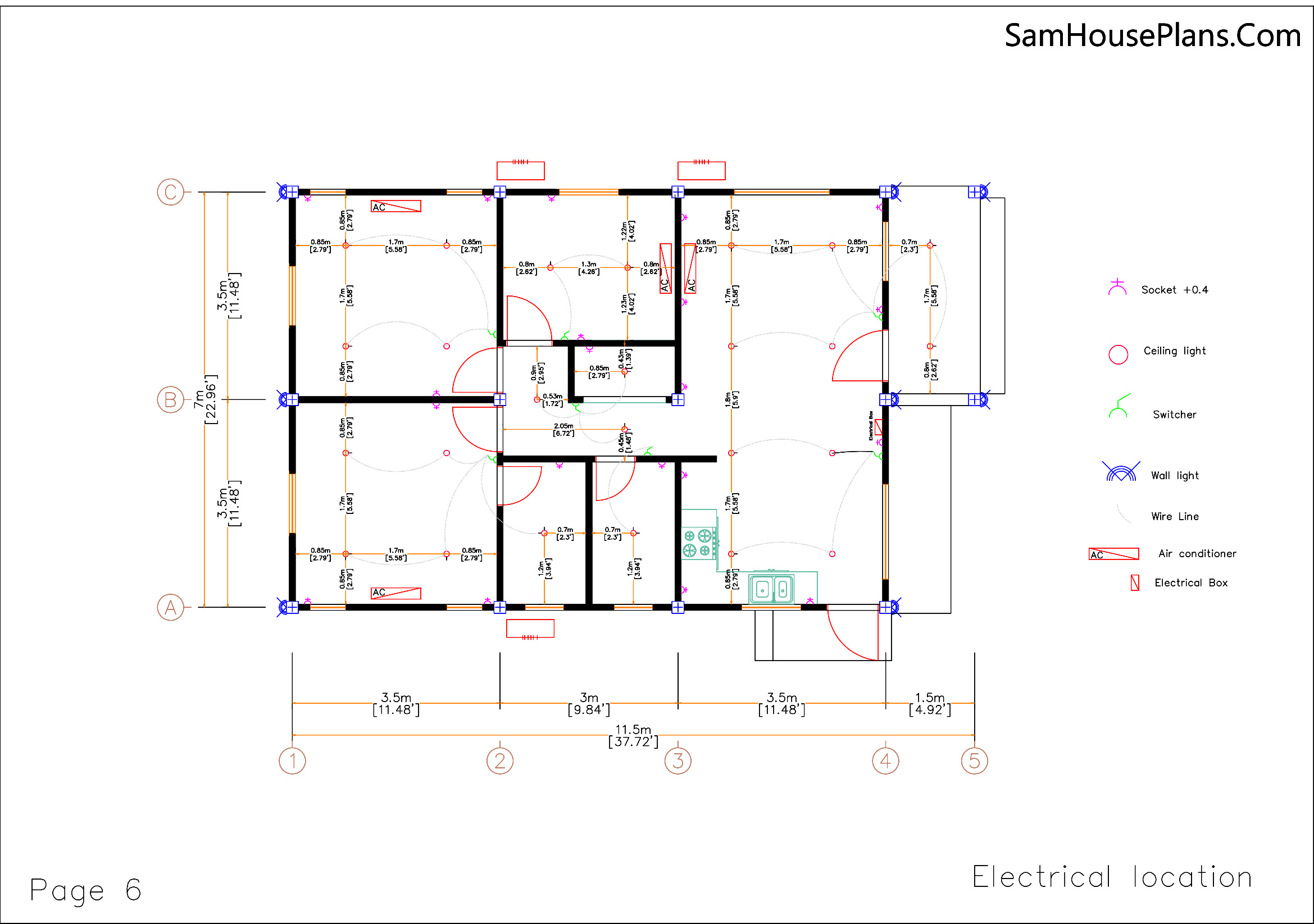

Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
