Small House Plan 6×8.5 PDF Full Plans

Original price was: $99.00.Current price is: $9.99.

Buy this: Small House Design 6×8.5 meters 102 sqm
-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension.
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2018 and Sketchup 2017



SKU: 2075028215963 Categories: , Tag:

Description

Small House Plan 6×8.5 Meters 102 sqm 2 Bedrooms 20×30 Feet. This villa is modeling by SAM-ARCHITECT With 2 stories level. It’s has 2 bedrooms. Est. Price around 30k-50k usd.

Small House Plan 6×8.5 Ground Floor Plans Has:

Ground floor, car Parking is out side of the house. A nice Terrace entrance in front of the house size 4×1 meters. When we are going from front door, a Living 6×4 meters is very perfect for this house it is nice and modern. Brightly Kitchen 2×3.5 meters a long with dining table 2×3.5 meter , it is clean and beautiful. Storage is under the stair.

The Master Bedroom size is 3×4.5 meters has a sliding door to bathroom, it also has a big slide glass door to the small balcony with a queen size bed, Makeup desk and closet. Sitting area 2×2.5 meters have a big glass door to balcony 2×1.5 meters. Multi Bathroom 3×1.5 meter, bedroom 2 size 3×4 meters, and the last is washing room size 2×1.1 meters.

Exterior Small House Plan 6×8.5:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

Small House Plan 6x8.5 PDF Full Plans Exterior 3

The Roof Tile:

Finally, The Flat roof type is made from concrete slap that cover above Gypsum board ceiling . It is make the house look simple and modern.

Small House Plan 6x8.5 PDF Full Plans Exterior 4

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

Small House Plan 6x8.5 PDF Full Plans Exterior 6

House Short Description:

Ground floor:
-Car Park is out side of the house
-Living room
-Kitchen and Dinning
-Storage under the stair

First floor:
-Master Bedroom
-Bedroom 2
-Multi door bathroom, Sitting in hall

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

Buy this house plan:

This is a PDF Plan available for Instant Download.

2-Bedrooms 1-Bath home with mini washer/dryer room.

Building size: 20 feet wide, 30 feet deep. 6×8.5 meter 2 floor
Roof Type: Flat roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

4 Cross Section plans

Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.

The 3D Bird View:

Small House Plan 6x8.5 PDF Full Plans Exterior 1-0

Small House Plan 6x8.5 PDF Full Plans Exterior 3

Small House Plan 6x8.5 PDF Full Plans Exterior 2

Small House Plan 6x8.5 PDF Full Plans Exterior 6

Small House Plan 6x8.5 PDF Full Plans Exterior 7

Small House Plan 6x8.5 PDF Full Plans Exterior 4

Small House Plan 6x8.5 PDF Full Plans Exterior 5

Small House Plan 6x8.5 PDF Full Plans Exterior 1

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.

Small House Plan 6x8.5 PDF Full Plans Interior Living room 2

Small House Plan 6x8.5 PDF Full Plans Interior Living room 3

Small House Plan 6x8.5 PDF Full Plans Interior Living room 4

Small House Plan 6x8.5 PDF Full Plans Interior Living room 5

Small House Plan 6x8.5 PDF Full Plans Interior Stair

Small House Plan 6x8.5 PDF Full Plans Interior Dining room

Small House Plan 6x8.5 PDF Full Plans Interior Dining room 1

The Elevation 3d:

The PDF Layout Plans:

01 Footing Beam column Small House Plan 6x8.5 PDF Full Plans

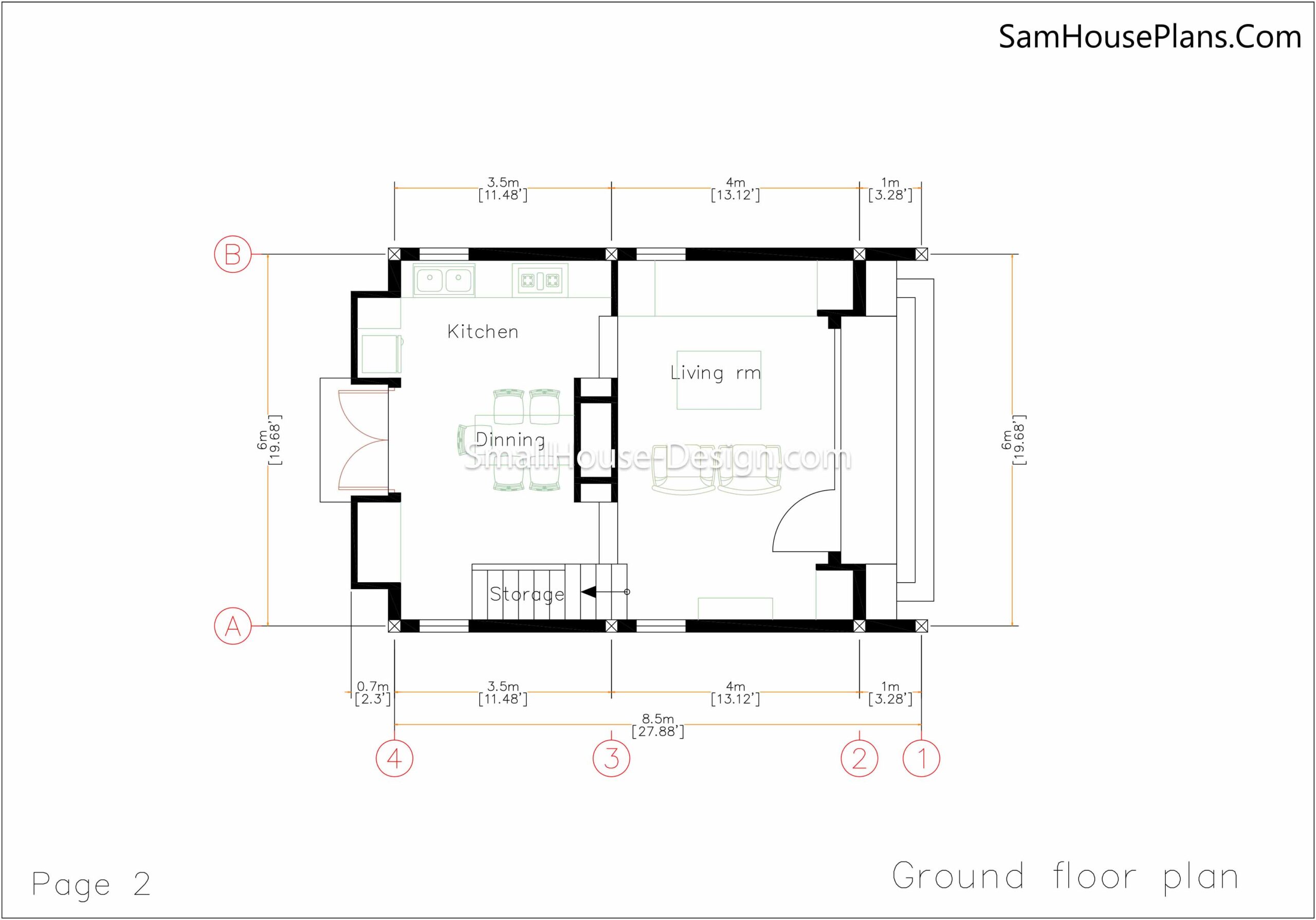

Small House Plan 6x8.5 Ground floor plan

03 wall ground Floor Plan Small House Plan 6x8.5 PDF Full Plans

04 Beam First Floor Plan Small House Plan 6x8.5 PDF Full Plans

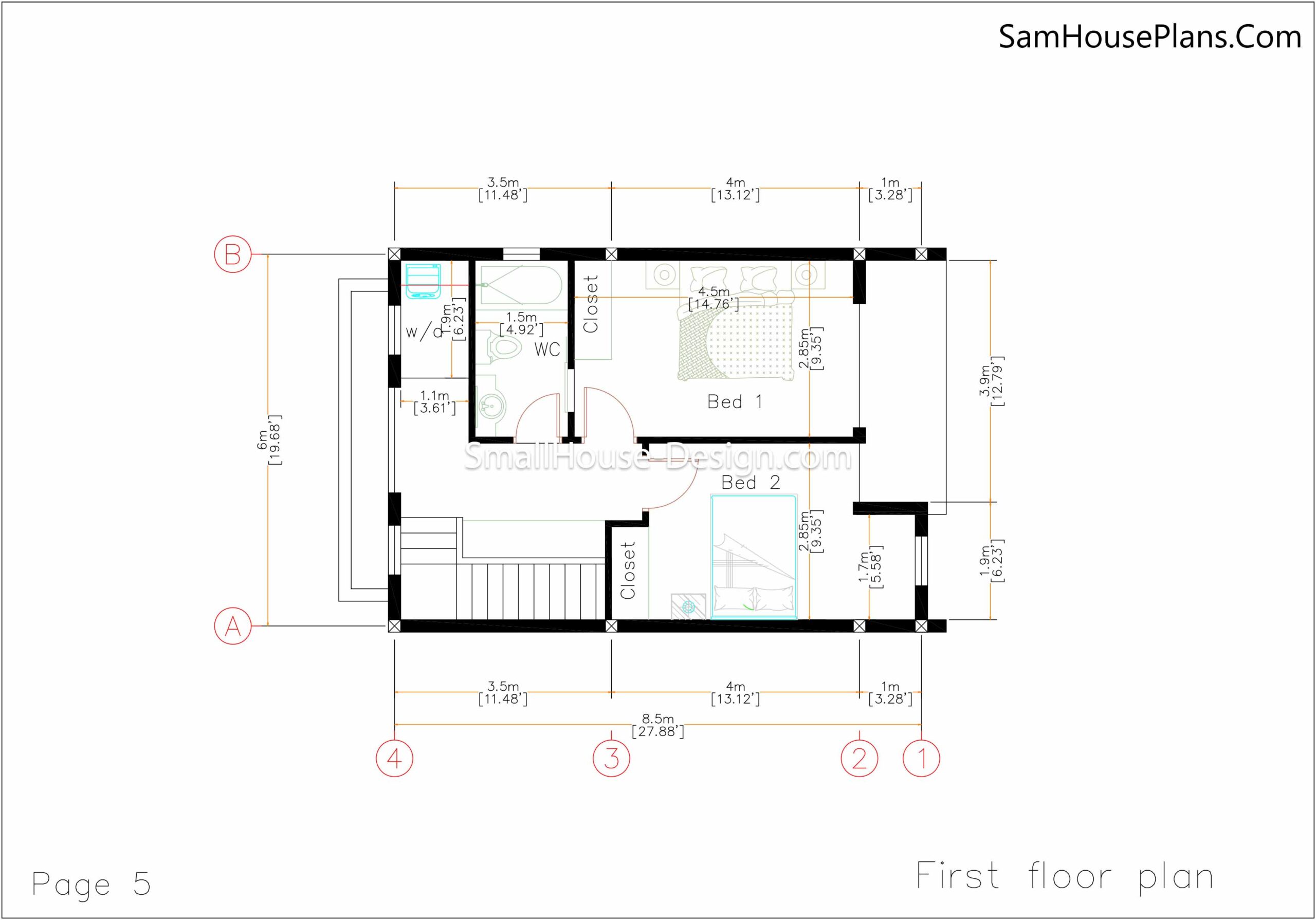

Small House Plan 6x8.5 first floor plan

06 Wall First Floor Plan Small House Plan 6x8.5 PDF Full Plans

07 Beam Roof Plan Small House Plan 6x8.5 PDF Full Plans

08 Roof plan Small House Plan 6x8.5 PDF Full Plans

09 Front Back elevation plan Small House Plan 6x8.5 PDF Full Plans

10 Left elevation plan Small House Plan 6x8.5 PDF Full Plans

11 Right elevation plan Small House Plan 6x8.5 PDF Full Plans

12 Section 1

13 Section 2

14 Section 3-4 Small House Plan 6x8.5 PDF Full Plans
