20×30 Single Small House Plan 2 Bedrooms 1 Bathroom 6×9 Meter PDF Full Plans. This villa is modeling with 2 stories level. It’s has 4 bedrooms. Est. Price around 25-30k usd construction only, furniture not include.

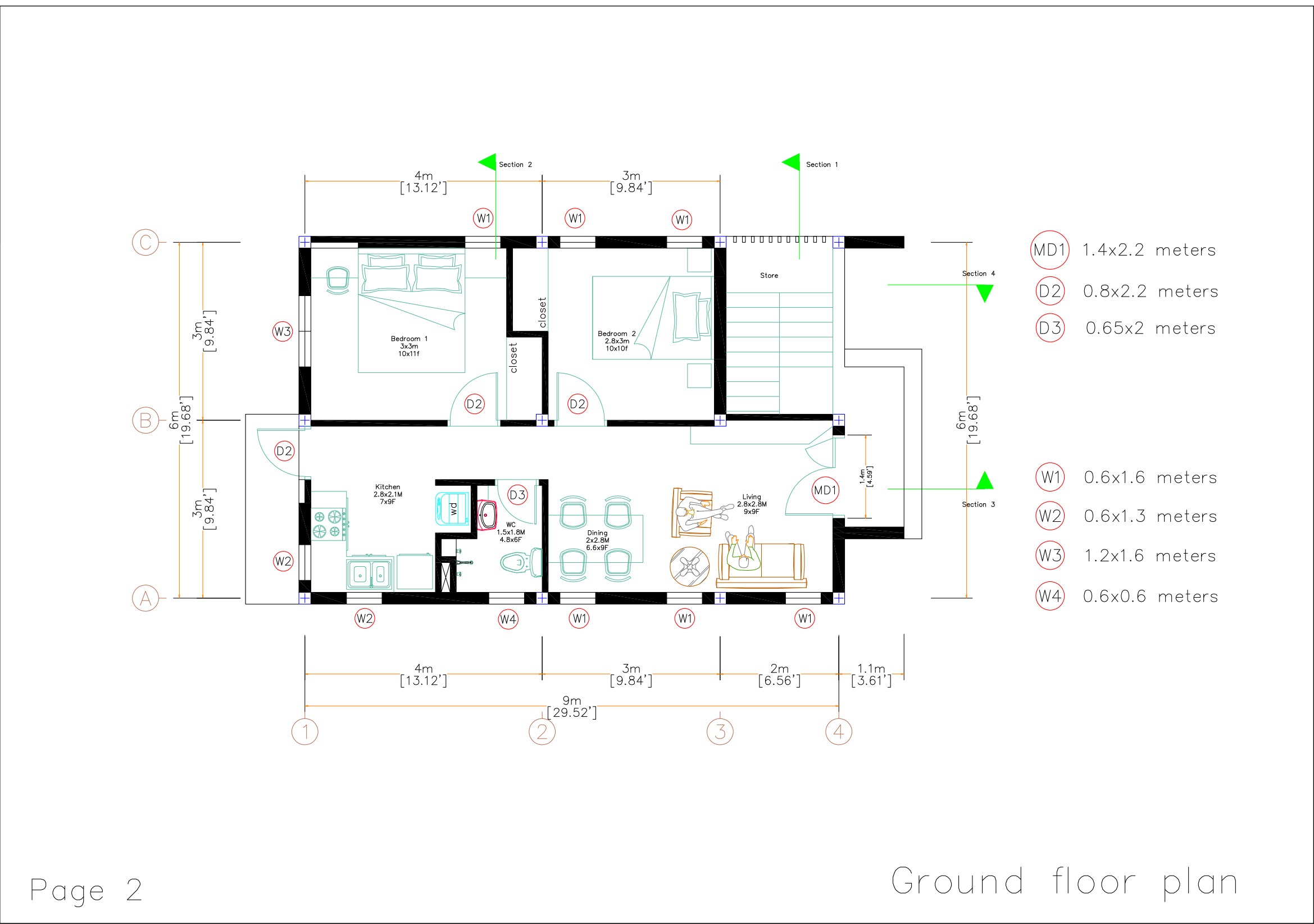

20×30 Single Small House Plan Ground Floor Plans Has:
This is a single small house plan that can rent out other unit at future update. With this lovely house plan, Car Parking is out side of the house. A small Living area of 2.8×2.8 meter is very perfect for the family, dining area 2×2.8 meter. Small Brightly Kitchen area 2.8×2.1 meter with washing machine. A multi Bathroom size 1.5×1.8 meters.
The Master Bedroom size is 3×3 meters, it has a big window at the back. Bedroom 2 size is 2.8×3 meter. The first floor plan is the same size as ground layout plan.
Exterior 20×30 Single Small House Plan:
Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

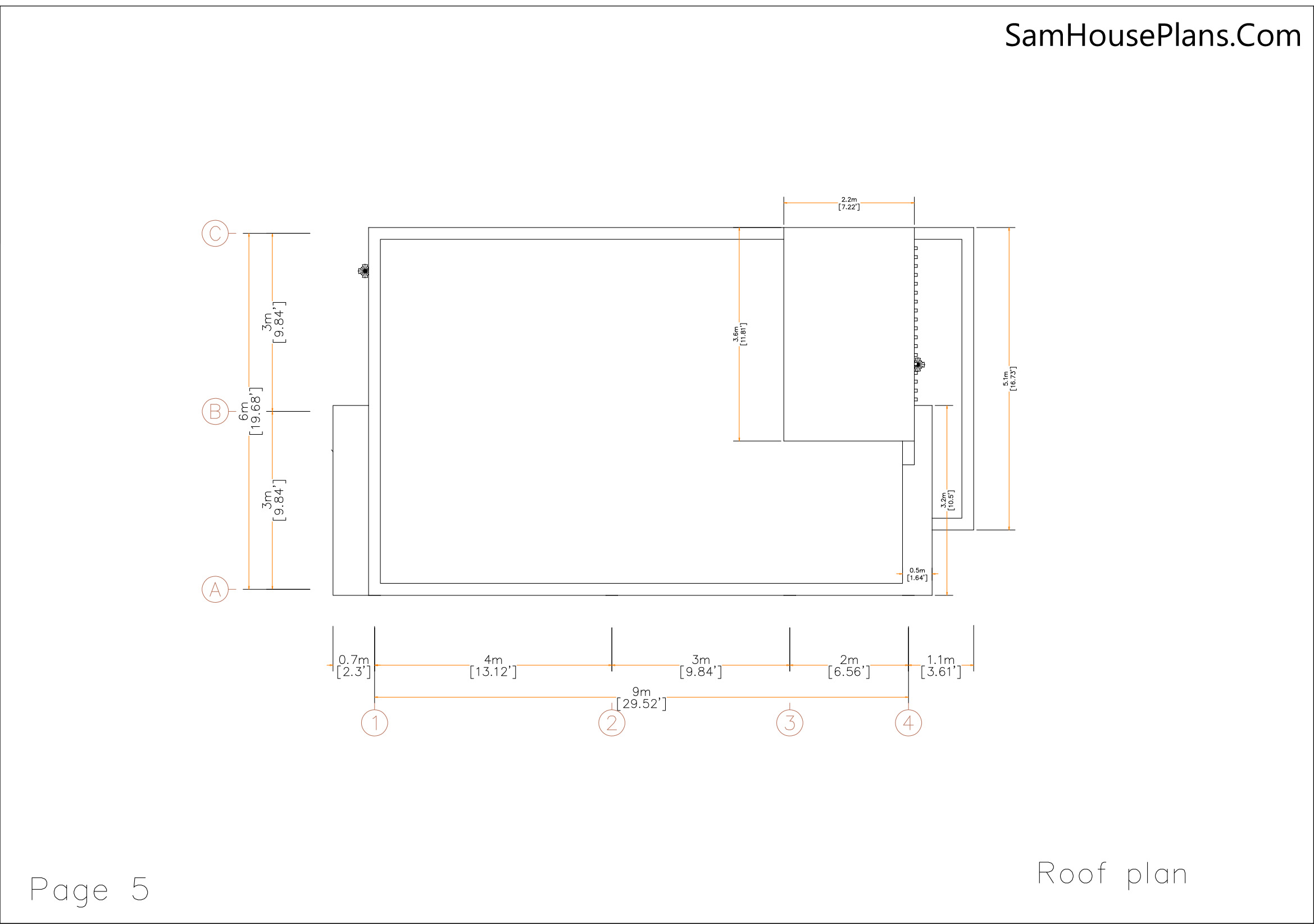

The Terrace Roof Tile:
Finally, The Terrace roof type is made from Concrete slap roof that cover above Gypsum board ceiling . It is make the house look simple and modern.

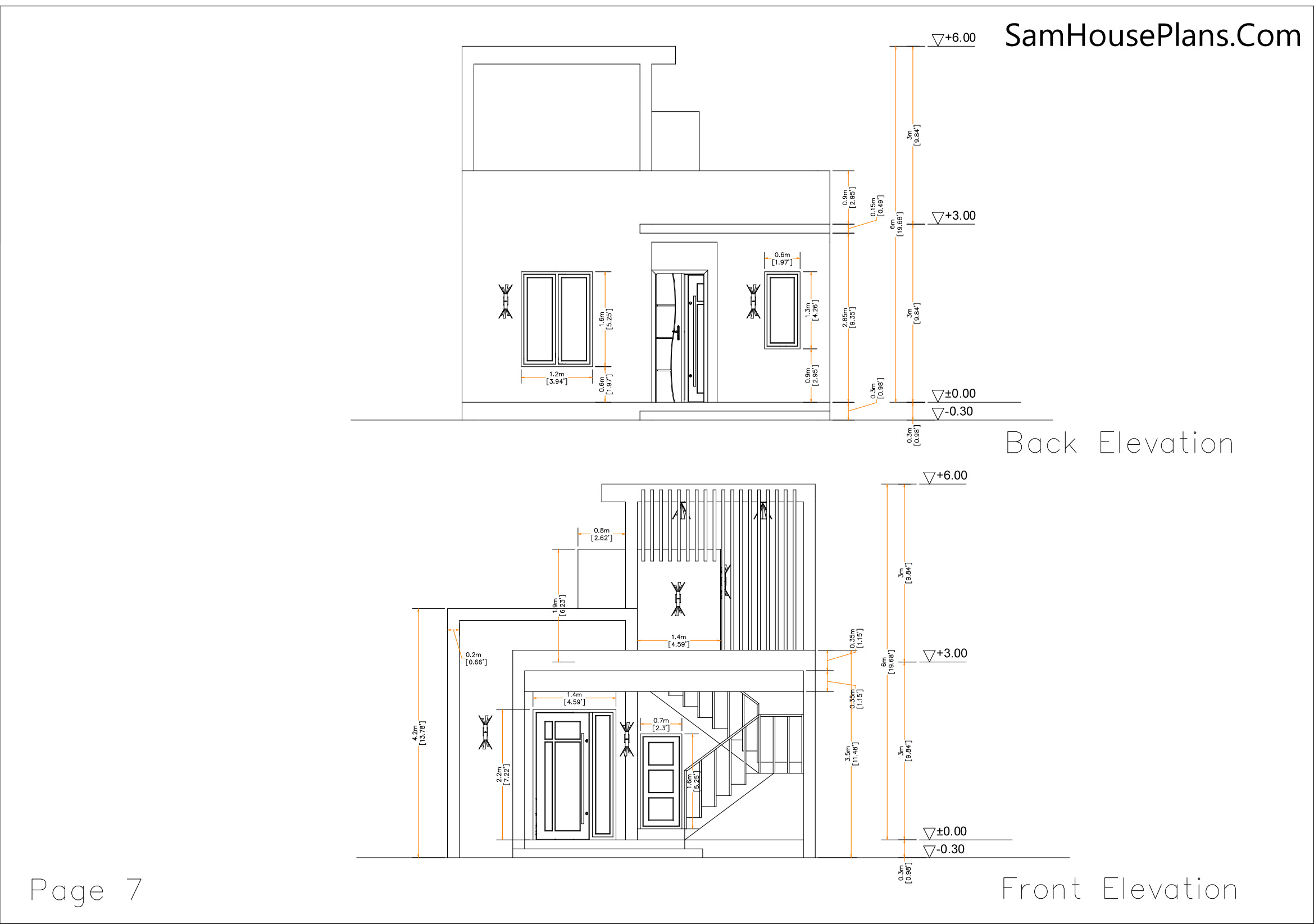

The Back Elevation:
Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.
House Short Description:
-Out door Car Park
-Kitchen and Dinning
-Terrace slap for future update
PLEASE MAKE SURE YOU HAVE CHECK the free sample plans
The 3D Bird View:
Interior design 3d:
For interior design of this house we do a simple design as it will lower cost the price to build.

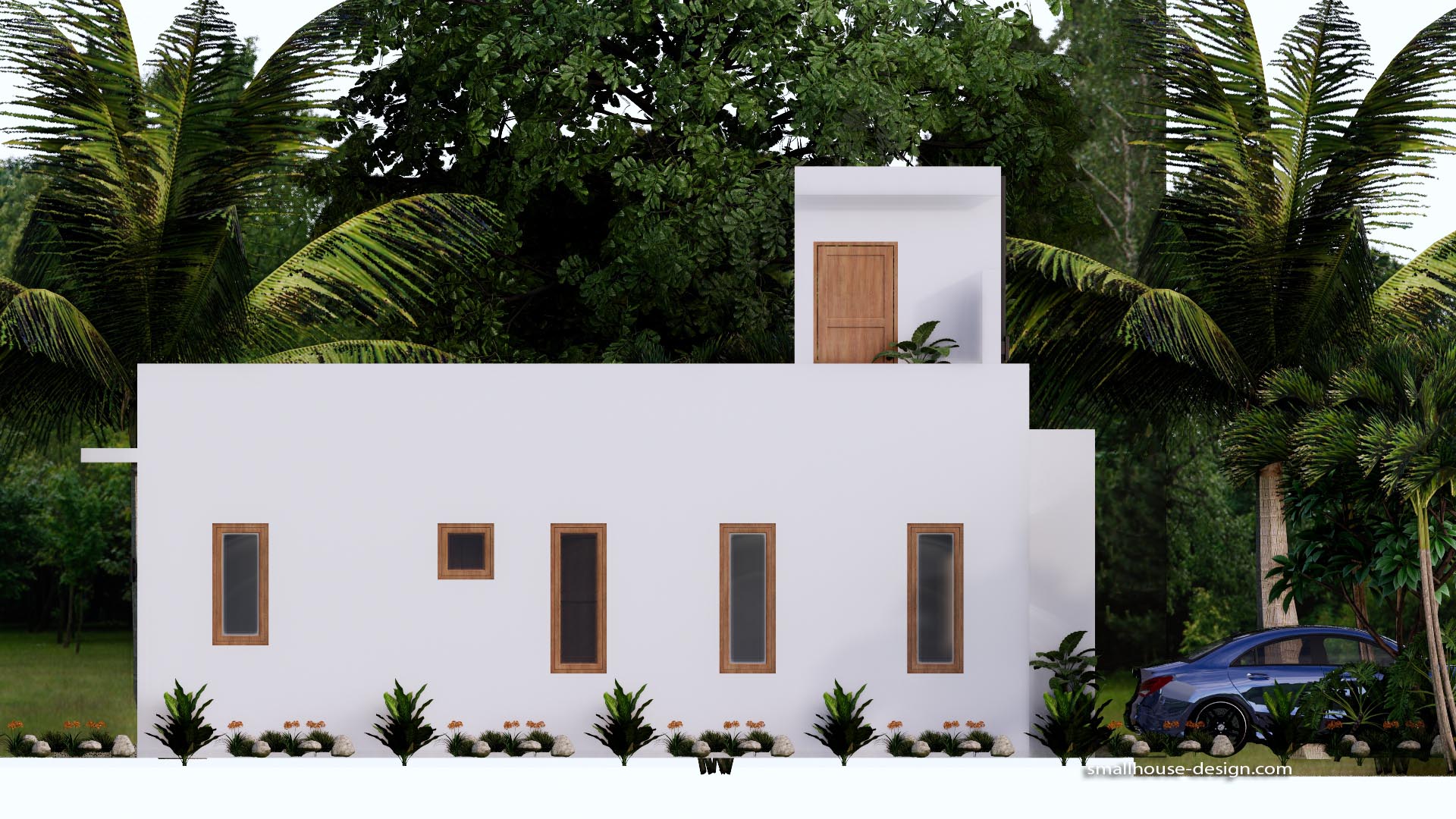

The Elevation 3d:
The PDF Layout Plans:
Buy this 20×30 Single Small House Plan:
This is a PDF Plan available for Instant Download.
2-Bedrooms 1-Baths home with mini washer/dryer room.
Building size: 20 feet wide, 30 feet deep. 6×9 meter 2 floor
Roof Type: Terrace roof (cement tile or other supported type)
Foundation: Concrete or other supported material
For the reverse plan, please see other Model.

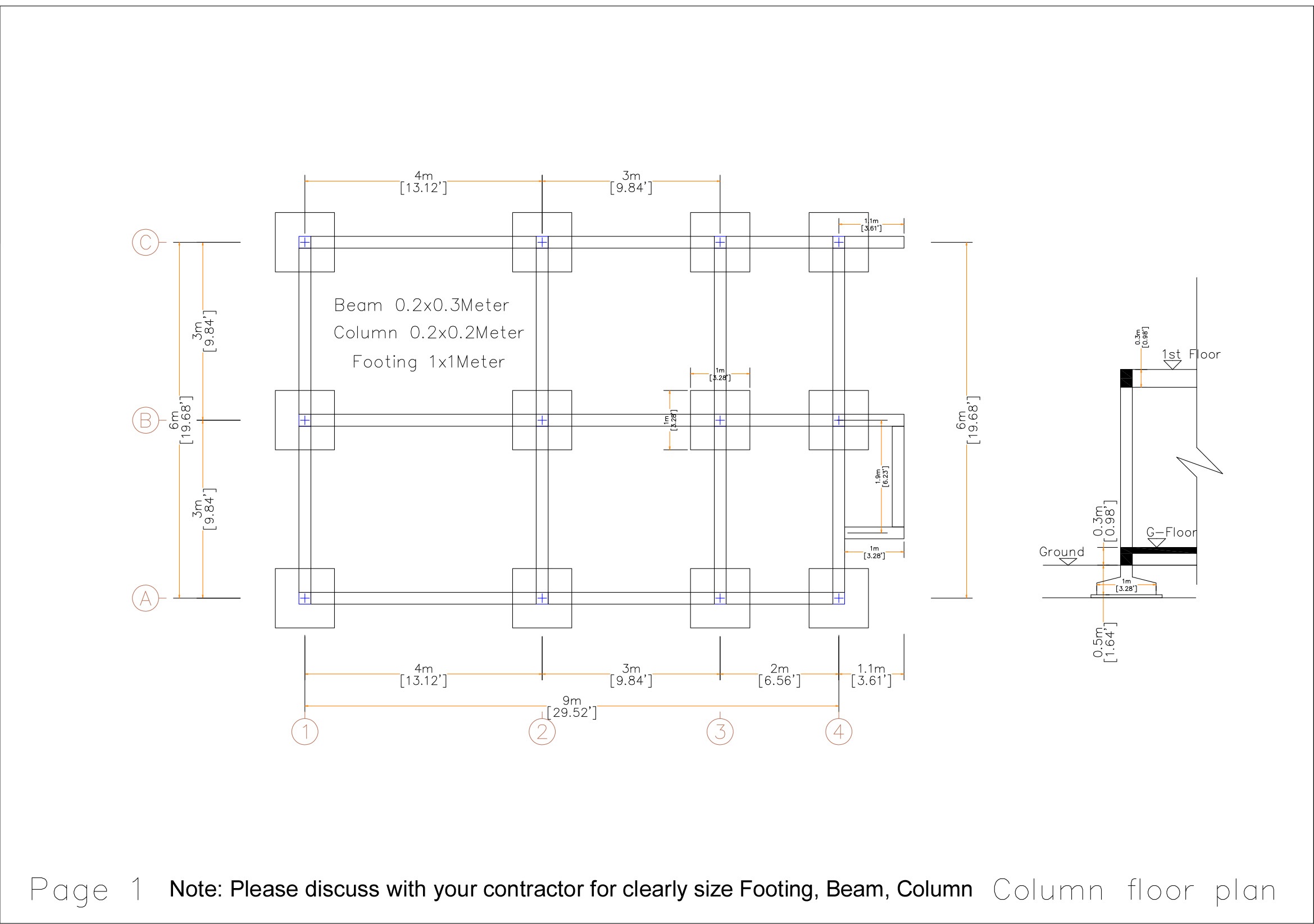

Footing, Beam, Column Location plan
Exterior / Interior wall Dimension Plan

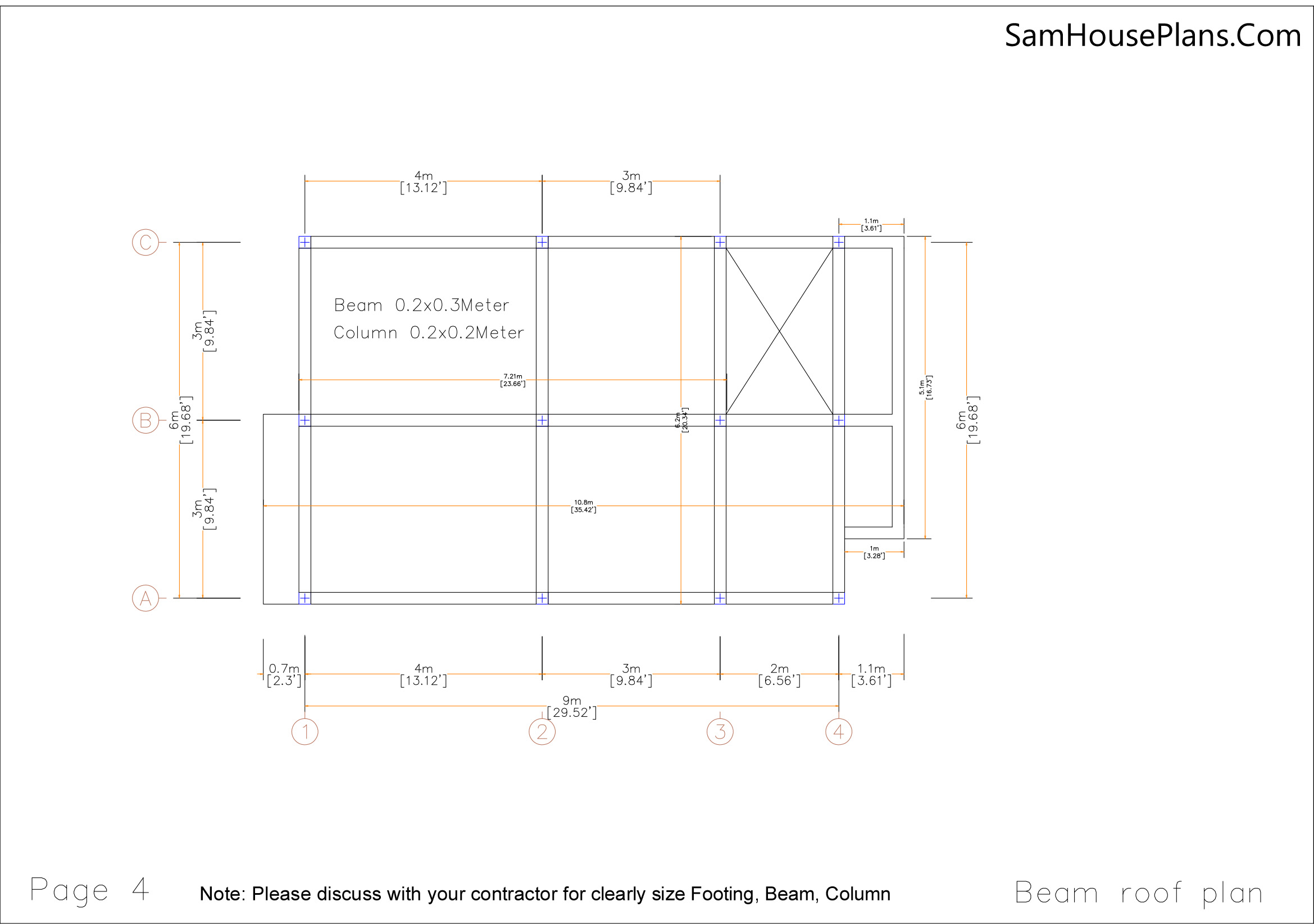

Roof Beam Plan

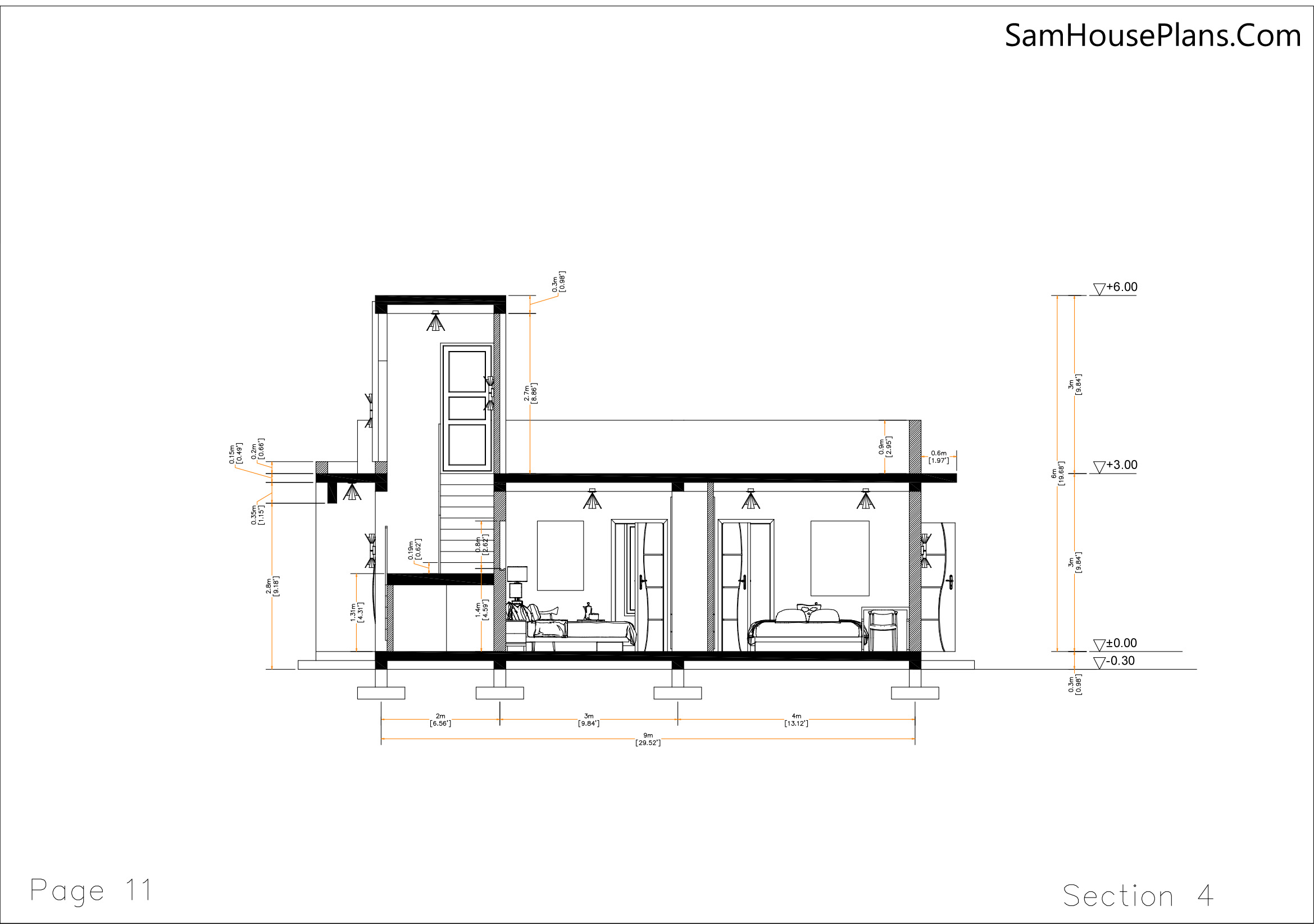

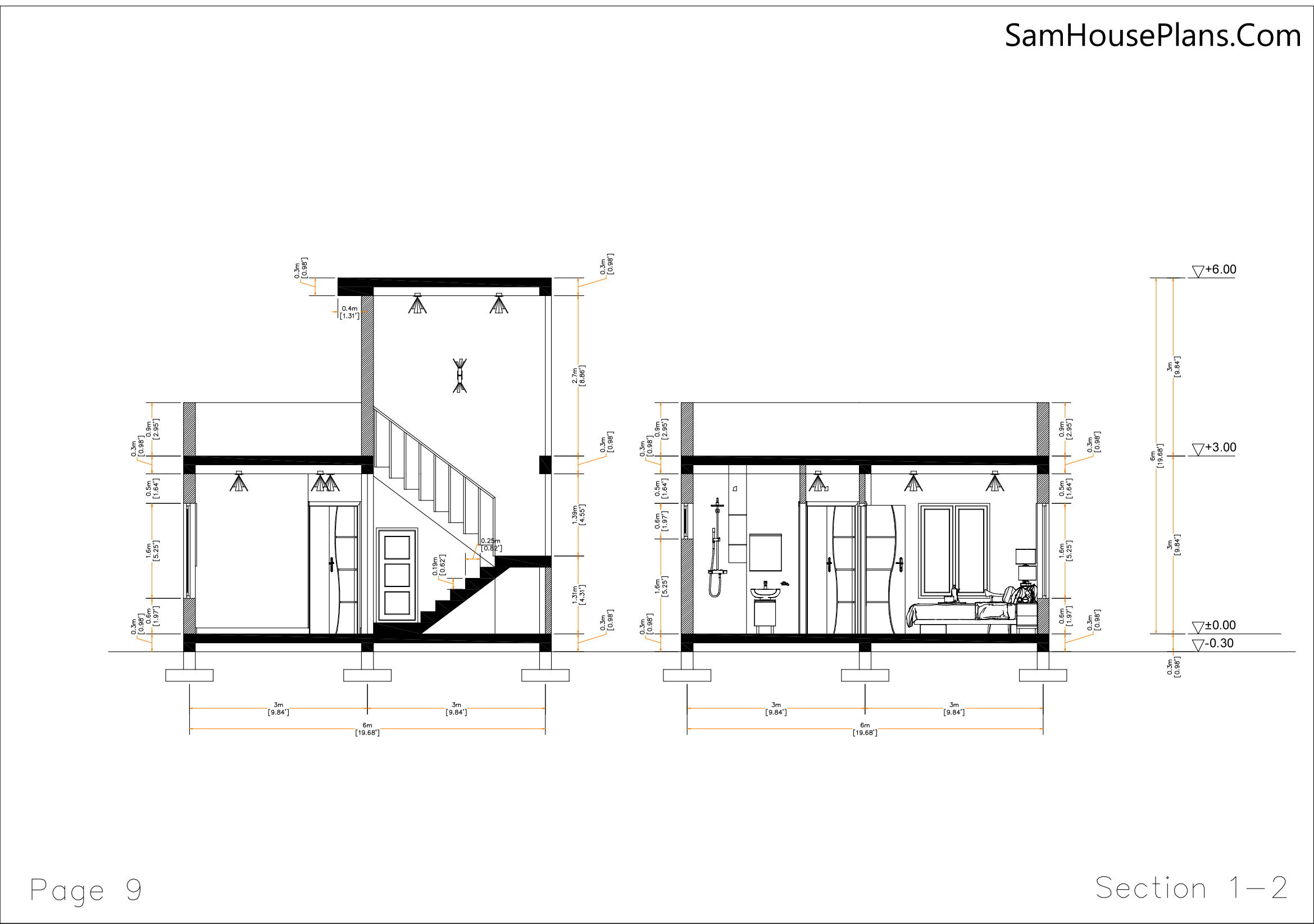

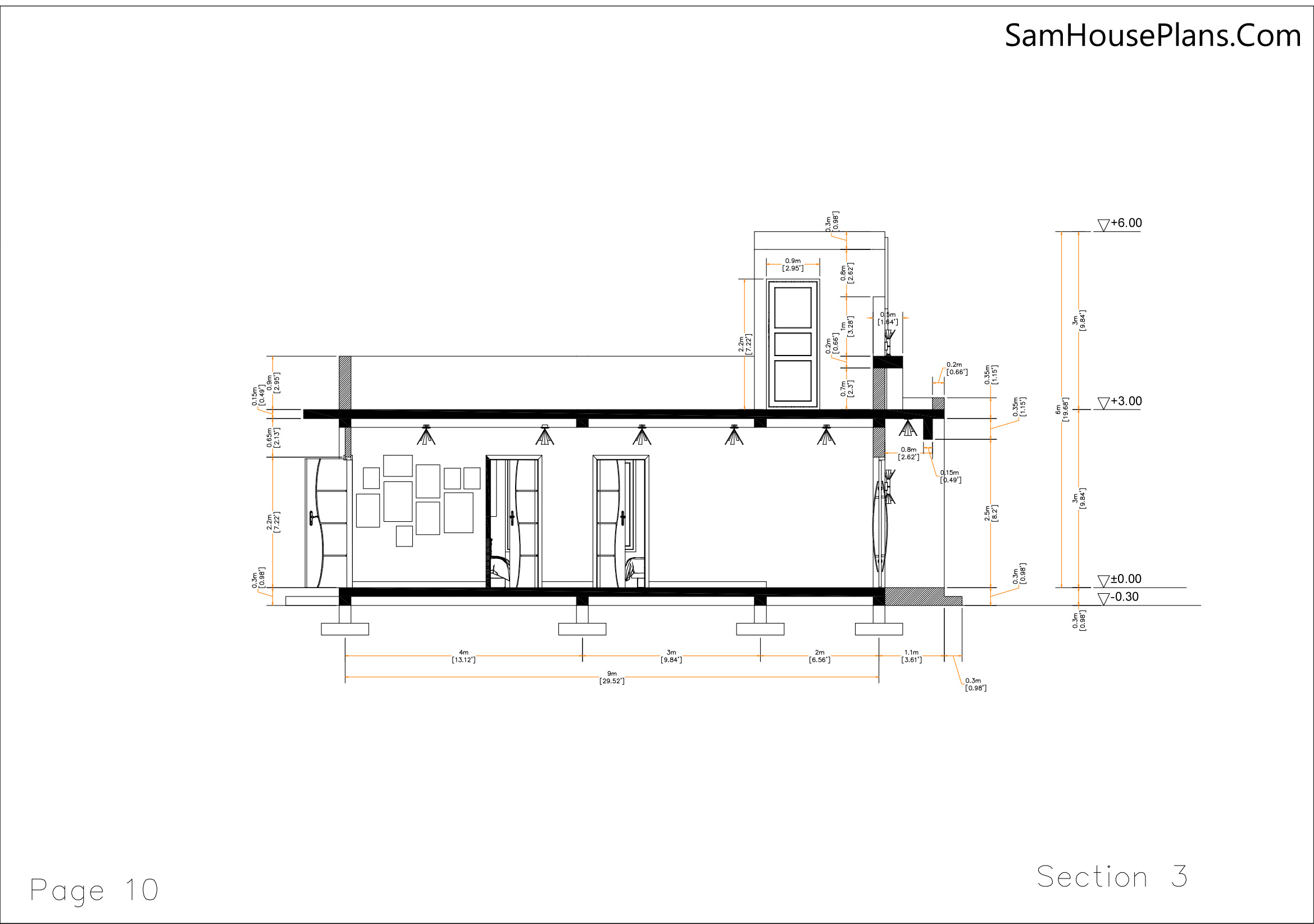

Cross Section plans
You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.
Plan prints to A4 paper.
Unfortunately I’m unable to do custom plans at this time.
These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.
I do not represent nor imply myself to be a licensed architect and/or licensed engineer.
Enjoy these plans but use them at your own discretion.
Your files will be available to download once payment is confirmed.
I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.
