Sale!

Small House Design 23×23 Feet 7×7 Meter

$19.99

Buy this: Small House Design 7×7 Meter 23×23 Feet Gable Roof

-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension. Section
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2018 and Sketchup 2019

Click Here to Download the Sample Plan

Category: Tag:

Description

Small House Design 23×23 Feet 7×7 Meter. Introduction to a Simple Design House with 7 meter wide and 7 meters long. It has 1 bedroom with full completed function in the house. You will love this Small House Design 23×23 Feet 7×7 Meter.

Small House Design 23×23 Feet 7×7 Meter floor plan Detail:

The best way to build a small cabin is to use the plans provided by the site. These plans are designed to be easy to understand and follow. They have been designed by experts who have years of experience in building cabins, so you can trust that they are accurate and reliable. There are also free resources on the site including videos and blogs which will help you learn more about building small cabins, as well as tips on how to do it yourself.

"Small

The Roof Tile:

Finally, The Gable roof type is made from Cement tiles (or your local roof tiles) that cover above Gypsum board ceiling . It make the house look clean and modern.

"Small

Exterior House Design:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

House Short Description:

Ground floor layout plan:

-Car Parking and garden
-Living room,
-Dining room
-Kitchen
-1 Bathroom
-Storage
-washing room
– 1 bedroom

First floor layout plan:

-0 Bedrooms with 0 bathroom
-0 Balcony

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

Check the Plans for more detail:

Are you looking for a small cabin plan that will give you the space you need? Look no further! This cabin plan is just what you need. It has enough room for a bed and bathroom, in addition to a kitchenette. You can use this plan as an office or even a home office.

This cabin plan is 7 x 7 meters (23 x 23 feet) and has an exterior height of 2 meters (6 feet). The front elevation of the cabin has a small porch area with stairs leading up to it. The back elevation has two windows and sliding glass doors leading into the living room area.

There is also an interior staircase that connects all three levels of this cabin design together.

The 3D Bird View:

Small House Design 7x7 Meter 23x23 Feet Gable Roof 4

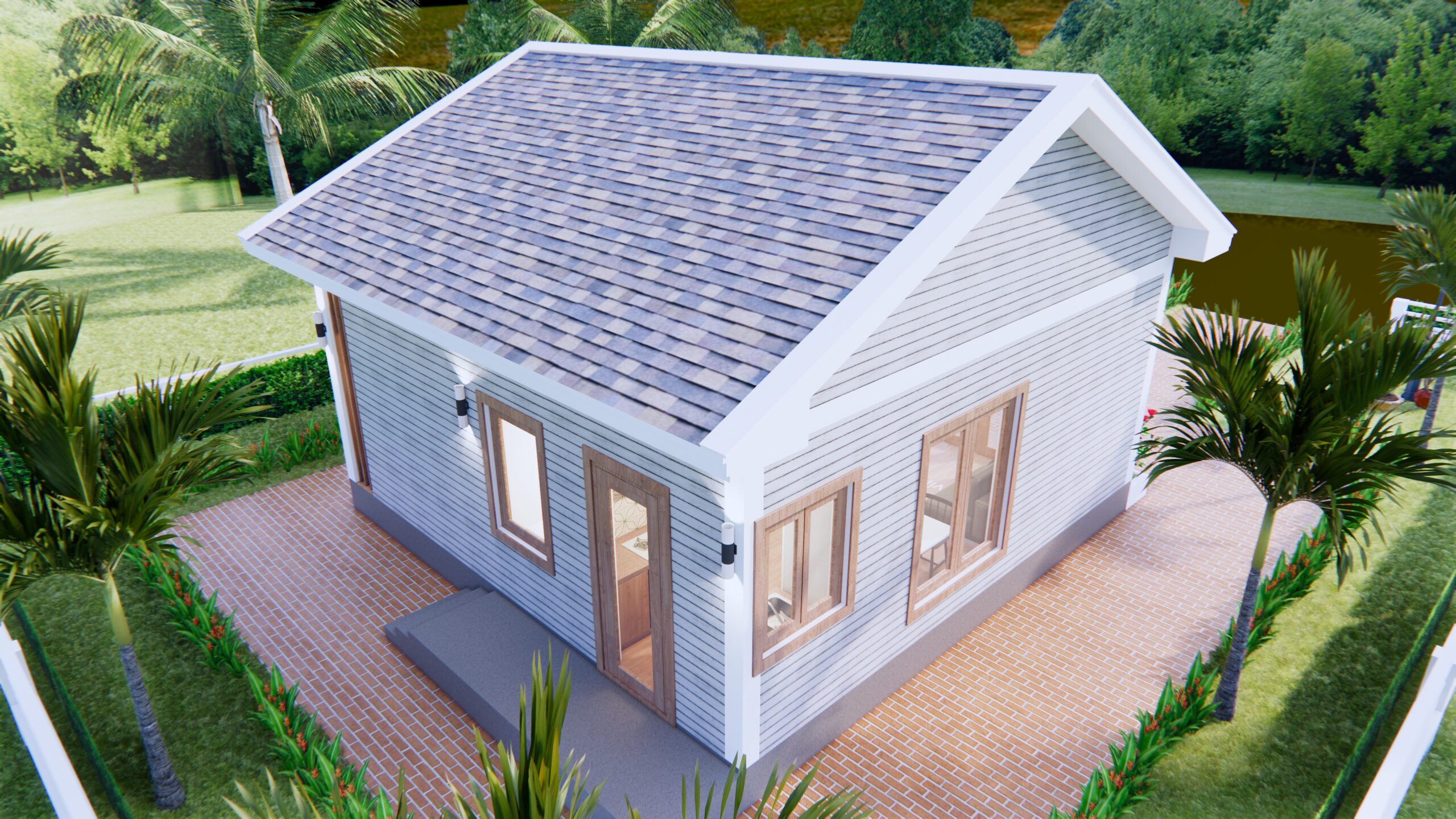

Roof House 3d view
Small House Design 23x23 Feet 7x7 Meter
Back House 3d view

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.

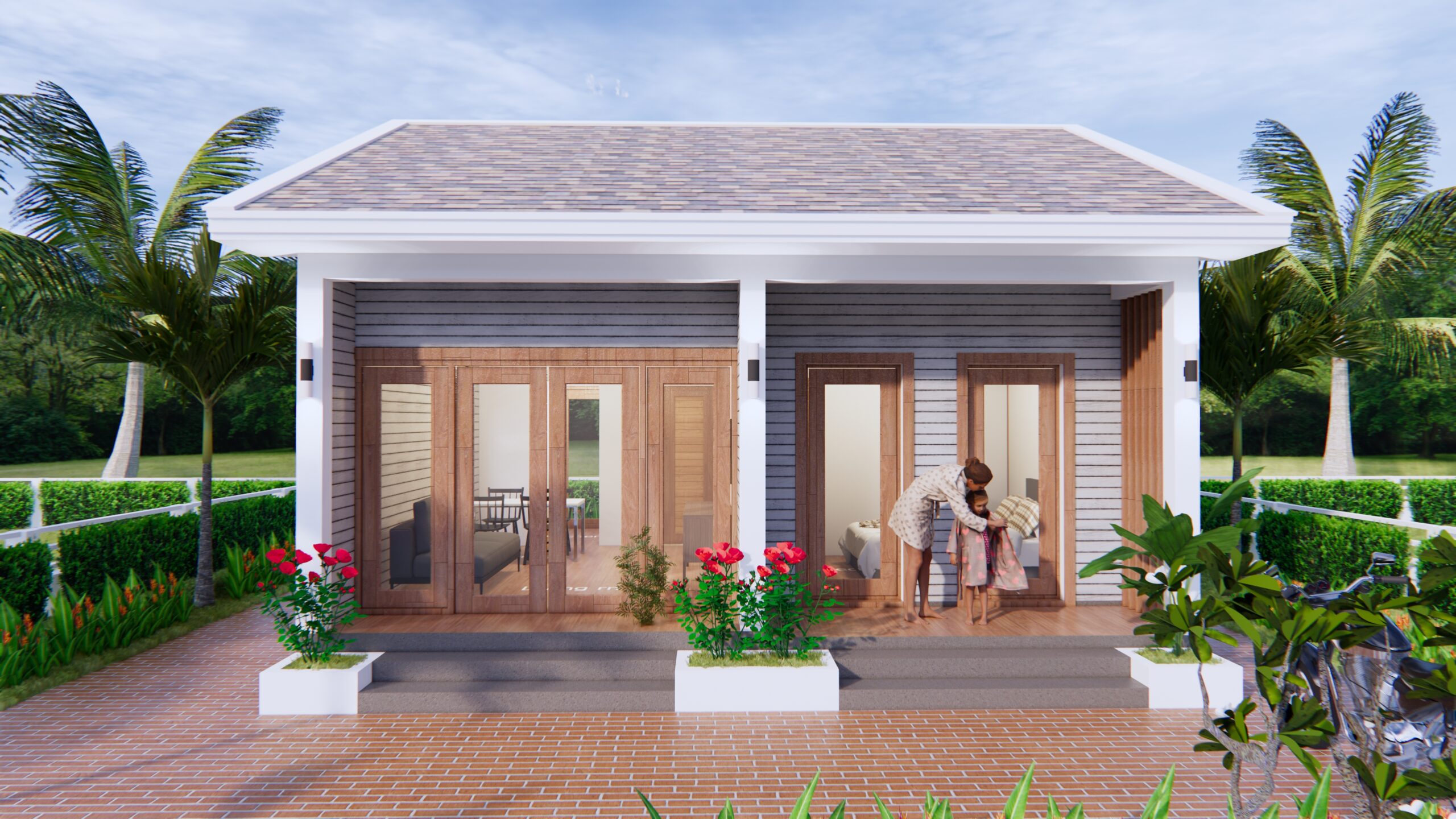

The Elevation 3d:

The PDF Layout Plans:

Buy this house plan:

This is a PDF Plan available for Instant Download.

1-Bedroom 1-Baths home with mini washer/dryer room.

Building size: 23 feet wide, 23 feet deep. 7×7 meter 1 floor

Roof Type: Gable roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

Cross Section plans

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
