Small House Plan 8×11 Meter 3 Beds Small Terrace

Original price was: $59.99.Current price is: $9.99.

Buy this: Small House Plan 8×11 Meter
-PDF Layout Detailing floor plan with dimension
-PDF Front, Back, Left, and Right Elevation Plan with dimension. Section
-Google Sketchup 2019 file
-AutoCad 2018 files

Delivery Instant Download

If you don’t get it contact tsophoat@gmail.com

*Program We used: Autocad 2018 and Sketchup 2019

Click Here to Download the Sample Plan

SKU: 2082845913354 Categories: , , Tag:

Description

Small House Plan 8×11 Meter 3 Beds 2 bathrooms with Small Terrace PDF Plan. This villa is modeling by SAM-ARCHITECT With 1 stories level. It’s has 3 bedrooms. Est. Price around 20-30k usd construction only, furniture not include.

Small House Plan 8×11 Ground Floor Plans Has:

This Small house design car Parking is out side of the house. A nice Terrace entrance in front of the house (2×4 meters 13×6.5 Feet). When we are going from front door,  a Living (4×3.5 meter, 13×11.5 Feet) is very perfect for this house it is nice and modern. Brightly dining area with Kitchen (4×3.2 meter 13×10.5 Feet) open space to the living room, it is beautiful. Small wash and dry room (2.7×2.4 meter, 13×10.5 Feet), include small storage. A multi Bathroom size (1.2×2.2 meters, 7×7.5 Feet).

The Master Bedroom size is (4×3 meters, 13×10 Feet), it have a big glass window with a queen size bed, Makeup desk and closet , attached with bathroom (1.2×2.2 meters, 7×7.5 Feet). Bedroom 2 size (2.8×3.5 meters, 9×11 Feet), Bedroom 3 size (2.8×2.5 meters, 9×8 Feet).

Small House Plan 8x11 Meter 3 Beds with Small Terrace floor plan

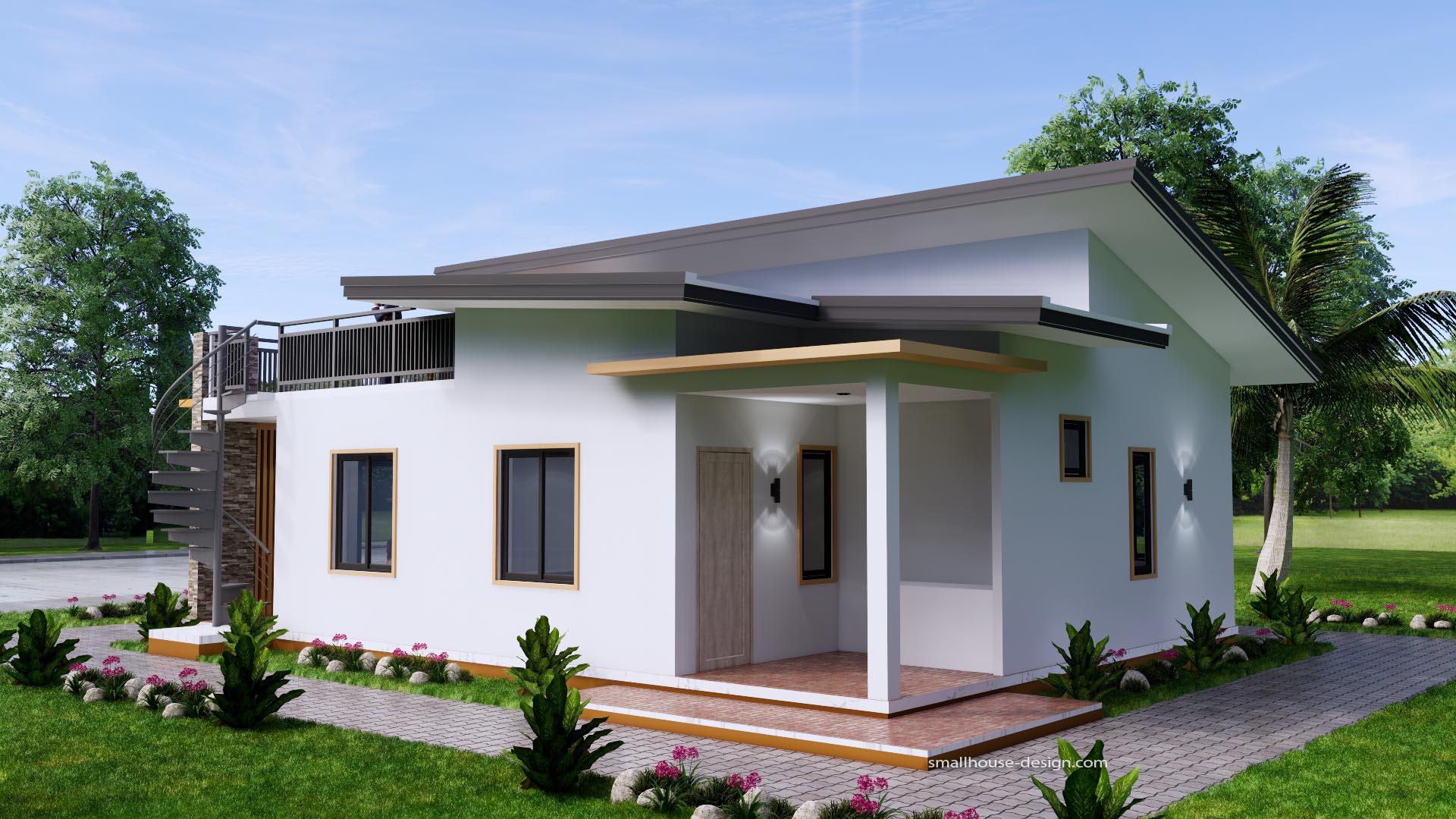

Exterior Small House Plan 8×11:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

Small House Plan 8x11 Meter 3 Beds with Small Terrace 3d 2

The Shed Roof Tile:

Finally, The Shed roof type is made from cement that cover above Gypsum board ceiling . It is make the house look simple and modern.

Small House Plan 8x11 Meter 3 Beds with Small Terrace 3d 4

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

House Short Description:

Ground floor:
-Car Park is out side of the house
-Living room
-Kitchen and Dinning
-Storage and washing room
-3 Bedrooms
-2 bathrooms

First floor:
-Concrete Terrace Roof and Shed roof

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

The 3D Bird View:

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.



The Elevation 3d:

The PDF Layout Plans:

Small House Plan 8x11 Meter 3 Beds with Small Terrace all floor plan

Buy this house plan:

This is a PDF Plan available for Instant Download.

3-Bedrooms 2-Baths home with mini washer/dryer room.

Building size: 26 feet wide, 36 feet deep. 8×11 meter 1 floor

Roof Type: Shed roof with Slap concrete (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.

PLANS INCLUDE:

Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

Cross Section plans

Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.

CUSTOM PLANS:

Unfortunately I’m unable to do custom plans at this time.

DISCLAIMER:

These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
